I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 600kg High Load-Bearing + Steel Structure, Durable and Tough:Integrally welded from Q235 low-carbon steel, the main frame thickness is 5mm, with a tensile strength of 375MPa. The frame deformation is ≤0.5mm under 600kg rated load, and there is no bending or fracture risk even under short-term 700kg overload pressure; compared with ordinary cast iron lifts, the impact resistance is increased by 40%, and it can lift 200L fully loaded oil drums (about 180-200kg) for a long time without worrying about insufficient structural strength, with a service life of more than 8 years.

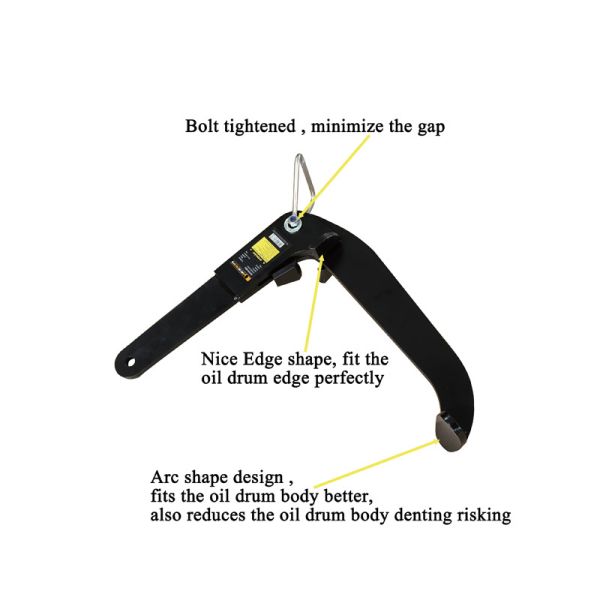

2. Exclusive Clamping System, No Oil Drum Slipping During Lifting:Equipped with a unique anti-slip clamping system, which is fixed by double arc-shaped fitting arms and edge hooks — the arc-shaped arms fit the curvature of the oil drum body (refer to the arc design in the image), increasing the contact area with the drum body (contact area ≥200cm²) with a friction coefficient of ≥0.85; the edge hooks accurately fit the top edge of the oil drum, and with the bolt fastening adjustment component, the fitting gap can be reduced to within 1mm. Even if the drum surface has slight oil stains, it can be firmly clamped, eliminating the risk of oil drum slipping during lifting, and the safety factor is far higher than that of ordinary hook-type lifts.
3. Arc Design + Powder Coating, Anti-Damage and Anti-Rust:The fitting arms adopt an integrated arc design, which fully matches the curvature of the oil drum body. During lifting, the pressure is evenly distributed on the drum body, avoiding drum denting caused by local pressure (especially suitable for thin steel oil drums); the baked-in powder coating thickness is 60μm, with no rust in the 72-hour salt spray test. Even when used in humid warehouse environments and corrosive atmospheres in chemical parks, there is no rust or coating peeling, which not only protects the lift itself but also prevents rust impurities from contaminating the oil drum.
4. Multi-Equipment Compatibility, Convenient and Efficient Operation:Designed with a universal lifting interface, it can be directly connected to forklift forks, crane hooks, and electric hoist hooks without additional adapters, and assembly with lifting equipment can be completed within 1 minute; no professional operator is required, and ordinary workers only need to fit the lift to the oil drum and tighten the fixing bolts to start lifting. Compared with traditional manual oil drum handling (requiring 2-3 people to cooperate), the efficiency is increased by 3 times, greatly reducing labor costs.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Oil Drum Transfer in Factory Workshops:When mechanical processing and automobile manufacturing workshops need to transfer 200L lubricating oil drums, this lift is used with forklifts for lifting — the arc-shaped arms fit the drum body to prevent denting, and the clamping system avoids oil drum slipping, which can quickly transfer oil drums from the warehouse to the oil filling point of the production line; the 600kg load-bearing fully covers the weight of fully loaded oil drums, and the powder coating is resistant to oil pollution corrosion in the workshop, adapting to the "high-frequency, short-distance" oil drum handling needs of the workshop.
2. Oil Drum Stacking in Warehousing and Logistics:When large warehouses store oil drums, it is necessary to stack them to 2-3 layers to save space. The arc design and clamping system of the lift can ensure stable and non-shaking oil drum lifting, and accurately align with the lower oil drums for stacking; the bolt fastening adjustment function reduces the fitting gap, avoiding drum deviation and dumping after stacking, adapting to the "high-density, safe stacking" warehouse scenario and improving warehouse space utilization.
3. Hazardous Chemical Handling in Chemical Parks:When transporting flammable and corrosive liquid oil drums (such as diesel and chemical solvent drums) in chemical parks, the tight clamping system of the lift can eliminate the risk of oil drum tilting and leakage. The high-strength steel and powder coating are resistant to chemical corrosion, avoiding lift damage caused by corrosion; used with cranes, it can realize long-distance and high-altitude safe transfer of oil drums, adapting to the "high-risk, high-demand" chemical handling scenario and ensuring operation safety.
4. Oil Drum Replenishment at Gas Stations:When gas stations need to replenish 200L gasoline and diesel drums, the lift is used with small cranes for lifting. The edge hooks accurately fit the top edge of the oil drum, and the arc-shaped arms protect the drum body from deformation, which can quickly transfer oil drums from the distribution vehicle to the gas station oil storage area; the operation is convenient without multi-person cooperation, and one person can complete the lifting, adapting to the "fast replenishment, limited space" gas station scenario.

IV. Frequently Asked Questions (FAQ)

Q1:Can the 600kg load capacity adapt to a fully loaded 200L oil drum weighing 200kg?

Q2:The surface of plastic oil drums is relatively smooth, can the lift clamp them stably?

Q3:How to adjust the lift to adapt to oil drums of different diameters?

Q4:After long-term use, the surface coating is worn, how to maintain anti-rust?
