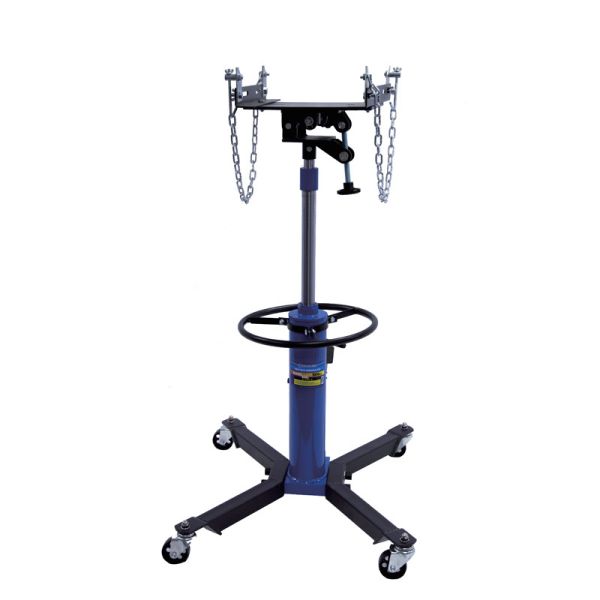

YD05-002A 0.5T Compact Transmission Jack Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 500kg Load-Bearing + Steel Frame, Stable Support for Family Car Gearboxes:The overall frame is made of Q235 low-carbon steel, with the main load-bearing rod thickness of 8mm. The welded joints are fully welded, reinforced and polished, with a tensile strength of 375MPa. The maximum deformation of the frame is only 0.2mm under 500kg rated load, which can stably support family car gearboxes (about 120-250kg) and light SUV gearboxes (about 200-400kg); the frame surface is treated with phosphating rust removal + electrostatic painting, with a coating thickness of 60μm, no rust in the 48-hour salt spray test, and it can avoid rust and corrosion even in long-term contact with transmission oil stains, with a service life of more than 8 years.
2. 820-1768mm Lifting Range + Adjustable Platform, Multi-Scenario Adaptation:The lifting range covers 820mm (for low-chassis sedans) to 1768mm (for high-chassis SUVs), which can accurately match the chassis height whether disassembling the gearbox of a low-slung sedan (e.g., Volkswagen Lamando) or lifting the gearbox of a compact SUV (e.g., Honda XR-V); the 250×362mm lifting platform supports front-rear/left-right fine adjustment (adjustment range ±50mm), and can adapt to the transmission oil pan shapes of different brand models (e.g., flat bottom, curved bottom). The platform adaptation rate is over 98%, no additional wooden pads are needed, and gearbox tilting is avoided.
3. Load Chains + Anti-Slip Pad, Safe Fixation Without Risk:Equipped with 2 high-strength load control chains (each with a load-bearing capacity of ≥300kg), which can be buckled on the platform hooks around the transmission housing, firmly fixing the transmission on the platform. The lateral shaking is ≤1°, avoiding transmission slipping during lifting or maintenance; the platform surface is pasted with a 3mm thick rubber anti-slip pad with a friction coefficient of ≥0.9, further enhancing the fit between the transmission and the platform. Even when operating at an inclined angle (≤15°), there is no sliding risk, and the safety factor is increased by 100% compared with the chainless design.
4. 4 Swivel Castors + Compact Design, Flexible Movement and Space-Saving:The bottom is equipped with 4 swivel castors (70mm wheel diameter, 2 with brakes), the noise is ≤55 decibels when pushing, and it can be easily moved to any workstation in the maintenance workshop. After brake locking, the anti-slip coefficient is ≥0.95, and there is no sliding even when carrying a fully loaded transmission; the overall storage size is only 490×310×770mm (referenced from carton size), which can be stored in the repair shop tool room and personal garage corner, occupying 40% less space than traditional large transmission jacks, balancing "mobility" and "storage convenience".

III. Application Scenarios (APPLICATION SCENARIOS)

1. Family Car Gearbox Replacement in Auto Repair Shops:When repair shops replace gearboxes for RWD family cars (e.g., BMW 3 Series, Toyota Reiz), the vehicle GVM ＜ 2000kg, and the jack adaptation is fully satisfied; place the gearbox on the adjustable platform, fix it with load chains, lift it from 820mm to the height aligned with the engine (approx. 1500mm), push the castors to the workstation, and lock the brakes for stable disassembly and assembly, adapting to the needs of "efficient batch maintenance", shortening the replacement time from 4 hours to 2.5 hours.
2. FWD SUV Gearbox Maintenance in Auto Maintenance Stores:When auto maintenance stores repair gearboxes for FWD compact SUVs (e.g., Haval H6, Changan CS75), the transmission weight is about 350kg, and the 500kg load-bearing capacity is fully sufficient; adjust the platform to fit the oil pan shape, extend the minimum height of 820mm under the chassis, and lift it to 1700mm to facilitate valve body disassembly and gear set inspection; the load chains prevent transmission shaking, and slowly lower and reset after maintenance, adapting to the scenario of "precise maintenance and safe operation".
3. Home Maintenance by Individual Auto Repair Enthusiasts:When individuals perform minor transmission fault maintenance (e.g., replacing transmission oil, inspecting seals) on their own FWD sedans (e.g., Honda Civic, Nissan Sylphy), the 52kg net weight is convenient for single-person carrying to the garage; the minimum height of 820mm is compatible with the distance from the garage ground to the chassis, the adjustable platform accurately fits the transmission, and the load chains fix it without worrying about slipping, solving the pain point of "no professional fixing tools for individual maintenance".
4. Transmission Auxiliary Cleaning in Auto Beauty Shops:When beauty shops perform transmission housing cleaning and rust prevention for high-end family cars (e.g., Mercedes-Benz C-Class, Audi A4L), use the jack to lift the transmission away from the chassis (to 1200mm), the adjustable platform avoids scratching the housing paint, and after the load chains are fixed, technicians can fully clean the housing oil stains, adapting to the scenario of "fine care and non-destructive operation".

IV. Frequently Asked Questions (FAQ)

Q1:Can it adapt to the gearbox of a FWD SUV with GVM=1900kg?

Q2:How does the adjustable platform adapt to transmission oil pans of different shapes?
