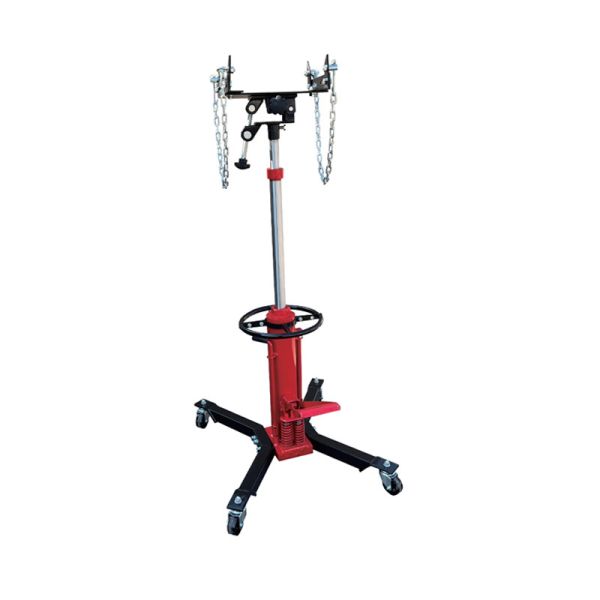

YD05-002B 0.5T Compact Transmission Jack Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 500kg Load-Bearing + Steel Frame, Tough and Durable:The overall frame is made of Q235 low-carbon steel, with the main load-bearing rod thickness of 8mm. Key welded joints are fully welded, reinforced, and tested by flaw detection, with a tensile strength of 375MPa. The maximum deformation of the frame is only 0.2mm under 500kg rated load, which can stably support family car transmissions (about 120-250kg) and compact SUV transmissions (about 200-450kg); the frame surface is treated with phosphating rust removal + electrostatic painting, with a coating thickness of 60μm, no rust in the 48-hour salt spray test, and no rust even in long-term contact with transmission oil stains, with a service life of more than 8 years.
2. 340×240mm Large Platform + Adjustable Design, Multi-Transmission Adaptation:Compared with the conventional 250×200mm platform of ordinary jacks, the 340×240mm platform of this product has a 36% larger area, which can directly carry larger-size transmissions (e.g., Volkswagen DSG 7-speed transmission, Honda CVT transmission); the platform supports front-rear ±40mm and left-right ±30mm fine adjustment, which can adapt to the transmission oil pan shapes of different brand models (flat bottom, curved bottom, with convex structure) without additional wooden pads or adapters. The platform adaptation rate is over 99%, greatly reducing the preparation time before disassembly and assembly.
3. 820-1768mm Wide Lifting Range, Full Coverage of High and Low Chassis:The minimum height of 820mm can easily reach under the chassis of low-slung sedans (e.g., Volkswagen Lamando, Honda Civic) to avoid scratching the chassis; the maximum height of 1768mm can accurately align with the transmission installation position of compact SUVs (e.g., Haval H6, Geely Boyue) without repeatedly adjusting the vehicle height; the lifting speed is about 80mm/min, which can be operated at a constant speed through the manual rocker to accurately control the lifting height with an error of ≤5mm, meeting the precise alignment needs of the transmission and engine.
4. Load Chains + Anti-Slip Pad + Swivel Castors, Safe and Flexible:Equipped with 2 high-strength load control chains (single chain load-bearing ≥300kg), which can be buckled on the platform hooks around the transmission housing, with a lateral shaking of ≤1°, completely eliminating the risk of transmission slipping during lifting; the platform surface is pasted with a 3mm thick rubber anti-slip pad with a friction coefficient of ≥0.9, further enhancing the fit between the transmission and the platform; the bottom is equipped with 4 swivel castors (70mm wheel diameter, 2 with brakes), with a noise of ≤55 decibels when pushing, which can be easily moved to any workstation in the maintenance workshop. After brake locking, the anti-slip coefficient is ≥0.95, with no sliding even when fully loaded.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Family Car Transmission Replacement in Auto Repair Shops:When repair shops replace transmissions for family cars (e.g., Toyota Camry, Nissan Sylphy), the 500kg load-bearing capacity fully covers the transmission weight; the 340×240mm large platform directly carries the transmission without additional adapters; the minimum height of 820mm reaches under the chassis, and it is lifted to 1500mm to align with the engine. After pushing the castors to the workstation and locking, technicians can complete disassembly and assembly alone, shortening the replacement time from 3.5 hours to 2 hours, adapting to the needs of "efficient batch maintenance".
2. Compact SUV Transmission Maintenance in Community Auto Maintenance Stores:When community auto maintenance stores repair transmissions for compact SUVs (e.g., Changan CS75 PLUS, BYD Song Pro), the transmission weight is about 400kg, and the jack supports it stably; the adjustable platform adapts to the large-size oil pan of the SUV transmission, and after fixing with load chains, it is lifted to 1600mm to facilitate valve body disassembly and gear set inspection; after maintenance, it is slowly lowered through the pressure relief valve to avoid transmission collision with the chassis, adapting to the scenario of "precise maintenance and safe operation".
3. Home Maintenance by Individual Auto Repair Enthusiasts:When individuals replace transmission oil and inspect seals for their own cars (e.g., Honda Fit, Volkswagen Lavida), the 52kg net weight is convenient for single-person carrying to the garage; the minimum height of 820mm is compatible with the distance from the garage ground to the chassis, the 340×240mm platform easily places the transmission, and the load chains fix it without worrying about slipping, solving the pain point of "no professional support tools for individual maintenance" and making home maintenance safer.
4. Teaching Practice in Auto Repair Training Institutions:When auto repair training institutions use it for transmission disassembly and assembly teaching, the large platform is convenient for students to observe the transmission structure, and the adjustable design can demonstrate the adaptation method of transmissions of different models; the dual safety protection of load chains and anti-slip pads can avoid equipment damage caused by students' operation errors, adapting to the scenario of "teaching demonstration and safe practice" and improving teaching efficiency.

IV. Frequently Asked Questions (FAQ)

Q1:Can the 340×240mm platform adapt to the larger-size transmission of compact SUVs?

Q2:If the hydraulic system has lifting jams, how to troubleshoot and solve it?
