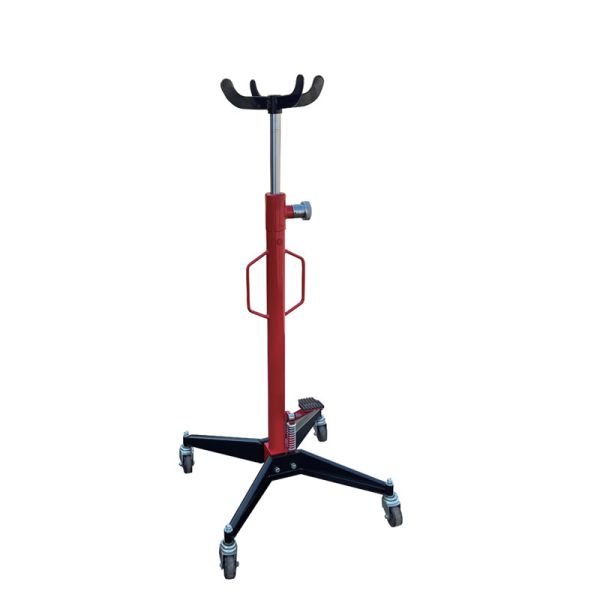

0.5T Compact Transmission Jack with Optional Compact Adaptor Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 0.5T Precise Load-Bearing, Stable Support for Small and Medium-Sized Components:Adopting a single-cylinder hydraulic system with a hydraulic cylinder inner diameter of 32mm and a working pressure of 8MPa, the hydraulic system has no leakage under 0.5T rated load, and the support platform deformation is ≤0.2mm, which can stably support family car gearboxes (about 100-200kg), small and medium-sized motors (about 80-150kg), couplings (about 50-100kg), and even small-sized gearboxes of light commercial vehicles (about 200-500kg); the support platform is equipped with anti-slip rubber pads with a friction coefficient of ≥0.9 to avoid component sliding. Compared with ordinary mechanical jacks, the load-bearing stability is increased by 40%.
2. Foot Pedal Lifting, Efficient and Labor-Saving Operation:Innovative foot pedal operation design, no manual rocker needed — step on the lifting pedal, and the platform can be raised from 1100mm to 1900mm in 10 seconds (lifting speed approx. 80mm/sec); pull the side pressure relief valve, and the platform slowly lowers (lowering speed approx. 50mm/sec). A single person can complete the lifting operation. Compared with manual jacks, the disassembly and assembly efficiency is increased by 60%; the hydraulic system is equipped with an overload protection device, which automatically relieves pressure when the load exceeds 550kg (10% safety margin) to avoid equipment damage, balancing "efficiency" and "safety".
3. Large-Diameter Wheels + Compact Design, Flexible Movement Without Occupying Space:The bottom is equipped with 4 large-diameter swivel wheels (120mm wheel diameter), 2 with brake locking function. The pushing resistance is ≤8N, and it can be easily moved to any workstation in the maintenance workshop, even without jamming on oily ground; the overall size of the jack is compact (approx. 80×25×110cm when not lifted, inferred from the package), and it can be placed against the wall for storage, occupying only 0.22㎡ of space, which is 50% less than traditional large transmission jacks, adapting to the needs of "compact space and multi-workstation scheduling" in repair shops.
4. Optional Adaptor, Compatible with Multi-Size Components:An optional compact adaptor can be matched, which is connected to the jack support platform through multiple sets of adaptive buckles, and can be compatible with gearboxes/motors with different bolt hole positions and non-standard sizes — for example, when installing a Honda Fit CVT gearbox (small size), use the adaptor to reduce the support spacing; when disassembling a Volkswagen Lavida 6AT gearbox (medium size), expand the adaptor buckle position; after adaptation, the fitting degree between the component and the support platform reaches 98%, no additional wooden pads are needed to avoid component tilting. One jack + adaptor can replace 3 dedicated tools, reducing procurement costs.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Family Car Gearbox Disassembly in Auto Repair Shops:When repair shops replace gearboxes for family cars (e.g., Toyota Corolla, Honda Civic), the jack lifts the gearbox from 1100mm to the height aligned with the engine (approx. 1500mm), and foot pedal operation does not require assistance; large-diameter wheels are pushed to the workstation, and the brake is locked for stable support, adapting to the needs of "single-person efficient disassembly and assembly", shortening the gearbox replacement time from 3 hours to 1.5 hours.
2. Motor/Coupling Maintenance in Auto Maintenance Stores:When auto maintenance stores repair production equipment motors (approx. 120kg) for small enterprises, the minimum height of 1100mm of the jack can reach the bottom of the equipment, and it can be raised to 1900mm to facilitate the disassembly of motor bolts; if the motor size is special, an optional adaptor is added, and the anti-slip pad prevents the motor from sliding. After maintenance, it slowly lowers and resets, adapting to the "precision maintenance of equipment motors" scenario.
3. Light Commercial Vehicle Gearbox Maintenance:When logistics fleets maintain small-sized gearboxes (approx. 300kg) of light trucks (e.g., Foton Xiangling), the 0.5T load-bearing capacity of the jack is fully sufficient; the maximum height of 1900mm can lift the gearbox away from the chassis, facilitating cleaning of gearbox housing oil stains and replacing seals; large-diameter wheels adapt to the rough ground of the repair shop, with flexible movement, adapting to the needs of "lightweight maintenance of commercial vehicles".
4. Home Maintenance by Individual Auto Repair Enthusiasts:When individuals perform minor gearbox fault maintenance on their own SUVs (e.g., Haval H2), the net weight of 37kg is convenient for single-person carrying to the garage; foot pedal operation does not require effort, and the height of 1100-1900mm is compatible with the distance from the home garage ground to the chassis. After adding an adaptor, the gearbox can be accurately fixed, solving the pain point of "no professional lifting tools for individual maintenance".

IV. Frequently Asked Questions (FAQ)

Q1:Can the 0.5T load capacity adapt to a 480kg light commercial vehicle gearbox?

Q2:How to match the optional adaptor with the jack? Is installation complicated?

Q3:What to do if the jack gets stuck during lifting?
