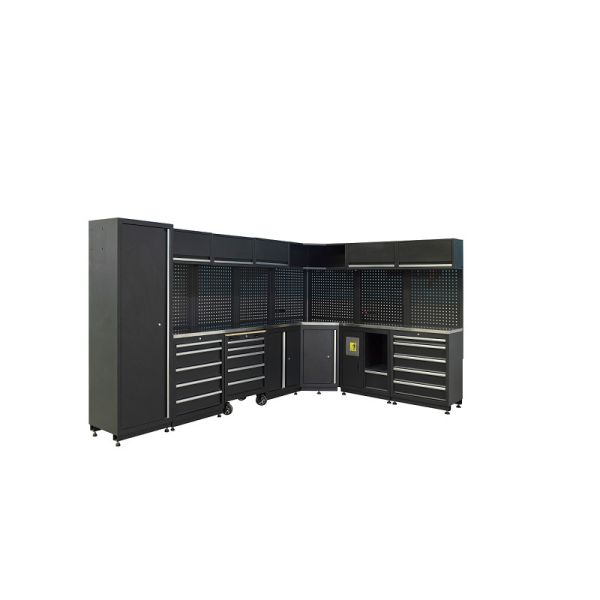

YD27-012 Garage Series Steel Combination Tool Cabinet with Stainless Steel Countertop Workbench Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Table

2. General Adaptability Parameters

II. Product Details (PRODUCT DETAILS)

1. Modular Structure, Integrated Function Integration

(1) Free Assembly of Multiple Modules, Adapting to Different Spaces

• Small Space Scenario (home garage): Choose the "1 countertop + 1 drawer cabinet + 1 hanging panel" combination to meet basic tool storage and operation needs;

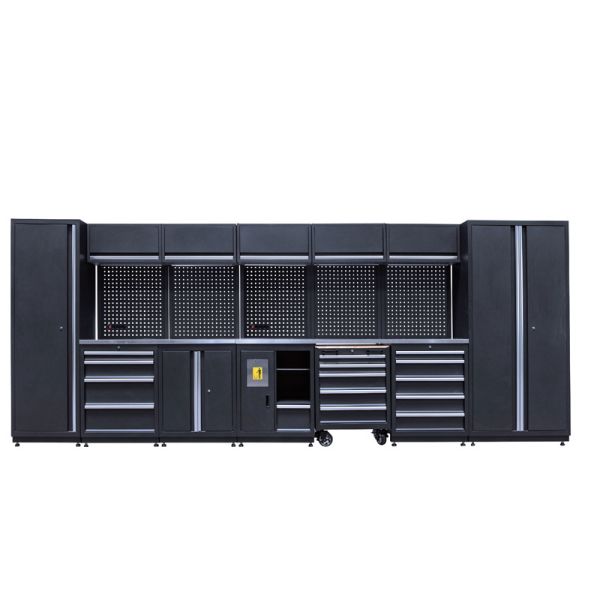

• Medium/Large Space Scenario (auto repair shop): Adopt the standard full set (countertop + wall cabinet + multiple drawer cabinets + multiple hanging panels) to realize "one-stop solution for tool storage - countertop operation - circuit power supply";
• Function Expansion: Side cabinets and laminates can be added additionally. Modules are connected via snaps + screws, with easy assembly (2 people can complete the installation of the standard full set in 2 hours). Modules can be added as needed later, avoiding repeated purchases.

(2) Full Coverage of Core Functions, Improving Operation Efficiency

• Operation Support: The industrial-grade stainless steel countertop is not only oil-resistant but also has high load-bearing capacity (300kg), which can be directly used as a platform for engine disassembly and sheet metal correction without additional support;

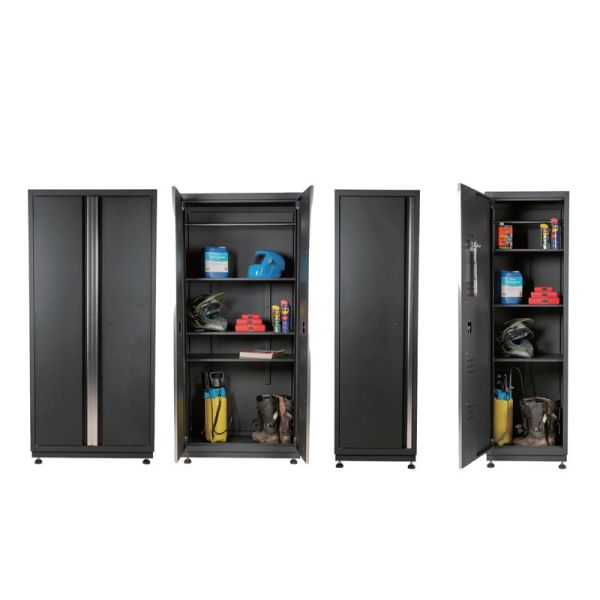

• Tool Storage: From "hanging commonly used tools on panels, storing heavy-duty tools in drawers, storing spare tools in wall cabinets" to "placing large equipment in base cabinets", it realizes the full-life-cycle management of tools. The access time is reduced by 70% compared with traditional storage;

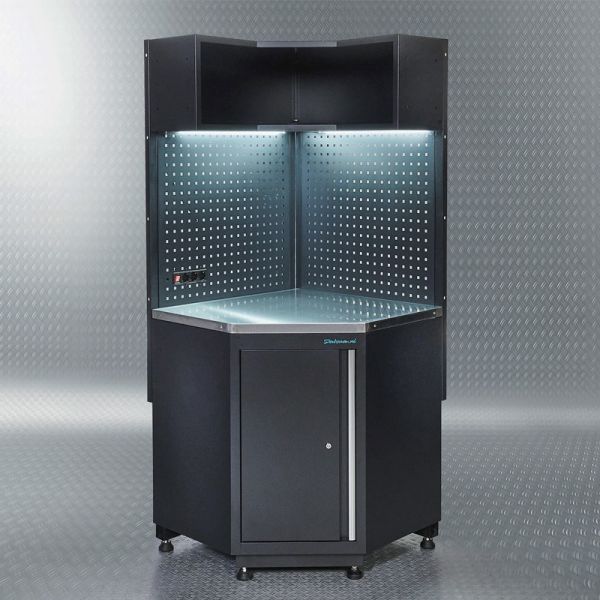

• Auxiliary Functions: Wall cabinet with LED eye-protection light (adapting to low-light operations to avoid eye fatigue), gas spring opening (wall cabinet door automatically supports after opening, freeing hands), and hanging panel sockets (direct power supply for electric tools without external extension cords). These detailed designs improve operation convenience.

2. High-Quality Materials & Craftsmanship, Maximum Durability

(1) Both Structural Strength and Protection

• Welded Steel Cabinet: Made of high-quality SPCC steel plate through welding, with no false welding or missing welding at the cabinet connections. The load-bearing frame is equipped with reinforcing ribs (spacing 15-20cm). Even if 300kg heavy objects are placed on the countertop, the cabinet has no tilting or deformation;
• Detailed Protection: The aluminum handle decorative strips have a smooth surface, oil-resistant and scratch-resistant (no marks from key scratches); the electrostatic powder coating covers the inside and outside of the cabinet (including the inner side of drawers and the top of wall cabinets), with no missing coating. There is no rust even with long-term contact with engine oil;
• Safety Design: The full cabinet is equipped with security locks (1 set each for base cabinet and tall cabinet, with universal keys) to prevent wrong taking and loss of tools; the drawer cabinet is equipped with brake swivel casters (smooth pushing, no displacement after braking); the hanging panel sockets are equipped with safety protective covers (dust-proof and anti-miscontact).

(2) Humanized Details, Enhanced User Experience

• Smooth Drawers: Drawers are equipped with high-quality ball slide rails (pull resistance ≤8N). Even when fully loaded with 25kg tools, they can be easily pushed by one person. The slide rails are galvanized, with no jamming or rust during long-term use;
• Gas Spring Wall Cabinet: When the wall cabinet door is opened, the gas spring provides uniform support force, with an opening angle of up to 90°. It closes slowly without collision noise, with a service life of more than 10,000 times;
• Standard Hook Holes: The hanging panel adopts international standard hook hole design, compatible with 95% of commercially available standard hooks (e.g., L-shaped hooks, double hooks). No additional customization is required, and hooks can be installed/removed easily (by hand).

3. Scenario-Based Customization, Meeting Diverse Needs

• Socket Customization: European standard sockets (Type C/E) are provided by default. National standard (Type A) and American standard (Type B) specifications can be customized as needed to adapt to the power supply needs of electric tools in different regions;
• Color Customization: Basic color customization is supported (e.g., auto repair shop brand color, factory workshop logo color). The coating color is uniform with no color difference, highly integrating with the scenario style;
• Function Expansion: Countertop fixtures (e.g., heavy vice fixing holes), drawer dividers (for finer tool classification), and wall cabinet partitions (adjustable layers as needed) can be added. OEM services meet special scenarios (e.g., graduated countertops for school training).

III. Application Scenarios (APPLICATION SCENARIOS)

1. Full-Set Tool Management & Operation in Auto Repair Shops (Core Scenario)

1. Module Combination: Each workstation is configured with "1 countertop (4915mm) + 1 wall cabinet (with LED light) + 2 drawer cabinets + 2 hanging panels (with European standard sockets)". Commonly used tool hooks are installed on the hanging panels, and heavy-duty tools are stored in the drawer cabinets in classification;
2. Daily Operation: Technicians place the engine block (approx. 40kg) on the countertop, fix it with a vice for disassembly; take the electric angle grinder from the hanging panel (directly powered by the hanging panel socket), take the 25kg hydraulic wrench from the drawer cabinet, and turn on the wall cabinet LED light (adapting to low-light areas in the workshop); during the operation interval, wipe off engine oil splashed on the countertop with a rag for cleaning;
3. Tool Management: Lock the base cabinet and tall cabinet security locks before getting off work to prevent tool loss; push the drawer cabinet to the corner for storage to save workstation space;
   Result: With modular storage and integrated operation, the maintenance efficiency is increased by 85% compared with the traditional "workbench + scattered tool cabinets", the tool loss rate is reduced by 98%, and the workstation space utilization rate is increased by 60%.

2. Tool Organization & Light Maintenance in Home Garages (Scenario 2)

1. Streamlined Combination: Choose the "1 countertop (2400mm) + 1 drawer cabinet (5 drawers) + 1 hanging panel (with national standard sockets)". Place a small vice on the countertop, hang commonly used tools on the hanging panel, and store spare parts and gardening tools in the drawer cabinet;
2. Light Operation: When replacing car tires, place the jack on the countertop (approx. 10kg), take a wrench from the hanging panel to remove tire screws, and plug the electric air pump into the hanging panel socket for power supply; return tools to their positions after operation, and the drawer cabinet is stable without displacement after braking;
3. Space Utilization: Place the combination cabinet against the wall, occupying a wall length of 2.4m and a floor depth of 0.48m, which does not affect garage parking. The remaining space can be used to store gardening supplies;
   Result: With compact combination and multi-function, household tools are stored in order, the efficiency of light maintenance is increased by 60%, and the garage space utilization rate is increased by 50%.

3. Equipment Maintenance & Part Storage in Factory Workshops (Scenario 3)

1. Standardized Combination: Each workstation is configured with "1 countertop (3600mm) + 1 wall cabinet + 1 base cabinet + 2 hanging panels". Store welders in the base cabinet, spare parts in the wall cabinet, commonly used tools on the hanging panels, and equipment maintenance parts on the countertop;
2. Workshop Operation: When repairing machine tools, place machine gears (approx. 25kg) on the countertop, take socket sets from the drawer cabinet, and plug electric tools into the hanging panel sockets for power supply; blow off dust on the cabinet surface with compressed air (powder coating prevents dust accumulation);
3. Sharing Management: When shared by multiple workstations, distinguish tool ownership through security locks (1 set of keys for each workstation). The drawer cabinet can be pushed and turned over between workstations to improve tool utilization;
   Result: With dust-proof design and sharing adaptation, the workshop maintenance efficiency is increased by 75%, the tool sharing rate is increased by 50%, and the equipment maintenance cost is reduced by 40%.

IV. Frequently Asked Questions (FAQ)

Q1: The standard full-set combination cabinet weighs approximately 380kg. Do professional personnel need to be hired for installation? Is it convenient to handle after disassembly?

1. Installation Difficulty: Although the standard full set is heavy, it can be disassembled into 6-8 independent modules (each module 60-80kg). No professional tools are needed (household wrenches and screwdrivers are sufficient). Assemble according to the installation drawings (modules are fixed with snaps + screws). 2-3 people can complete the installation in 4 hours; if you want to save trouble, you can contact the manufacturer to arrange professional installation (additional fee required);
2. Handling Suggestions: After disassembly, the single module has a moderate weight (60-80kg), which can be lifted by 2 people. It can pass through corridors and elevators (single module dimension approx. 1200×480×600mm, conforming to the width of conventional passages), avoiding the cumbersome problem of overall handling.

Q2: Will there be oil residue on the stainless steel countertop after long-term contact with engine oil? How to clean it to keep it tidy?

1. Material Characteristics: The surface of the industrial-grade stainless steel countertop is brushed and has oil repellency. When liquids such as engine oil and cutting fluid fall on the countertop, they will not penetrate or remain. They can be completely cleaned by wiping with an ordinary rag (or a rag dipped in a small amount of detergent), with no stain marks;
2. Daily Maintenance: It is recommended to clean the countertop in time after each operation (to avoid long-term stay of oil stains). Wipe it with a stainless steel maintenance agent (commercially available general type) once a month to maintain the countertop luster and extend its service life (avoid using steel wool and strong acid cleaners to prevent surface scratches).

Q3: The hanging panel sockets are European standard by default. What conditions are required to customize national standard sockets? Will the cycle be extended?

1. Customization Conditions: Note "national standard sockets" when placing an order (or provide specific socket specifications, such as Type A national standard two-hole/three-hole). No additional fee is required (for single-set customization), and price discounts are available for bulk customization (≥10 sets); if special sockets (e.g., industrial waterproof sockets) are needed, confirm compatibility with the manufacturer in advance;
2. Cycle Difference: The delivery cycle for standard models is 15-20 days, and customized socket models require an additional 3-5 days (including socket procurement and installation adjustment). The manufacturer will provide production progress feedback, which does not affect the use plan of the store/workshop;
3. Quality Assurance: Customized sockets are welded and fixed to the hanging panel, and the wiring complies with safety standards (with ground wire). The rated current of the socket is 10A (adapting to most electric tools). Power-on testing can be conducted during acceptance.

Q4: The brightness of the wall cabinet LED light is insufficient, or the gas spring does not open smoothly. How to deal with it?

1. LED Light Brightness Adjustment: The wall cabinet LED light has a built-in brightness adjustment button (located on the side of the lamp body). Adjust the brightness as needed (50%-100% adjustable); if the brightness is still insufficient, contact after-sales service to apply for replacement of a higher-power lamp bead (provide the product model, cycle 3-5 days);
2. Gas Spring Maintenance: Insufficient smoothness during opening is mostly caused by dust accumulation or insufficient lubrication on the gas spring surface. The treatment steps are: ① Close the wall cabinet and wipe off dust on the gas spring surface with a dry cloth; ② Apply a small amount of silicone-based grease to the gas spring piston rod (avoid using engine oil to prevent corrosion); ③ Open/close the wall cabinet repeatedly 5-6 times to restore smoothness; if the gas spring is damaged (e.g., air leakage), contact after-sales service for replacement (free of charge within the warranty period, purchase certificate required).
