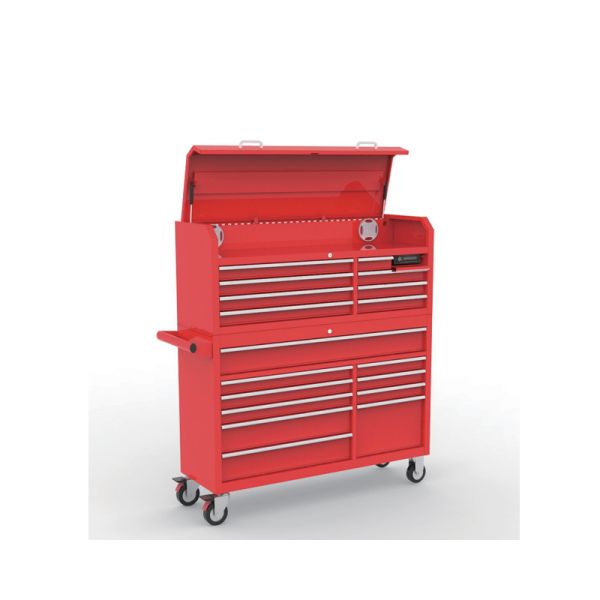

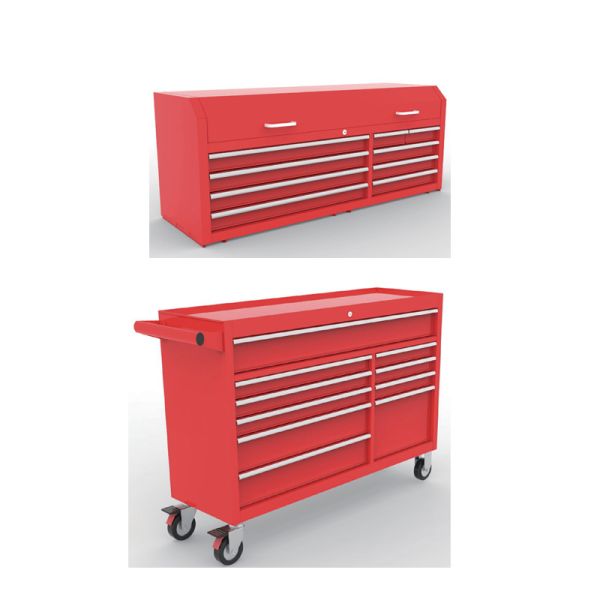

YD27-009 Series Plastic-Steel Heavy-Duty Tool Cabinet Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Table (Including YD27-009A/YB Models)

2. General Adaptability Parameters

II. Product Details (PRODUCT DETAILS)

1. Differentiated Design of Two Models, Accurately Matching Scenario Needs

(1) YD27-009A: Compact Storage, Maximizing Small Space

• 9-Drawer Layered Layout: A combination of 4 large + 3 medium + 2 mini drawers, with a total volume of nearly 200L. It can be partitioned by "tool usage frequency"—commonly used screwdrivers/pliers are placed in mini drawers (within easy reach), wrench sets/electric tools in large drawers. The space utilization rate is 65% higher than that of traditional tool racks;
• Balancing Lightweight and Heavy-Load: With a net weight of 73kg, it can be pushed by 2 people. The 5-inch casters have a rolling resistance of ≤8N, enabling flexible movement between workstation gaps in small workshops (minimum turning radius 1.2m), solving the pain point of "difficult turnover in small spaces".

(2) YD27-009B: Large-Capacity Heavy-Duty, Covering All Categories

• 10-Drawer Multi-Specification Combination: Including extra-long deep drawers (suitable for 1.3m long-handled tools) and medium deep drawers (for storing 45kg bench vices), with a total volume of nearly 400L. It can replace 3-4 sets of traditional tool cabinets, realizing "one-stop storage of light/heavy, long/short, and large/small tools";
• Super Strong Load-Bearing Structure: 1.5mm-thick cabinet body + 1.2mm-thick drawers, combined with 4 reinforcing beams at the bottom, no tilting when fully loaded with 400kg. The 6-inch heavy-duty casters have a single-wheel load-bearing capacity of ≥120kg, meeting the demand of "no shaking under heavy load" in heavy-duty workshops.

2. Plastic-Steel Material + Detailed Craftsmanship, Maximum Durability

(1) Material Advantages: Both Toughness and Protection

• Impact Resistance + Corrosion Resistance: The outer plastic of the plastic-steel composite material resists erosion from engine oil/cutting fluid, while the inner steel enhances impact resistance—YD27-009A can withstand drops from 1m height without denting, and YD27-009B can resist impacts from 20kg tools without deformation. Both have a service life of over 10 years;
• Surface Protection: The powder coating has a hardness of 3H, with no exposure of the base color after daily scratches. YD27-009B is additionally treated with electrostatic spraying, showing no rust after 96-hour salt spray test, and no rust risk when stored in humid warehouses for a long time.

(2) Core Configuration: Balancing Smoothness and Safety

• High-Smoothness Slide Rails: YD27-009A is equipped with 16-inch ball slide rails, and YD27-009B is upgraded to 18-inch thickened ones. The pull resistances are ≤6N/8N respectively. Even when the deep drawer of YD27-009B is fully loaded with 45kg, it can be easily pushed by one person without jamming;
• Safety Design: YD27-009B is equipped with a central flat lock (locking all drawers), and YD27-009A can be optionally equipped with a lock; the corners of both cabinets are rounded to avoid bumps and scratches. The side handles of YD27-009B are made of thickened aluminum alloy, ensuring even force distribution without loosening when pushing.

3. Scenario-Based Storage Design, Tools "in Their Proper Places"

• Partition Logic of YD27-009A: Mini drawers for small parts (screws/gaskets), medium drawers for medium tools (angle grinders/electric drills), and large drawers for heavy-duty tools (15kg socket sets). Clear classification reduces access time by 50%;
• Partition Logic of YD27-009B: Extra-long drawers for long-handled tools over 50cm (crowbars/pipe wrenches), medium deep drawers for 35kg hydraulic jacks, large deep drawers for 45kg bench vices, and shallow drawers for frequently used tools. This realizes "heavy-duty tools not occupying frequently used areas and long tools not being bent".

III. Application Scenarios (APPLICATION SCENARIOS)

1. YD27-009A: Tool Management in Small Auto Repair Shops/Mechanical Workshops

1. Technician Organization: Place screw boxes/gaskets in 2 mini drawers, electric drills/wrenches in 3 medium drawers, and socket sets/small hydraulic tools in 4 large drawers. Lock the cabinet door (optional);
2. 2 people push the tool cabinet to the workstation, lock the casters and take tools. The slide rails are smooth without requiring force. During maintenance intervals, wipe off engine oil spilled on the cabinet with a rag for cleaning;
3. When switching workstations, unlock the casters and push easily, completing turnover in 8 minutes without occupying maintenance space;
   Result: With compact design and flexible movement, it saves 60% of space compared with traditional tool racks, and improves maintenance efficiency by 55%.

2. YD27-009B: Heavy-Duty Management in Heavy-Duty Auto Repair Shops/Construction Machinery Workshops

1. Technician Organization: Place long-handled wrenches in the extra-long drawer, hydraulic jacks in the medium deep drawer, bench vices in the large deep drawer, and frequently used screwdrivers/pliers in the shallow drawer. Lock with the central lock to prevent loss;
2. 2 people push the tool cabinet to the workstation. The 6-inch casters do not slip on the oily floor, and the cabinet remains stable after braking. There is no displacement when taking and placing the 45kg bench vice;
3. After maintenance, put the tools back in place, close the cabinet door for dust-proofing, and push it to the tool room for storage. The powder coating resists oil accumulation;
   Result: With heavy-load capacity and long-tool adaptation, it reduces 2 turnovers compared with traditional heavy-duty tool carts, improves maintenance efficiency by 70%, and reduces technicians' physical consumption by 65%.

3. Series Universal: Bulk Turnover and Inventory in Hardware Warehouses

1. Warehouse managers partition by model: Store small and medium-sized tools in YD27-009A and heavy-duty tools in YD27-009B. Label each drawer with its contents;
2. YD27-009A occupies only 0.63㎡ (1410×450mm) when placed against the wall, and YD27-009B occupies 0.65㎡ (1422×460mm). The space utilization rate is 70% higher than that of traditional shelves;
3. During inventory, check one by one according to the labels. The drawers are clearly classified without searching, and it takes 10/15 minutes to complete the inventory of one YD27-009A/009B respectively;
   Result: With bulk storage and efficient inventory functions, it improves warehouse management efficiency by 80% and reduces the inventory error rate to less than 0.5%.

IV. Frequently Asked Questions (FAQ)

Q1: When YD27-009A/B are fully loaded, can the drawers and casters bear the weight? Will deformation occur?

Q2: YD27-009A has a net weight of 73kg and YD27-009B 120.5kg. Can 2 people push them easily? Are there any labor-saving tips?

1. Posture: 2 people hold the handles on both sides respectively, lean their bodies against the cabinet to use the center of gravity for force application, and push in the direction consistent with the swivel casters to avoid oblique pushing (reducing resistance by 30%);
2. Floor: Prioritize using flat passages. Lay cardboard on oily floors (to enhance friction);
3. Load: Place heavy tools in the middle drawers of YD27-009A, and distribute heavy loads to different drawers of YD27-009B to reduce the offset of the center of gravity and improve stability.

Q3: Is cabinet color and drawer LOGO customization supported for both models? Will the customization cycle be extended?

1. Color: Provide RAL/Pantone color codes. No additional cost for MOQ 50 units. The color error of YD27-009B is ≤ΔE1.5 (no visual difference);
2. LOGO: Laser engraving on aluminum alloy pulls, with a size of ≤60×25mm. No customization fee for MOQ 50 units;
3. Cycle: The delivery cycle for standard models is 7-10 days, and customized models require an additional 3-5 days (including color adjustment/LOGO production), which does not affect the production plan.

Q4: Can drawers of both models be equipped with dividers? What special tools are they suitable for storing?

1. Dividers: Drawers of YD27-009B can be equipped with aluminum alloy dividers (adjustable spacing 5-400mm), while YD27-009A requires additional customization (MOQ 50 units);
2. Adaptation to Special Tools: YD27-009A is suitable for storing tools ≤30cm (e.g., electric drills), and the extra-long drawer of YD27-009B can store long-handled tools ≤1.3m (e.g., truck tire wrenches), and the medium deep drawer can store cylindrical tools (e.g., hydraulic rods).
