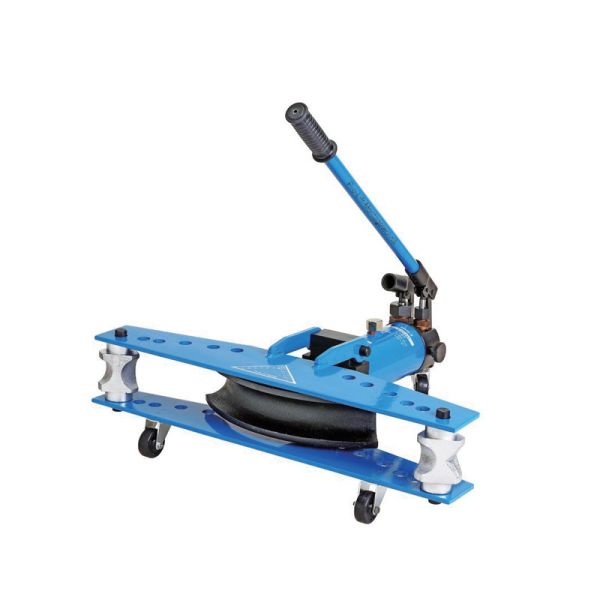

YD12-006 16T Hydraulic Pipe Bending Machine Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 16-Ton Manual Hydraulic Drive, Bends Thick Pipes Without Power
   Adopting pure hydraulic manual drive, no reliance on external power or gas sources, adapting to various non-powered scenarios:

• High Pressure for Thick-Walled Pipes: The 16-ton rated pressure can easily bend round pipes with 2.5-4.5mm wall thickness, such as 2" steel pipes with 4mm wall thickness and 1-1/2" galvanised pipes with 3.5mm wall thickness. Compared with ordinary 10-ton manual pipe benders, its pipe bending capability is increased by 60%; the hydraulic system adopts a sealed structure, with pressure loss ≤3%, and can still maintain stable pressure after 20 consecutive bending cycles. The pipe bending qualification rate is over 98%, with no wrinkles or cracks.
• Pure Manual for Wide Adaptation: Whether it is outdoor pipe emergency repair (no temporary power) or agricultural machinery maintenance in remote areas (no gas source equipment), operation only requires manual operation of the hydraulic pump, avoiding work stoppage due to "lack of power". Its adaptability is far superior to pneumatic or electric pipe benders.

2. 2-Stage Hydraulic Hand Pump, Labor-Saving and Efficient
   Equipped with a 2-stage hydraulic hand pump, optimizing the labor-saving pressing structure and greatly reducing operation intensity:

• 2-Stage Pressure Boost for Labor Saving: The pressing force of the 1st stage pump (low-pressure section) is ≤25N, easily pushing the hydraulic rod for initial movement; the pressing force of the 2nd stage pump (high-pressure section) is ≤40N, saving over 30% more effort than ordinary single-stage manual pumps (pressing force ≥60N). Adult males can operate continuously for 30 minutes without obvious fatigue, solving the problem of "tiring pressing and low efficiency" of traditional manual pipe benders.
• Precise Pressure Control for Accuracy: The advancing speed of the hydraulic rod (5-10mm/s) can be adjusted by controlling the pressing frequency, avoiding pipe deformation caused by sudden pressure rise; combined with the 0°-90° scale on the workbench (accuracy ±1°), the bending angle can be precisely controlled. For example, when a 45° angle is required for home decoration water and electricity, the target angle can be gradually approached by slow pressing, with a deviation ≤0.5°.

3. 3 Swivel Castors + Lightweight, Convenient for Movement and Fixing
   With a net weight of only 49kg and 3 swivel castors with brakes, it balances movement flexibility and fixing stability:

• Flexible Movement Saves Manpower: The 3 swivel castors support 360° steering, with rolling resistance ≤20N when pushed on flat ground. A single person can easily push the equipment to move within the workspace (e.g., from the auto repair shop workstation to the warehouse, taking about 1 minute for a 20-meter distance). Compared with models without castors (requiring 2 people to carry), the movement efficiency is increased by 80%.
• Brake Fixing Ensures Safety: The swivel castors are equipped with independent brake devices. After pressing the brake lever, the locking force is ≥60N, and the equipment does not shift during pipe bending; even on slightly sloped ground (slope ≤2°), it can remain stable after braking, avoiding bending angle deviation or safety hazards caused by equipment sliding.

4. 240mm Long Stroke + Positioning Slots, Precise Bending for Large Pipes

• Long Stroke for Large-Diameter Pipes: The hydraulic rod stroke reaches 240mm, which can fully cover the 90° bending needs of 3" large-diameter round pipes, avoiding "incomplete bending angles and pipe jamming" caused by insufficient stroke. For example, when bending a 2" steel pipe with 4mm wall thickness, 90° bending can be completed with one press, no segmental operation required, and efficiency is increased by 50%.
• Positioning Slots Prevent Deviation: The workbench is equipped with pipe positioning slots (adapting to 1/2"-3" diameters). During bending, the pipe is firmly fixed without left-right deviation or rotation. For example, when bending a 1" copper alloy pipe, the slot fits closely with the pipe, and the roundness retention rate at the bending angle is ≥92%, which does not affect pipe fluidity.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Outdoor Pipe Emergency Repair
   The municipal department repairs the outdoor water supply pipeline of a residential area (using 1-1/2" galvanised pipes with 3.5mm wall thickness), with no power or gas source on-site. The YD12-006 is used: Push it to the repair site via 3 swivel castors and fix it with brakes; install the matching die, and drive it by pressing the 2-stage manual pump, completing 90° pipe bending within 1 minute with 16-ton pressure; no external power required, and 5 damaged pipe replacements are completed within 2 hours, adapting to the "non-powered outdoor emergency repair" scenario.
2. Exhaust Pipe Bending in Small Auto Repair Shops
   A small auto repair shop repairs the exhaust pipe of a family car (1-1/4" stainless steel pipe with 2.8mm wall thickness), requiring a 90° bend to connect to the chassis. The YD12-006 is used: Push it to the maintenance workstation and fix it with brakes; place the exhaust pipe into the positioning slot; slowly press the 2-stage pump to precisely control the bending angle to 90°, with no wrinkles after bending and no air leakage after installation. The maintenance time for a single exhaust pipe is shortened from 15 minutes to 8 minutes, adapting to the "manual pipe bending in small auto repair shops" scenario.
3. Home Decoration Water and Electricity Transformation
   A home decoration worker transforms the kitchen water and electricity of a commercial house (using 1" galvanised pipes with 3mm wall thickness), requiring a 45° bend for pipe direction change. The YD12-006 is used: Push it to the narrow kitchen space and fix it with brakes; set the 45° target angle with reference to the workbench scale, and gradually press the manual pump to complete one-time forming without deviation; the lightweight design allows easy passage through narrow stairwells, adapting to the "small-space work in home decoration" scenario.
4. Oil Pipe Shaping in Agricultural Machinery Repair Stations
   An agricultural machinery repair station repairs the hydraulic oil pipe of a tractor (2" aluminium pipe with 4mm wall thickness), with no power equipment on-site. The YD12-006 is used: Push it to the maintenance table, fix the aluminium pipe in the slot; operate the 2-stage manual pump, and the 16-ton pressure bends the aluminium pipe to 90° stably, with no cracks or deformation; the hydraulic system has no leakage after maintenance, adapting to the "non-powered maintenance of agricultural machinery" scenario.

IV. Frequently Asked Questions (FAQ)

Q1: Can this equipment be used to bend 2" steel pipes with 5mm wall thickness? Will it damage the equipment?

Q2: With a weight of 49kg, can female operators push the equipment up a 10° slope alone?

Q3: The advancing speed of the hydraulic rod is uneven during pipe bending. What is the reason and how to solve it?

Q4: After 1 year of use, the manual pump becomes difficult to press. How to maintain it?
