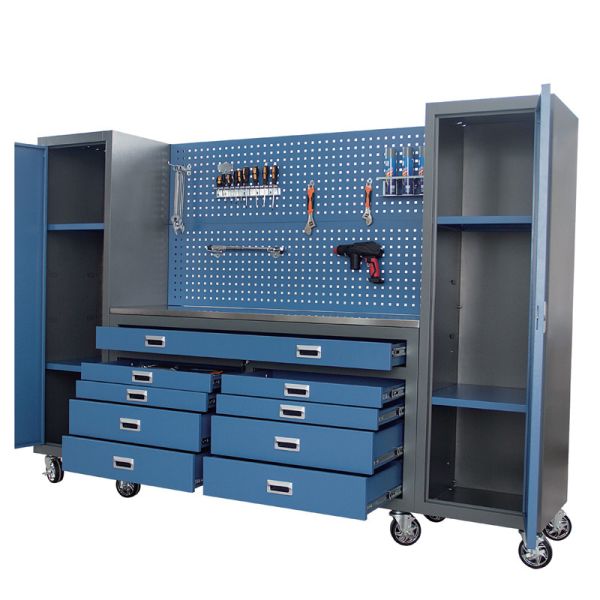

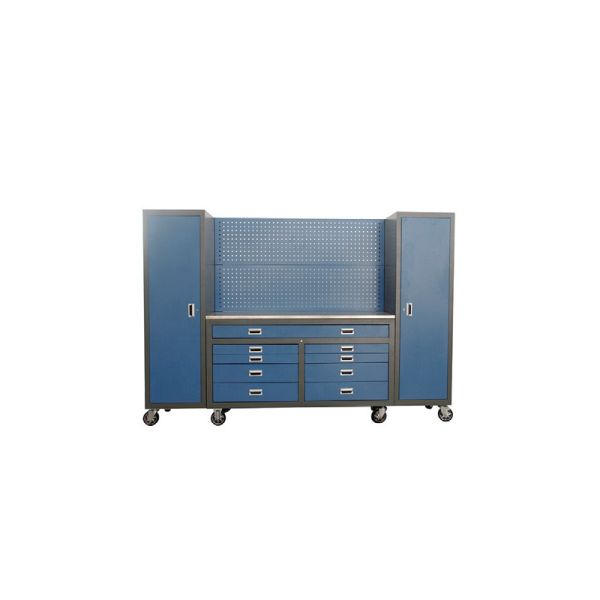

YD27-011 62-Inch Garage Mobile Workbench (with Stainless Steel Top) Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Table

2. General Adaptability Parameters

II. Product Details (PRODUCT DETAILS)

1. Heavy-Load Structure Design, Adapting to High-Intensity Operations

(1) Full Iron Body + Stainless Steel Worktop, Maximum Strength

• Impact Resistance & Load-Bearing: 1.2mm-thick cabinet steel plate + 1.0mm-thick drawer steel plate, combined with reinforcing ribs (horizontal/vertical reinforcing ribs are installed on the top, bottom and sides of the cabinet, with a spacing of 15-20cm), forming a "frame-panel" dual load-bearing structure. The worktop's 500kg load-bearing capacity far exceeds that of ordinary workbenches (approx. 200kg), and it can be directly used as a disassembly platform for auto components without additional support;
• Worktop Characteristics: The stainless steel worktop is not only corrosion-resistant (engine oil and cutting fluid can be cleaned by wiping with a rag), but also wear-resistant (surface hardness up to HB200, no marks from key scratches). There are no indentations after placing heavy equipment for a long time, maintaining a flat operation surface.

(2) Detailed Reinforcement, Safe and Durable

• Drawer Structure: The bottom of the drawer is equipped with 3-4 reinforcing ribs (spacing 20-30cm), and the edges adopt a folding process (no sharp protrusions). Even if the large drawer is fully loaded with 50kg tools, there is no sagging or jamming when pulling;
• Side Cabinet Design: The interior of the side cabinet is equipped with 3 layers of adjustable partitions (spacing can be adjusted as needed). The partitions and the cabinet are fixed with both snaps and screws. There is no tilting when placing 150kg heavy objects, and the partition deformation is ≤2mm (meeting industrial safety standards).

2. Multi-Specification Storage, Tools "Stored in One Stop"

(1) Drawer + Side Cabinet Combination, Full Capacity Coverage

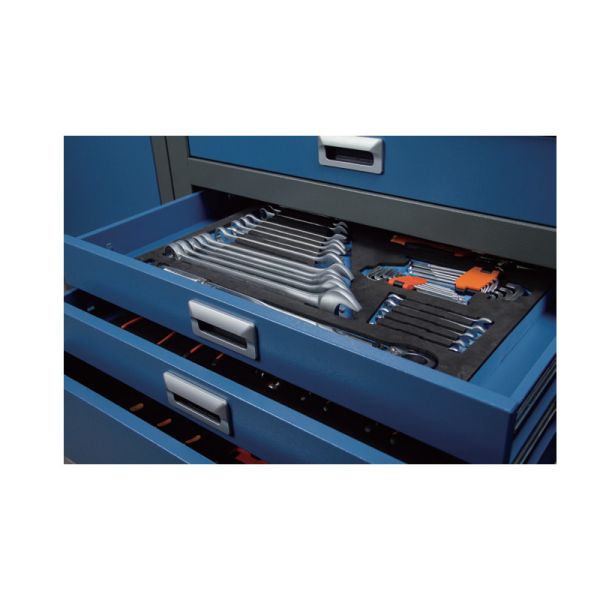

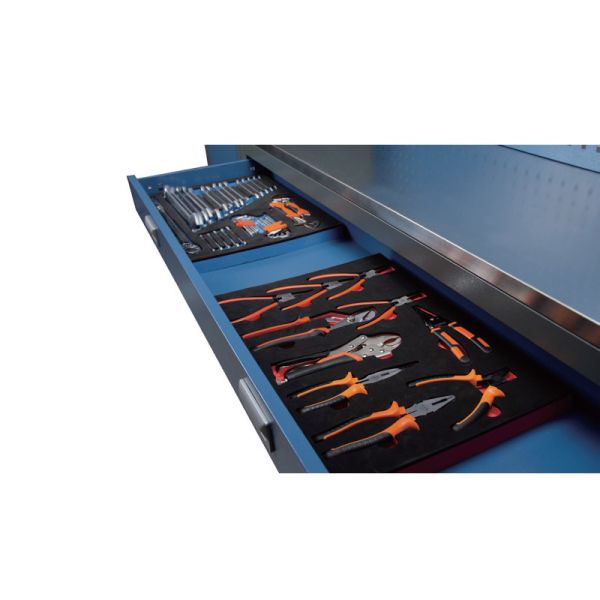

• Drawer Partition Logic: Long drawers are specially used to store "hard-to-store" long-handled tools (e.g., 1.4m sheet metal crowbars, 1.2m pipe wrenches) to avoid tool bending; small drawers are partitioned by "usage frequency"—commonly used screwdrivers and pliers are placed in easily accessible positions, and spare parts are placed inside; large drawers centrally store heavy-duty tools (e.g., 30kg hydraulic wrenches, 25kg socket sets), with EVA liners cut into grooves for fixation to prevent collision noise during movement;
• Side Cabinet Expansion Space: The 500mm-wide side cabinet can store large equipment (e.g., small welders, air compressors) or serve as a "spare tool library". The layered design makes tool classification clearer, and the storage capacity is 3 times that of ordinary workbenches.

(2) BBS Slides + Mute Casters, Enhanced Experience

• Smooth Drawers: BBS slides are a high-end brand in the industry, with a pulling service life of more than 30,000 times (far exceeding 10,000 times of ordinary slides). Even if the long drawer is fully loaded with 40kg tools, it can be easily pushed by one person without jamming or hesitation. The slides are galvanized, with no rust during long-term use;
• Flexible Movement: 4 mute swivel casters (wheel surface made of high-wear rubber) have a rolling noise of ≤65dB (lower than the workshop ambient noise of 75dB) and are equipped with full braking function (after stepping on the brake pedal, the casters are completely locked, and the workbench has no displacement). Even if 500kg heavy objects are placed on the worktop, 2 people can cooperate to turn flexibly, with a minimum turning radius of 2.0m, adapting to shuttle between workshop equipment gaps.

3. Customization and Scenario Adaptation, Meeting Diverse Needs

• Color Customization: Supports any Pantone color or customer brand color, which can be unified with the overall style of the workshop (e.g., 4S shop brand color, school training workshop logo color), enhancing scenario integration;
• Function Expansion: Worktop fixtures (e.g., heavy vice fixing holes), side cabinet hooks (for hanging commonly used tools), and LED lighting (installed above the worktop for low-light operations) can be added as needed. OEM&ODM services meet special scenario needs (e.g., graduated worktops for school training, drawer handles with brand logos for 4S shops).

III. Application Scenarios (APPLICATION SCENARIOS)

1. Heavy-Duty Operations in Auto 4S Shop Repair Workshops (Core Scenario)

1. Pre-Customization: Select the exclusive Pantone color of the brand, add heavy vice fixing holes on the worktop, and adapt the side cabinet layers to hydraulic equipment and spare parts;
2. Daily Operation: Technicians place the engine block (approx. 300kg) on the worktop, fix it with a vice for disassembly; take a 1.2m sheet metal crowbar from the long drawer, a 30kg hydraulic wrench from the large drawer, screwdrivers/pliers from the small drawer, and store spare engine parts in the side cabinet; during the operation interval, wipe off engine oil splashed on the worktop with a rag for cleaning;
3. Workstation Turnover: 2 people cooperate to unlock the casters, push the workbench to another workstation, and it is stable without displacement after braking, with no jamming throughout the process, completing turnover in 15 minutes;
   Result: With heavy-load worktop and full storage design, the repair efficiency is increased by 80% compared with ordinary workbenches, the tool loss rate is reduced by 95%, and the customized brand appearance enhances customer trust.

2. Sheet Metal Work and Tool Management in Garage Repair Shops

1. Tool Organization: Place 1.4m crowbars and 1.2m rulers in the long drawer, 25kg sheet metal hammers and 20kg socket sets in the large drawer, M8-M16 screw boxes and gaskets in the small drawer, and store welders and spare welding wires in the side cabinet layers;
2. Sheet Metal Operation: Place the auto door on the worktop, fix it with worktop fixtures, and technicians correct dents with a sheet metal hammer. The worktop withstands repeated hammering without deformation; after operation, return tools to their positions, and the drawer slides are smooth without forceful pulling;
3. Space Utilization: The workbench with casters can be stored against the wall and pushed to the operation area when needed. The side cabinet storage avoids equipment occupying floor space, increasing the available area of the garage by 60%;
   Result: With impact-resistant worktop and long drawer adaptation, the sheet metal operation efficiency is increased by 70%, tool access time is reduced by 65%, and space utilization is greatly improved.

3. Teaching and Equipment Storage in School Training Workshops

1. Customization and Layout: Laser-engrave scales (e.g., dimension scales, component positioning lines) on the worktop, paste labels on drawers (marking tool names/uses), and store training diagnostic instruments and spare part boxes in the side cabinet layers;
2. Training Teaching: Teachers demonstrate engine disassembly steps on the worktop, and students operate in groups. The worktop load-bearing is sufficient to support the engine (approx. 200kg), and the drawer tools are clearly classified for students to access in order;
3. Cleaning and Maintenance: After training, wipe the worktop and cabinet body with a damp cloth. There is no residual stain on the powder coating and stainless steel surface. The closed design of the side cabinet prevents dust from entering, reducing equipment maintenance costs by 50%;
   Result: With teaching customization and easy-to-clean features, the training efficiency is increased by 60%, students' tool management awareness is enhanced, and the service life of equipment is extended by more than 3 years.

IV. Frequently Asked Questions (FAQ)

Q1: The total weight of the workbench is 448.5kg. Is multi-person cooperation required for movement? Can the casters bear such a heavy weight?

1. Movement Cooperation: The total weight of 448.5kg requires 2-3 people to push together (with the help of side handles). The correct posture is "hold the handles with both hands and lean forward to use body weight for force", avoiding tilting caused by one-sided force; if there is a forklift in the workshop, it can be used to assist in short-distance movement (forklift holes are set on the worktop, requiring customization in advance);
2. Caster Load-Bearing: The casters are heavy-duty special types, with a single caster rated load-bearing ≥200kg, and the total load-bearing of 4 casters ≥800kg (far exceeding the total weight of 448.5kg). The wheel axles are made of 16mm-diameter carbon steel (shear strength ≥750MPa). After a 1.5x rated load (672.75kg) test for 2 hours, the casters have no deformation or breakage and can be used with confidence.

Q2: If there are scratches or oil stains on the stainless steel worktop, how to clean and repair them?

1. Oil Stain Cleaning: Ordinary engine oil, cutting fluid and other oil stains can be removed by wiping with ordinary detergent and a damp cloth. For stubborn stains, dip a small amount of alcohol or industrial cleaner (e.g., degreaser) and wipe, avoiding the use of steel wool (to prevent scratching the surface);
2. Scratch Repair: For slight scratches (depth ≤0.1mm), use a stainless steel brushing cloth (wipe along the brushing direction) to fade them; for deeper scratches (depth ＞0.1mm), first polish with fine sandpaper (800 grit or above), then treat with a brushing cloth, and finally apply stainless steel maintenance agent. More than 90% of the appearance can be restored without affecting use.

Q3: After long-term use, the drawer slides jam. Does BBS slides have after-sales support? How to maintain them by yourself?

1. After-Sales Support: BBS slides enjoy 1-year free replacement and 3-year warranty services. If there is non-human damage (e.g., slide deformation, ball falling off), you can contact the brand after-sales service and provide the model (slides model matching YD27-011) to apply for replacement;
2. Self-Maintenance: Jamming is mostly caused by dust accumulation or insufficient lubrication on the slides. The treatment steps are: ① Pull the drawer out completely, use a brush to clean metal debris and dust in the slides; ② Wipe the slide surface with a dry cloth, and apply lithium-based grease (1-2mm thick, avoiding excessive grease to adhere to dust); ③ Pull the drawer repeatedly 5-6 times to relieve jamming. It is recommended to maintain once every 3 months (once a month for industrial scenarios).

Q4: I want to customize worktop scales and side cabinet hooks. What conditions are required for OEM&ODM services? Will the customization cycle be extended?

1. Customization Conditions: Provide clear customization requirements (e.g., worktop scale style, number/position of hooks); if brand logo engraving is required, provide vector graphics; no additional fees for small-batch customization (3-10 sets), and customization discounts are available for large batches (≥50 sets);
2. Cycle Difference: The delivery cycle for standard models is 15-20 days, and customized models require an additional 5-7 days (including design confirmation, sampling, and production adjustment). The progress can be confirmed with the manufacturer in advance, and production node feedback is provided, which does not affect training/repair plans;
3. Quality Assurance: The quality of customized parts is consistent with that of standard components (e.g., the depth of scale engraving is ≥0.5mm, clear and durable; the load-bearing of hooks is ≥10kg, welded and fixed without loosening). During acceptance, you can check item by item according to customization requirements.
