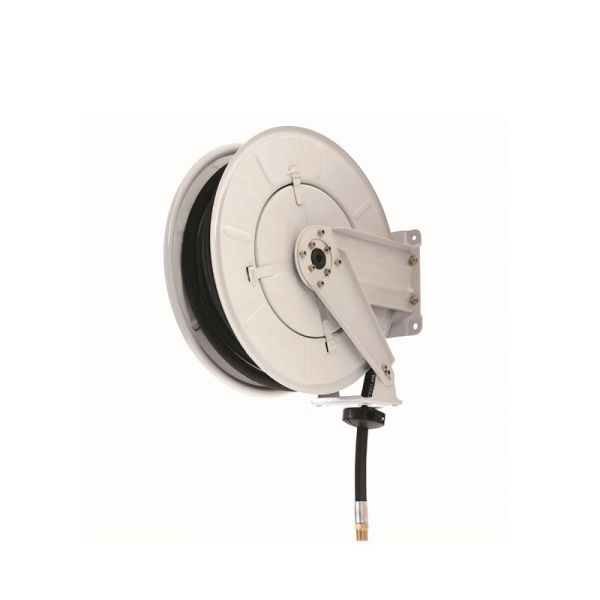

YEEDA YD53-012 to YD53-018 Heavy Duty Retractable Wall-Mounted Motor Oil Hose Reel Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Model-Specific Parameter Summary Table

2. Universal Structural & Functional Specifications

II. Product Details (PRODUCT DETAILS)

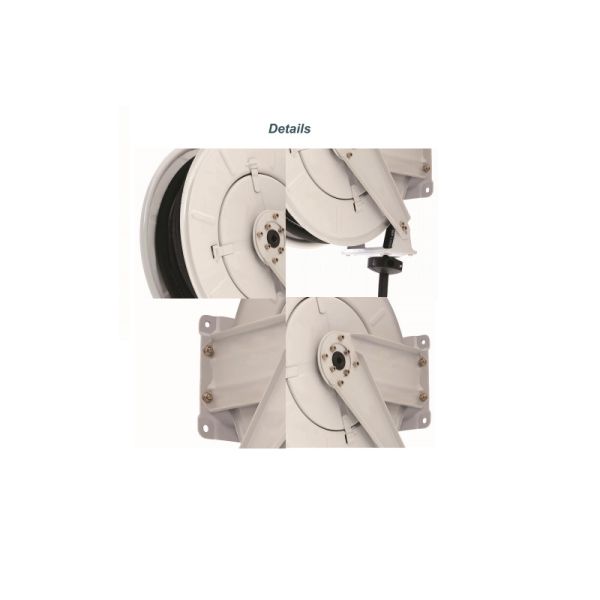

1. Durability & Hose Protection

• 4-Roller Hose Guide & Self-Leveling System: The 4-roller design evenly distributes pressure on the hose during retraction, minimizing friction and extending hose life. The self-leveling system ensures the hose winds up smoothly without kinks—critical for high-pressure hoses (e.g., SAE 100 R2AT in YD53-013) that are prone to damage from uneven winding.
• Heavy-Duty Build: The steel frame and corrosion-resistant coating withstand daily impacts in busy workshops and protect against oil/grease degradation. This durability ensures a service life of 7+ years, outperforming lightweight plastic reels.

2. Flexible Operation & Installation

• 12-Position Ratchet Lock: Unlike basic reels with limited length stops, the 12-position lock lets users fix the 15m hose at any desired length—ideal for tasks requiring precise reach (e.g., lubricating hard-to-access machinery parts). It also prevents the hose from retracting unexpectedly, enhancing operator safety.
• 3 Adjustable Fixed Positions: The reel can be mounted at 3 different heights/angles on the wall, fitting diverse workshop layouts. Wall-mounted design saves floor space, keeping walkways clear of tripping hazards.

3. High-Pressure Compatibility & Versatility

• SAE-Certified Hoses: Each model features SAE 100 R1AT/R2AT or SAE 1100 R2AT hoses, designed for motor oil and grease. The hoses handle pressures from 20 Bar (light lubrication) to 350 Bar (heavy-duty grease transfer), making the reels suitable for everything from automotive oil changes to industrial gearbox maintenance.
• 15m Length: The 15m hose provides ample reach to service multiple pieces of machinery without repositioning the reel—saving time in large workshops or fleet service centers.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Automotive Service Center Oil Changes (YD53-015)

1. Setup: Mount YD53-015 (3/8" I.D., SAE 100 R1AT hose, 15m length) on the workshop wall at a 1.5m height (one of the 3 fixed positions); connect to the oil storage system;


   2. Oil Change: Pull the hose to 2-3m (fixed via ratchet lock) to reach sedan engines, or 4-5m for SUVs; the 3/8" I.D. hose delivers high-flow oil, completing one oil change in ~5 minutes;


   3. Efficiency: 30 oil changes finished in 2.5 hours; the 4-roller guide prevents hose wear from frequent use;


   4. Safety: The ratchet lock keeps the hose stable, avoiding spills during oil transfer.


   Effect: High-flow hose meets daily demand; adjustable length fits all vehicle types; wall-mounted design saves space.

2. Manufacturing Plant Gearbox Lubrication (YD53-013)

1. Setup: Install YD53-013 (SAE 100 R2AT hose, 350 Bar pressure) on the wall near the gearbox area; set the fixed position to 2m height for easy access;


   2. Lubrication: Extend the 15m hose to each gearbox (fixed at 8-10m via ratchet lock); the 350 Bar pressure pushes SAE240 grease into gear teeth;


   3. Durability: The steel frame resists factory dust and impacts; the corrosion-resistant coating protects against grease buildup;


   4. Reliability: The self-leveling system ensures the hose winds up smoothly after each use, no kinks or damage.


   Effect: High-pressure hose handles thick grease; long reach covers all gearboxes; durable build fits industrial conditions.

3. Fleet Service Center Heavy Truck Maintenance (YD53-017)

1. Setup: Mount YD53-017 (1/2" I.D., SAE 100 R1AT hose) on the wall of the maintenance bay; adjust the fixed position to 3m height for truck engine access;


   2. Oil Transfer: Pull the 15m hose to 6-8m (fixed via ratchet lock) to reach truck engines; the 1/2" I.D. hose delivers 20L oil in ~3 minutes per truck;


   3. Convenience: The 12-position lock allows the hose to be fixed at the exact length needed, avoiding excess slack;


   4. Space-Saving: Wall-mounted design keeps the 15m hose off the floor, preventing damage from truck tires.


   Effect: High-flow hose speeds up maintenance; space-saving design fits busy bays; adjustable length suits truck heights.

IV. Frequently Asked Questions (FAQ)

Q1: The hose retracts with a jerk or gets stuck. How to fix this?

Q2: Can YD53-013 (350 Bar) be used for water instead of grease?

Q3: The ratchet lock fails to hold the hose at the desired length. What’s wrong?

Q4: How to maintain the reel to ensure long-term performance?
