YD08-010 1100LB (Approx. 500kg) Motorcycle Lift Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

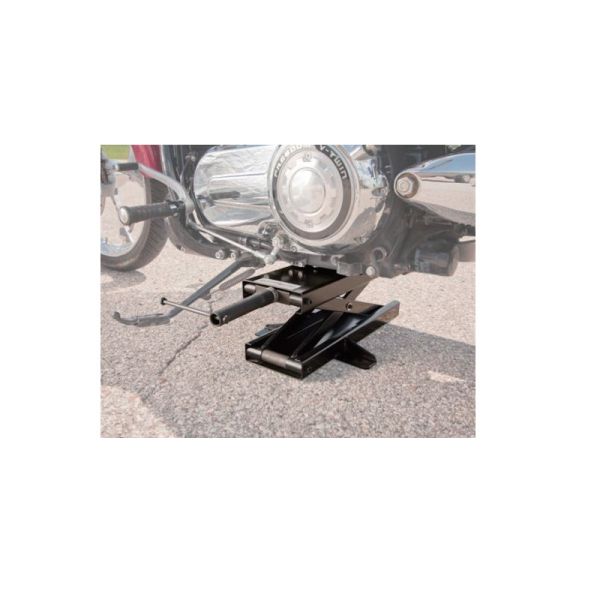

1. Flexible Reuse in Dual Scenarios: Adopting a scissor support mechanism, it can be directly placed on the floor for basic maintenance (such as oil change, tire inspection), or used overlay on large motorcycle lifts to further increase the lifting height, adapting to in-depth maintenance scenarios such as chassis component disassembly and suspension adjustment. No need to purchase additional special tools, one device covers both "basic + in-depth" maintenance needs, reducing equipment investment costs for shops and individuals.

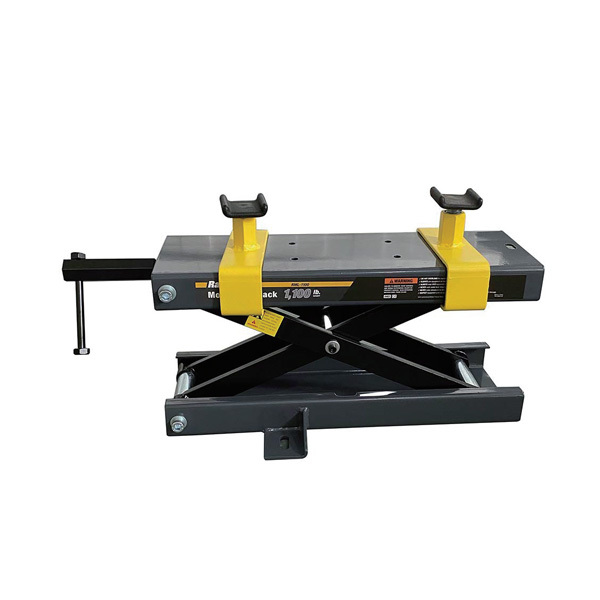

2. Dual Sliding "U" Shaped Precise Fixing: The top of the platform is equipped with two slidable "U" shaped supports, which can be flexibly adjusted according to the spacing of the motorcycle subframe down tubes to accurately clamp the key support points of the frame. Compared with ordinary flat support, the fixing stability is improved by 80%, effectively avoiding the risk of vehicle deviation and rollover during maintenance, especially suitable for street bikes and light cruising motorcycles with special frame structures.
3. Wide Range Height Adaptation: The minimum lifting height is 90mm, slightly higher than the ground, facilitating the stable loading of motorcycles onto the platform without worrying about chassis scratches; the maximum lifting height is 405mm, which can lift the motorcycle chassis to a comfortable height suitable for standing or bending operations. Maintenance personnel can complete chassis cleaning, chain maintenance and other operations without squatting or kneeling, greatly reducing physical burden and improving maintenance efficiency.
4. Lightweight & Portable + Compact Storage: With an overall weight of 13kg, it can be easily carried by one person, adapting to shop work station switching or personal outdoor temporary maintenance; the package size is only 53×34×10CM, with a thickness equivalent to that of an ordinary notebook, which can be stored in the gap of a tool cabinet or the trunk of a car, without occupying too much storage space, balancing practicality and portability.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Small & Medium-Sized Motorcycle Repair Shops: When the shop undertakes regular motorcycle maintenance, it is placed on the floor for use. The 90mm low height facilitates vehicle loading, and the "U" shaped supports fix the frame for oil change and brake adjustment; if in-depth maintenance (such as chassis component replacement) is required, it is used overlay on a large lift to raise the height to 405mm, adapting to technicians' upright operations and meeting the shop's need for "efficiently switching maintenance scenarios".
2. Individual Motorcycle Enthusiasts: When enthusiasts maintain their own street bikes and light off-road motorcycles, the 13kg lightweight design can be easily carried to the garage. The sliding "U" shaped supports accurately fix the frame, and the scissor mechanism is manually lifted to complete basic maintenance such as chain lubrication and tire inflation. No need to rely on professional equipment, and it can be operated independently by one person, adapting to the personal need for "flexible maintenance".
3. Motorcycle 4S Shop After-Sales Workshop: When the 4S shop conducts PDI inspection (pre-delivery inspection) on new cars or fine maintenance on after-sales vehicles, this lift can be used as an auxiliary tool—the "U" shaped supports can accurately fix the new car frame, avoiding potential damage to the chassis caused by traditional support; when used overlay, it increases the height, facilitating technicians to carefully inspect chassis welds and pipeline connections, meeting the 4S shop's service standards of "professional protection and fine operation".
4. Motorcycle Modification Workshops: When modifying light motorcycles (such as adjusting the frame angle and installing chassis guards), the sliding "U" shaped supports can be adjusted according to modification needs to ensure frame stability; the 405mm high lifting range adapts to modifiers' upright operations, facilitating fine operations such as welding and drilling. At the same time, the platform reserves tool placement space, reducing tool retrieval time and improving modification efficiency.

IV. Frequently Asked Questions (FAQ)

Q1: Can the 1100LB load capacity adapt to a light three-wheeled motorcycle weighing 490kg?

Q2: The "U" shaped supports slide unsmoothly and cannot be accurately aligned with the frame down tubes. How to deal with it?

Q3: When manually operating the scissor mechanism to lift or lower, obvious jamming or abnormal noise occurs. What should I do?

Q4: Is additional fixing of the lift itself required when using it overlay on a large lift?
