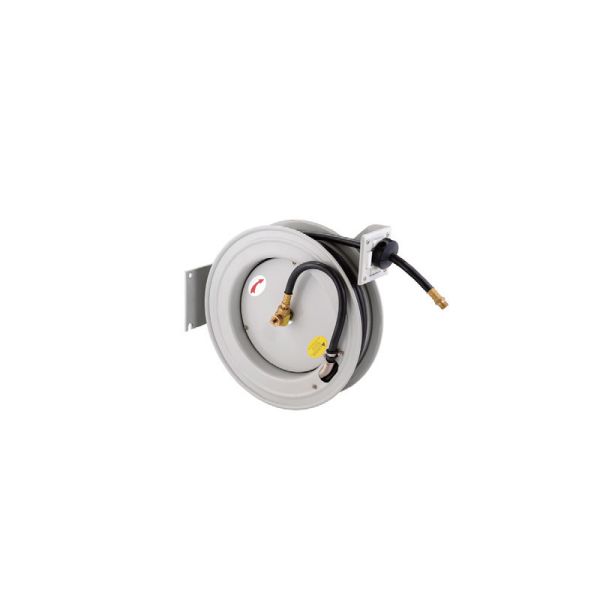

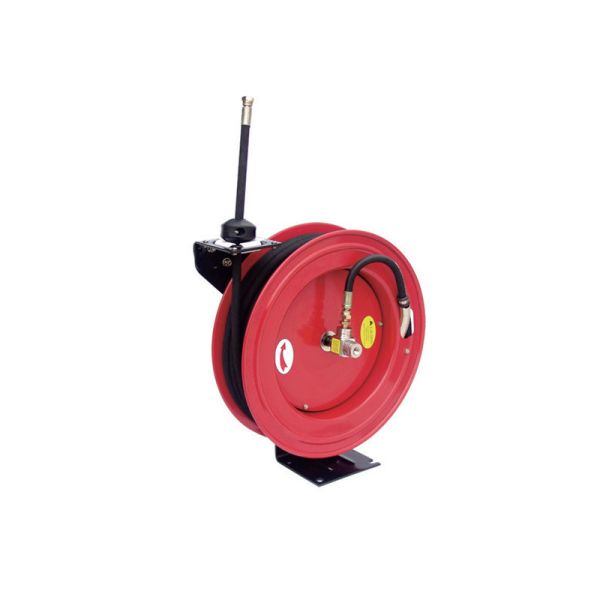

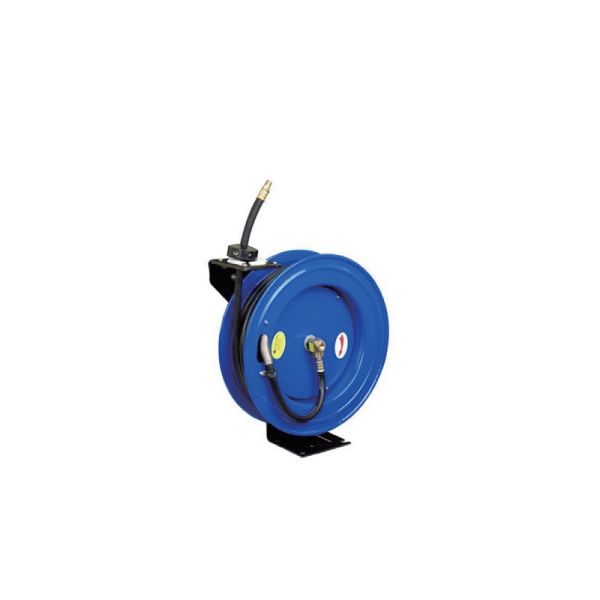

YEEDA YD53 Series Auto-Retractable Air Hose Reel Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Model-Specific Parameter Summary Table

2. Universal Structural Specifications

II. Product Details (PRODUCT DETAILS)

1. 3 Series: Tailored to Every Demand

• 310 Series (Economical DIY): Ideal for home DIYers and small workshops—short-to-medium hose lengths (8-10m), 30 Bar pressure, and Germany flexible hose ensure ease of use for light tasks like pneumatic screwdrivers or small washdowns.
• 320 Series (Pneumatic Industrial): Designed for medium-to-heavy industrial use—15m hose length (longer reach than 310), 30 Bar pressure, and durable German hose handle manufacturing plant lubrication, fleet maintenance, and heavy tool operations.
• 330 Series (Heavy-Duty Retractable): Built for large-scale industrial and commercial use—extra-long hoses (15-30m), hybrid rubber hose (superior flexibility and wear resistance), and 20 Bar pressure suit warehouse-wide air services, automotive centers, and heavy maintenance.

2. Heavy-Duty Durability: Built to Last

• Steel Construction & CPC Coating: The heavy-duty steel frame, 1" solid axle, and CPC powder coat resist rust, impacts, and industrial wear—service life exceeds 8 years, twice that of plastic reels. The CNC-spun discs with rolled edges prevent hose damage and ensure operator safety.
• Precision Bearings & Stable Base: Lubricated precision bearings enable smooth reel rotation (no jamming), while the one-piece steel base and support post keep the reel stable during use—even when the hose is fully extended.

3. Flexible Mounting & Auto-Rewind: Convenience Redefined

• Multi-Mount Options: The adjustable guide arm fits bench, wall, ceiling, or vehicle mounting, saving 50% of workspace compared to floor-standing reels. Ceiling mounting, for example, keeps hoses off the ground, avoiding tripping hazards.
• Auto-Retractable/Rewindable Design: Eliminates manual hose coiling—after use, the hose retracts automatically into the reel, reducing setup/cleanup time by 40%. This also prevents hose tangles and extends hose life.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Automotive Service Center (YD53-009, 330 Series)

1. Setup: Mount YD53-009 (15m hybrid rubber hose, 1/2" I.D.) on the ceiling above each repair bay; connect to the center’s compressed air system;


   2. Use: Extend the 15m hose to reach any part of the car (e.g., undercarriage for washdown, engine bay for pneumatic tools); the auto-retract function pulls the hose back after use;


   3. Efficiency: 20 cars serviced in ~4 hours; no hose tangles or tripping hazards; hybrid rubber hose resists oil stains and wear;


   4. Durability: The CPC-coated steel reel withstands daily impacts from tools and vehicle parts.


   Effect: Long reach fits repair bays; auto-retract saves time; durability suits busy centers.

2. Manufacturing Plant Lubrication (YD53-005, 320 Series)

1. Setup: Install YD53-005 (15m German flexible hose, 3/8" I.D.) on walls between machine bays; connect to the plant’s air supply;


   2. Lubrication: Extend the 15m hose to reach each machine’s lubrication points; 30 Bar pressure powers the pneumatic lubrication tool;


   3. Organization: Auto-rewind keeps the hose off the factory floor, avoiding damage from machinery or carts;


   4. Reliability: The steel base and precision bearings ensure stable operation—no downtime from reel jamming.


   Effect: Long reach covers machine bays; auto-rewind maintains organization; industrial design fits factory conditions.

3. Home DIY Workshop (YD53-001, 310 Series)

1. Setup: Mount YD53-001 (10m German flexible hose, 1/4" I.D.) on a workbench; connect to a portable air compressor;


   2. DIY Tasks: Extend the 10m hose to use nail guns for woodworking or small washdown tools for cleaning; the lightweight hose is easy to maneuver;


   3. Storage: Auto-rewind retracts the hose into the reel after use, saving space in the small workshop;


   4. Convenience: The 30 Bar pressure handles all light DIY tools, and the German hose is flexible enough for tight spaces.


   Effect: Compact design fits small workshops; easy use suits DIY tasks; auto-rewind saves storage space.

IV. Frequently Asked Questions (FAQ)

Q1: The hose retracts unevenly or gets stuck. How to fix this?

Q2: Can the 330 Series (hybrid rubber hose) be used outdoors?

Q3: The connection leaks air. What’s the issue?

Q4: How to choose the right model for my needs?
