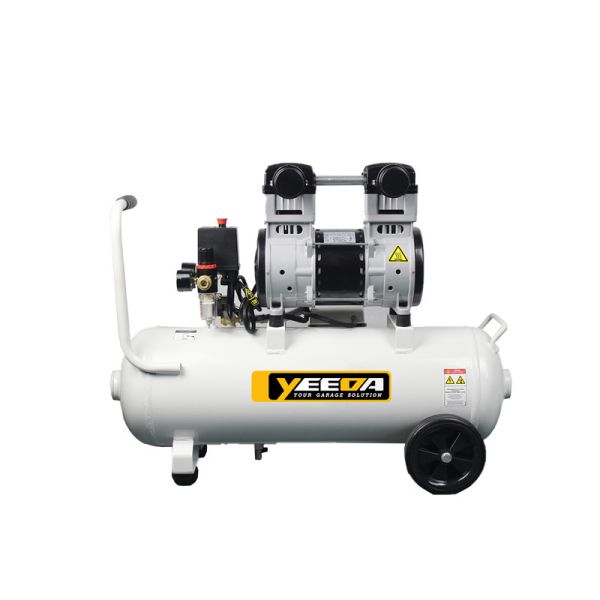

YD85-004 Air Compressor: 50L, 1.5HP, 202L/Min for Auto Shops & Heavy-Duty Workshops
YD85-004 Air Compressor: 50L, 1.5HP, 202L/Min for Auto Shops & Heavy-Duty Workshops
Specifications
Brand Name :
YEEDA
Model Number :
YD85-004
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Tank Capacity :
50L
Motor Power :
1100W (1.5HP), 4-pole
Voltage & Frequency :
110V, 60HZ
Maximum Pressure :
8 Bar / 115 PSI
Speed :
1750 R/M (Revolutions Per Minute)
Piston Size :
63.7mm × 2
Description

YEEDA Air Compressor (Model: YD85-004) - Product Detail Page

1. Product Specifications

Parameter Details
Model No. YD85-004
Tank Capacity 50L
Motor Power 1100W (1.5HP), 4-pole
Voltage & Frequency 110V, 60HZ
Maximum Pressure 8 Bar / 115 PSI
Speed 1750 R/M (Revolutions Per Minute)
Piston Size 63.7mm × 2
Phase Single Phase
Free Air Delivery 202 L/Min
Air Kit Set Switch, two gauges, safety valve, one electric valve, one copper ball valve, air regulator
Package Information 7-ply export carton (with foam inside); Dimension: 76×33×65CM; Weight: 36 KGS

2. Product Details

YEEDA’s YD85-004 air compressor is built for high-efficiency, heavy-duty use, featuring a spacious 50L tank that enables long continuous operation without frequent recharging. Its powerful 1100W (1.5HP) 4-pole motor runs at 1750 R/M, delivering strong performance with low noise—paired with 8 Bar (115 PSI) max pressure and 202 L/Min free air delivery, it meets high-demand air supply needs.
Designed to work with standard 110V 60HZ single-phase power, it fits both professional workshops and large home garages. The all-inclusive air kit set enhances usability: two gauges for real-time pressure monitoring, an air regulator for precise pressure adjustment, plus a safety valve, electric valve, copper ball valve, and switch—ensuring ready-to-use functionality right out of the box. For secure transit, it’s packed in a durable 7-ply export carton with internal foam to resist impacts. Though it has a 50L tank, its 76×33×65CM dimension allows for stable placement in dedicated work areas.

3. Application Scenarios

  • Professional Auto Repair Shops: Ideal for powering pneumatic tools like impact wrenches, air hammers, and tire changers, supporting continuous tire repair or engine maintenance.
  • Large Home Workshops: Serves DIY enthusiasts for heavy-duty tasks such as woodworking (with pneumatic nail guns) or metalworking (with air grinders), thanks to its 50L tank and high air delivery.
  • Small-Scale Industrial Use: Suitable for small factories or production lines that need steady compressed air for assembly-line tools (e.g., pneumatic screwdrivers) or product cleaning.
  • Outdoor Event & Construction Aids: Inflates large equipment like construction air mats or event tents quickly, and provides compressed air for cleaning construction sites.

4. Frequently Asked Questions (FAQs)

  1. Q: What makes the 1100W (1.5HP) motor suitable for heavy use? A: The 1.5HP motor delivers strong torque and stable power output, avoiding overheating even during prolonged operation, which is essential for heavy-duty tasks.
  2. Q: Can this compressor be used with 220V power? A: No, it is strictly designed for 110V 60HZ. Using 220V will damage the motor, and voltage converters are not recommended due to safety risks.
  3. Q: How to maintain the 50L tank to prevent rust? A: Drain accumulated moisture from the tank after each use; check the tank for corrosion monthly, and store the compressor in a dry, well-ventilated area.
  4. Q: Does the air regulator support adjustable pressure ranges? A: Yes, the air regulator allows pressure adjustment from 0 to 8 Bar (115 PSI), fitting the pressure requirements of different pneumatic tools.
  5. Q: Is the product difficult to move given its 36 KGS weight? A: While it is heavier, its compact vertical design (76×33×65CM) makes it easy to position in a fixed area; for occasional movement, using a hand truck is recommended.
