YD01-007,Workshop 2-Ton Heavy-Duty Shop Crane for Lifting & Transport
YD01-007,Workshop 2-Ton Heavy-Duty Shop Crane for Lifting & Transport
YD01-007,Workshop 2-Ton Heavy-Duty Shop Crane for Lifting & Transport
YD01-007,Workshop 2-Ton Heavy-Duty Shop Crane for Lifting & Transport
Specifications
Brand Name :
YEEDA
Model Number :
YD01-007
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Load-bearing Capacity :
2 tons (2000kg) with 4 lifting gears (500kg, 1000kg, 1500kg, 2000kg)
Frame Dimensions :
1500mm (H) × 1760mm (L) × 1220mm (W)
Wheelbase Parameters :
Front wheels: 1020mm center distance, Rear wheels: 660mm center distance
Net Weight :
85kg
Description

YEEOA 2 - Ton Shop Crane (Model: YD01 - 007)

Product Specifications

  • Load - bearing Capacity: The maximum load - bearing capacity is 2 tons (2000kg). There are 4 lifting gears, namely 500kg, 1000kg, 1500kg, and 2000kg, which can be flexibly selected according to different loads.
  • Frame Dimensions: The frame height is 1500mm, the length is 1760mm, and the width is 1220mm, providing a stable and suitable spatial range for lifting operations.
  • Wheelbase Parameters: The center distance between the two front wheels is 1020mm, and the center distance between the two rear wheels is 660mm, ensuring the stability of the equipment when moving.
  • Net Weight of Product: 85KGS. While ensuring sturdiness, it is also convenient for handling and placement to a certain extent.

Product Details

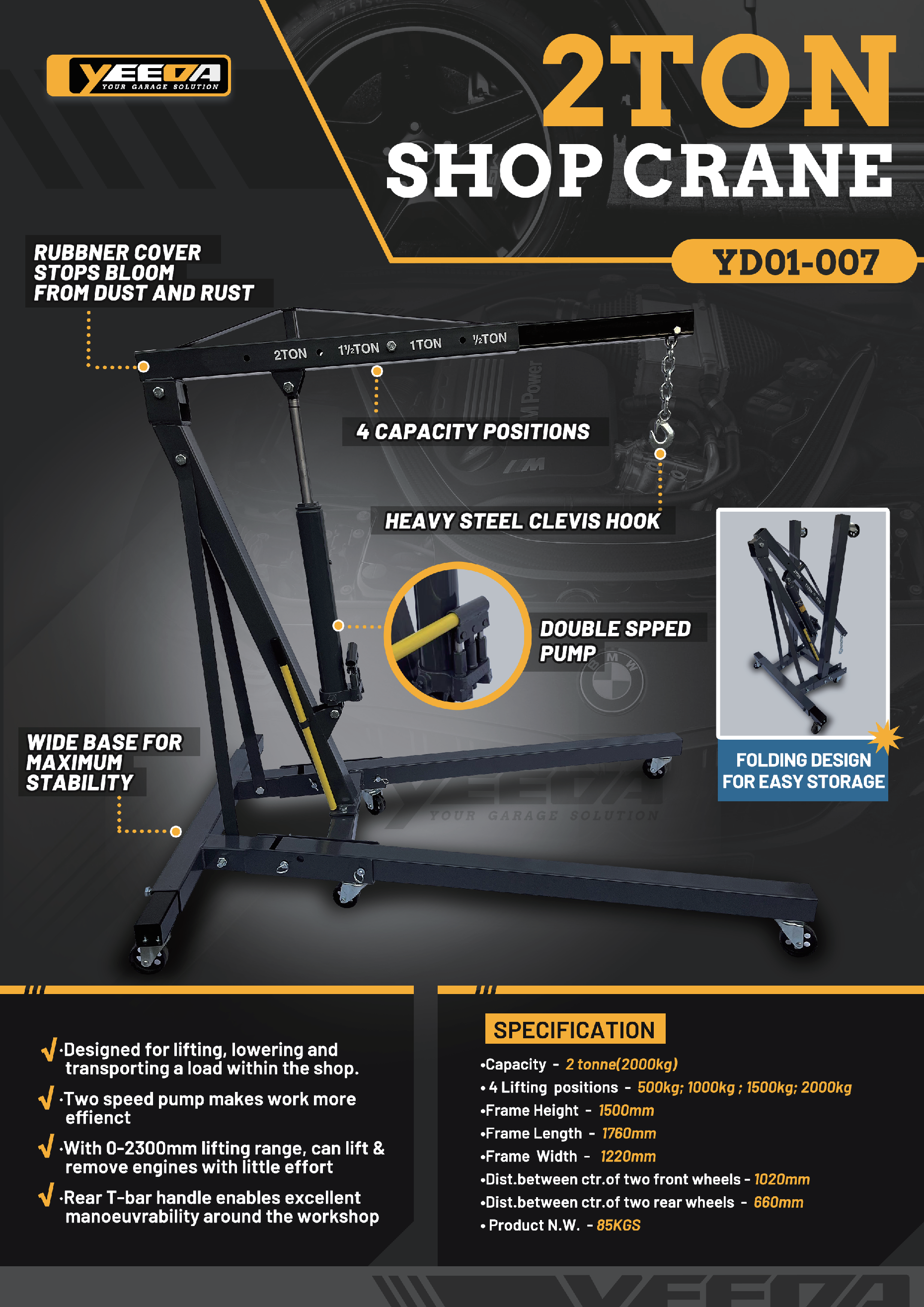

This shop crane is a powerful tool designed for lifting, lowering and transporting loads in the workshop. It is equipped with a rubber sheath, which can effectively prevent parts from being contaminated with dust and rust, and prolong the service life of the equipment. It is equipped with a double - speed pump, which greatly improves work efficiency and makes lifting operations faster. The lifting range can reach 0 - 2300mm, and only a little force is needed to easily lift and disassemble components such as engines. Its wide base design provides maximum stability for the equipment, and it can remain stable even when lifting heavy loads. It adopts a heavy - duty steel clevis hook, which has strong load - bearing capacity and is durable, ensuring the safety and reliability of the lifting process. In addition, it also has a folding design, which can be easily folded when not in use, convenient for storage and saving workshop space. The T - bar handle at the rear of the equipment enables it to have excellent mobility in the workshop, facilitating flexible movement between different operation areas.

Application Scenarios

  • Automobile Maintenance Workshop: It can be used for the disassembly and installation of engines, easily lift the engine from the car and transfer it to the designated position, and also can lift other heavy parts of the car, assisting in automobile maintenance and repair work.
  • Small Factory Workshop: During the production process, some heavy raw materials, semi - finished products or finished products are transported and their positions are adjusted to improve the convenience and efficiency of the production process.
  • Mechanical Equipment Maintenance Site: When heavy parts of large mechanical equipment need to be overhauled or replaced, it can assist workers in lifting heavy parts, facilitating maintenance operations.

Frequently Asked Questions

Q: What is the specific function of the equipment's double - speed pump?

A: The double - speed pump allows the lifting operation to have two speed options. When it is necessary to lift the load to a certain height quickly, the high - speed mode can be used to save time; when the load is close to the target position and more precise and slow operation is needed, the low - speed mode can be switched to facilitate precise control and improve the safety and accuracy of operation.

Q: What should be paid attention to when storing after folding?

A: After folding, the equipment should be placed in a dry, ventilated area without sharp debris to avoid damage to components such as the rubber sheath. At the same time, ensure that there is enough space in the storage location to prevent the equipment from being squeezed.

Q: The maximum lifting height is 2300mm. Is it sufficient in actual use?

A: For most conventional lifting operations in the workshop, such as automobile engine disassembly and general mechanical equipment component handling, the lifting height of 2300mm is sufficient. If there are special ultra - high lifting requirements, you can confirm in advance whether the equipment is applicable.
