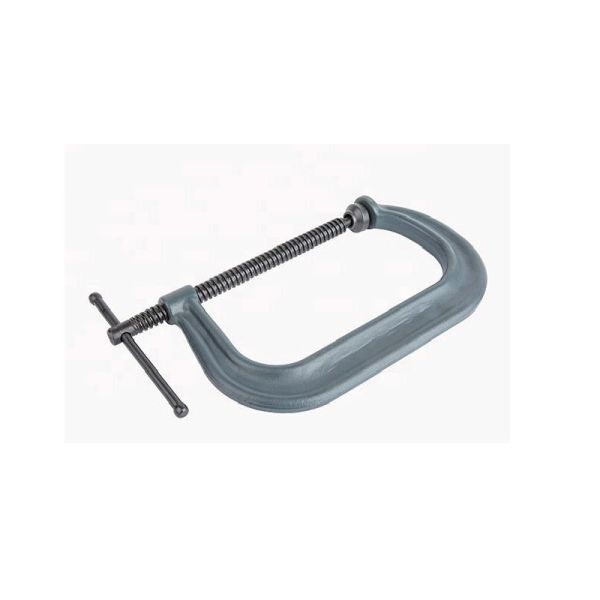

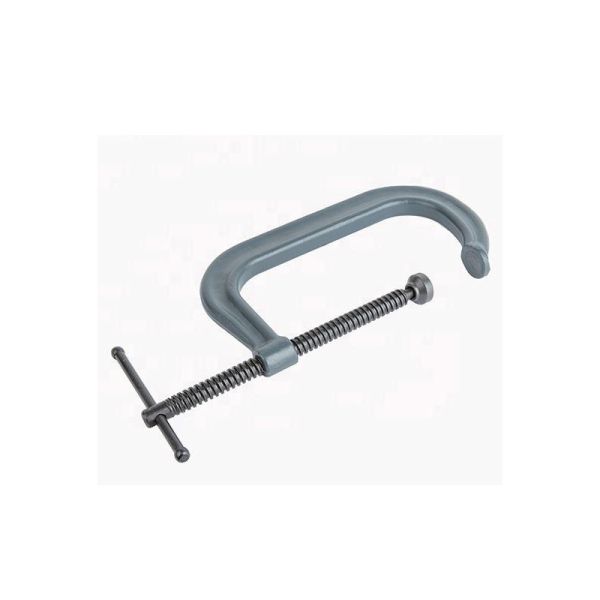

540 Series Ductile Iron Heavy-Duty C-Clamps - Product Detail Page

1. Product Specifications

• Key Specification Definitions:
  • Max. Opening: The maximum distance between the clamp’s upper and lower jaws, determining the thickness/width of workpieces it can accommodate.
  • Throat Depth: The vertical distance from the jaw face to the inner edge of the clamp’s "C" frame, which limits how far a workpiece can extend into the clamp.
  • Load Limit: The maximum weight the clamp can securely hold without structural deformation or slippage.

2. Product Details

Material & Structural Advantages

• Ductile Iron Frame: Constructed with high-quality ductile iron, a material that combines the strength of steel with the flexibility of iron. This ensures the clamp’s frame resists bending or cracking under heavy loads, making it suitable for heavy-duty applications.
• Dual Corrosion-Resistant Finishes: Available with two surface treatments for screws and handles:
  • Black oxide finish: Offers excellent wear resistance and a sleek, industrial look, ideal for dry workshop environments.
  • Zinc-plated finish: Provides superior protection against moisture and rust, perfect for humid or semi-outdoor use.
• Precision-Threaded Screw: The screw features fine, evenly cut threads that enable smooth, consistent tightening and loosening. This reduces friction, prevents jamming, and ensures the clamp maintains stable clamping force over time.
• Ergonomic Handle: The handle is designed for a comfortable, non-slip grip, allowing users to apply torque easily without hand fatigue—even during prolonged use. Its compact size also makes storage convenient.

Quality Assurance

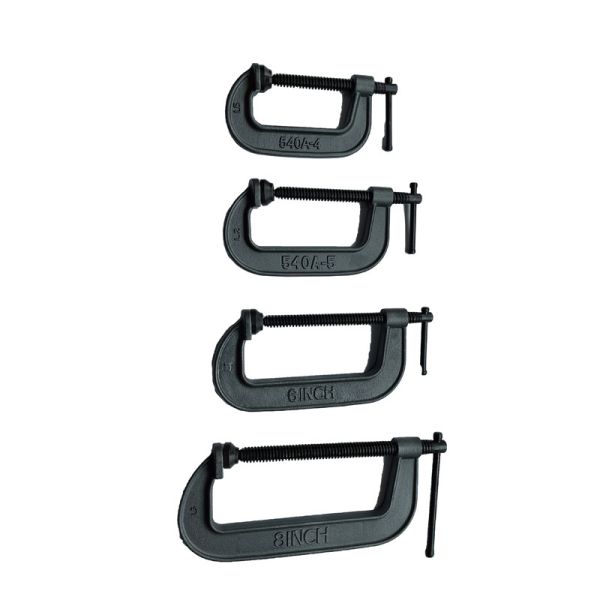

• All clamps belong to the 540 Series, a line strictly manufactured to meet heavy-duty industrial standards. Each unit undergoes a load test to confirm it meets the stated load limit before leaving the factory.
• The ductile iron frame undergoes heat treatment to enhance its hardness and impact resistance, ensuring it can withstand accidental drops or heavy impacts in busy workspaces.
• The connection between the handle and screw is reinforced to prevent detachment, a common failure point in low-quality clamps, thus extending the product’s service life.

3. Application Scenarios

• General Woodworking Workshops: Essential for securing wooden boards, panels, or furniture components during tasks like cutting, drilling, gluing, or sanding. For example, it can hold two glued boards together tightly until the adhesive dries, ensuring a strong bond.
• Light Metalworking Tasks: Suitable for clamping thin metal sheets or small metal parts during grinding, polishing, or light assembly. The ductile iron frame’s strength handles the pressure of metalworking without damage.
• Furniture Repair & Assembly: Ideal for home or professional furniture repair—e.g., clamping loose chair legs while regluing, or holding furniture parts in place during assembly (e.g., bookcase shelves, table frames).
• DIY Home Improvement: Useful for various home projects, such as installing shelves, building wooden storage boxes, or fixing broken household items. The smaller models (2-1/2” to 4”) are easy to maneuver in tight spaces.
• Craft & Hobby Projects: Perfect for crafters working with materials like plywood, MDF, or foam board. It can secure delicate craft pieces during painting, carving, or detailing, ensuring precision.

4. Frequently Asked Questions (FAQs)

Q1: What’s the difference between black oxide and zinc-plated finishes, and how do I choose?

• Black oxide: Best for dry indoor workshops. It has good wear resistance but limited protection against moisture. Choose this if your workspace is dry and you prioritize durability.
• Zinc-plated: Ideal for humid environments (e.g., basements, garages with poor ventilation) or occasional outdoor use. It forms a barrier against water, preventing rust. Select this for moisture-prone areas.

Q2: Can I use this clamp for materials other than wood, like plastic or glass?

Q3: How do I maintain the clamp to extend its service life?

1. After use, wipe the clamp (especially the screw and jaws) with a clean cloth to remove dust, wood shavings, or debris.
2. For zinc-plated models, if exposed to moisture, dry immediately to prevent rust.
3. Apply a small amount of machine oil or lubricating grease to the screw threads every 2-3 months (or after heavy use) to keep operation smooth and prevent thread wear.
4. Store the clamp in a dry, cool place—avoid leaving it in direct sunlight or damp areas.

Q4: What should I do if the screw gets stuck or hard to turn?

Q5: Is it safe to exceed the stated Load Limit for short periods?
