100 Ton Capacity Electrical Hydraulic Shop Press with 220V 1PH 60HZ Power and 270mm Cylinder Stroke
100 Ton Capacity Electrical Hydraulic Shop Press with 220V 1PH 60HZ Power and 270mm Cylinder Stroke
100 Ton Capacity Electrical Hydraulic Shop Press with 220V 1PH 60HZ Power and 270mm Cylinder Stroke
100 Ton Capacity Electrical Hydraulic Shop Press with 220V 1PH 60HZ Power and 270mm Cylinder Stroke
Specifications
Model Number :
YD06-020
Model :
YD06-020
Supply Ability :
500PCS/MONTH
Overall Height :
76.8" / 1950mm
Delivery Time :
30-45DAYS
Working Plate Pin Diameter :
55mm
Certification :
CE
Capacity :
100 Ton
Place of Origin :
Zhejiang，China
Operation :
Electrical Hydraulic
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Power :
220V 1PH 60HZ
Payment Terms :
T/T
Cylinder Stroke :
270mm
Brand Name :
YEEDA
Product Name :
100 Ton Electrical Hydraulic Shop Press Garage Floor Press
Description
100 Ton Electrical Hydraulic Shop Press YD06-020 220V Garage Floor Press
100 Ton Capacity Electrical Hydraulic Shop Press with 220V 1PH 60HZ Power and 270mm Cylinder Stroke

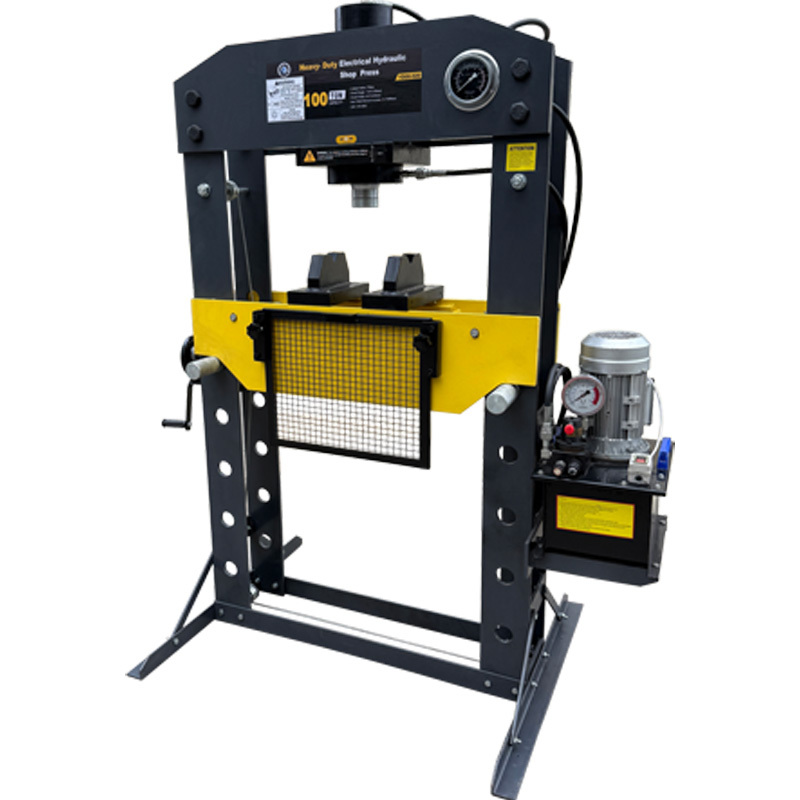

This 100 ton electrical hydraulic shop press is built for heavy-duty garage and workshop pressing tasks. Model YD06-020 runs on 220V 1PH 60HZ and uses an electrical hydraulic system for controlled pressing force. The frame includes a big diameter pin of 55mm to hold the working plate stably, with a safety guard shown on the unit.

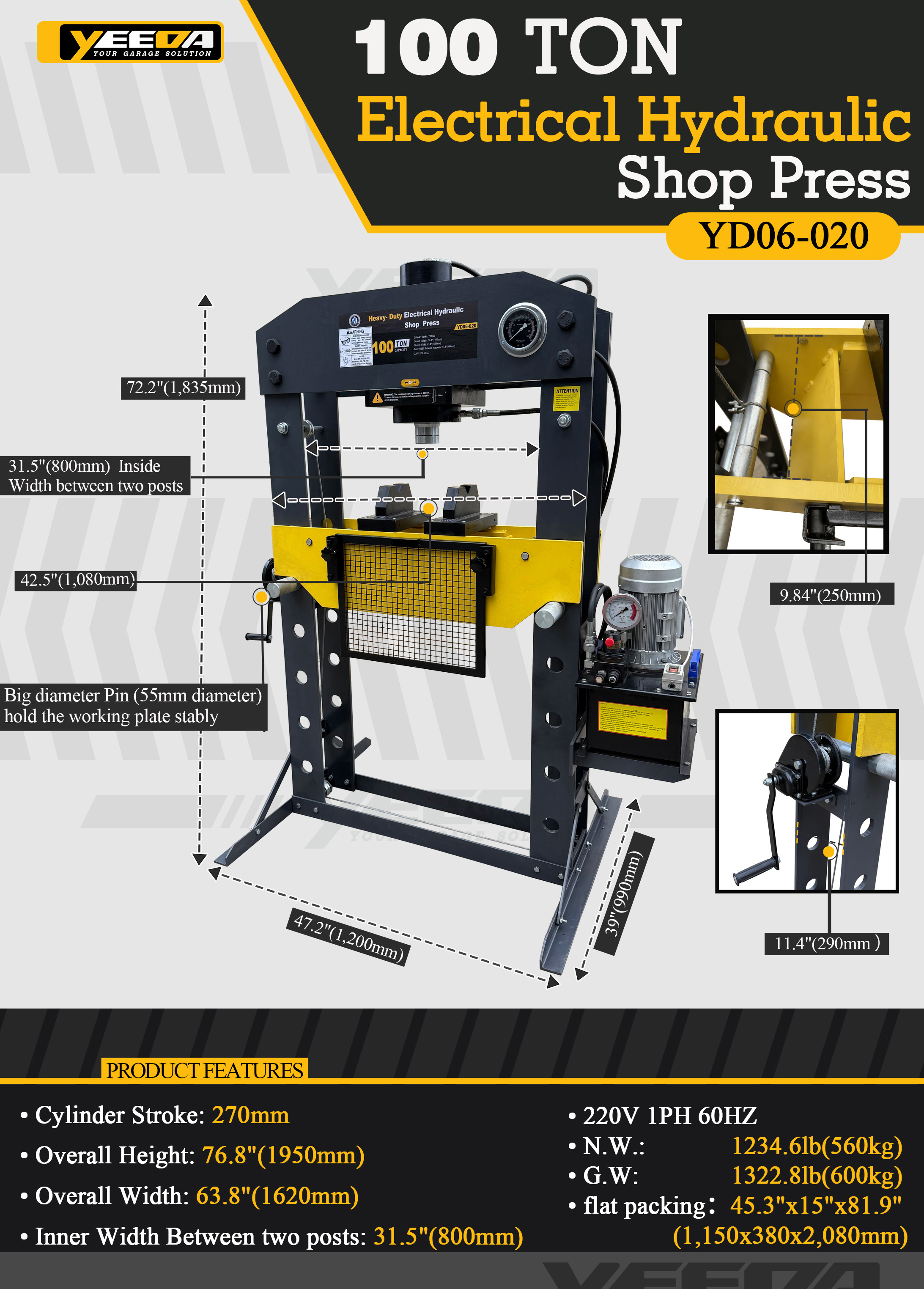

Dimensions from the image: overall height 76.8 inches (1950mm), overall width 63.8 inches (1620mm), inner width between two posts 31.5 inches (800mm), width between two posts reference 42.5 inches (1080mm), base length 47.2 inches (1200mm), base depth/leg 32 inches (820mm), side detail 9.84 inches (250mm), lower control/handle detail 11.4 inches (290mm). Cylinder stroke is 270mm. Weight and packing: N.W. 1234.6LB (560KG), G.W. 1322.8LB (600KG), flat packing 45.3 x 15 x 81.9 inches (1150 x 380 x 2080mm).

Product Parameters
Item Specification
Model YD06-020
Capacity 100 Ton
Operation Electrical Hydraulic
Power 220V 1PH 60HZ
Cylinder Stroke 270mm
Overall Height 76.8" / 1950mm
Overall Width 63.8" / 1620mm
Inner Width Between Two Posts 31.5" / 800mm
Width Between Two Posts Reference 42.5" / 1080mm
Base Length 47.2" / 1200mm
Base Depth/Leg 32" / 820mm
Side Detail 9.84" / 250mm
Lower Control/Handle Detail 11.4" / 290mm
Working Plate Pin Diameter 55mm
N.W. 1234.6LB / 560KG
G.W. 1322.8LB / 600KG
Flat Packing Size 45.3 x 15 x 81.9 in / 1150 x 380 x 2080mm
Application Garage/Workshop Heavy-Duty Pressing
Key Features
  • 100 ton capacity for heavy-duty shop use
  • Electrical hydraulic operation, 220V 1PH 60HZ
  • Cylinder stroke 270mm
  • Big diameter 55mm pin holds working plate stably
  • Adjustable working plate mounting on frame
  • Heavy-duty frame with safety guard
  • Suitable for garage and workshop pressing tasks
Application

This electrical hydraulic shop press is suitable for garage and workshop use where high-force pressing, bending, or component work is required. The electrical hydraulic system supports controlled operation, and the sturdy frame with 55mm working plate pin provides stable support.

Product Questions and Answers
What is the capacity of YD06-020?
It is a 100 ton shop press.
How is it powered/operated?
It is an electrical hydraulic press, 220V 1PH 60HZ.
What is the cylinder stroke?
Cylinder stroke is 270mm.
What are the overall dimensions?
Overall height 76.8 inches / 1950mm, overall width 63.8 inches / 1620mm, inner width between two posts 31.5 inches / 800mm, base length 47.2 inches / 1200mm.
What holds the working plate?
A big diameter pin of 55mm diameter holds the working plate stably.
What are the weight and packing details?
N.W. 1234.6LB (560KG), G.W. 1322.8LB (600KG). Flat packing size 45.3 x 15 x 81.9 inches (1150 x 380 x 2080mm).
Where is this press used?
It is used in garages and workshops for heavy-duty pressing applications.
