Foldable 2 Ton Shop Crane with Double Speed Pump for Engine Hoist and Hydraulic Lifting
Foldable 2 Ton Shop Crane with Double Speed Pump for Engine Hoist and Hydraulic Lifting
Specifications
Model Number :
YD01-007
Finish :
Powder-coated
Delivery Time :
30-45DAYS
Max Lifting Height :
2015mm (79.3")
Material :
Heavy-duty steel
Supply Ability :
500PCS/MONTH
Boom Length :
Max. 1360mm
Payment Term :
T/T 30% deposit, 70% before shipment
Base Width :
950mm (outside), 800mm (inside)
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Wheelbase :
Front 1020mm, Rear 660mm
Package Dimensions :
92 cm × 45 cm × 18 cm
Panel Function :
360° rotatable and fixable face plate
Payment Terms :
T/T
Base Size :
270mm×270mm (10.6"×10.6")
Basic Info :
Pick-Up Truck Mount Crane
Product Size :
900 × 700 × 950 mm
Certification :
CE
Key Dimensions :
169CM maximum lifting height
Place of Origin :
Zhejiang，China
Base Structure :
H-frame base, with 2 front castors
Brand Name :
YEEDA
Adjustableboom :
Yes, with multiple positions
Description

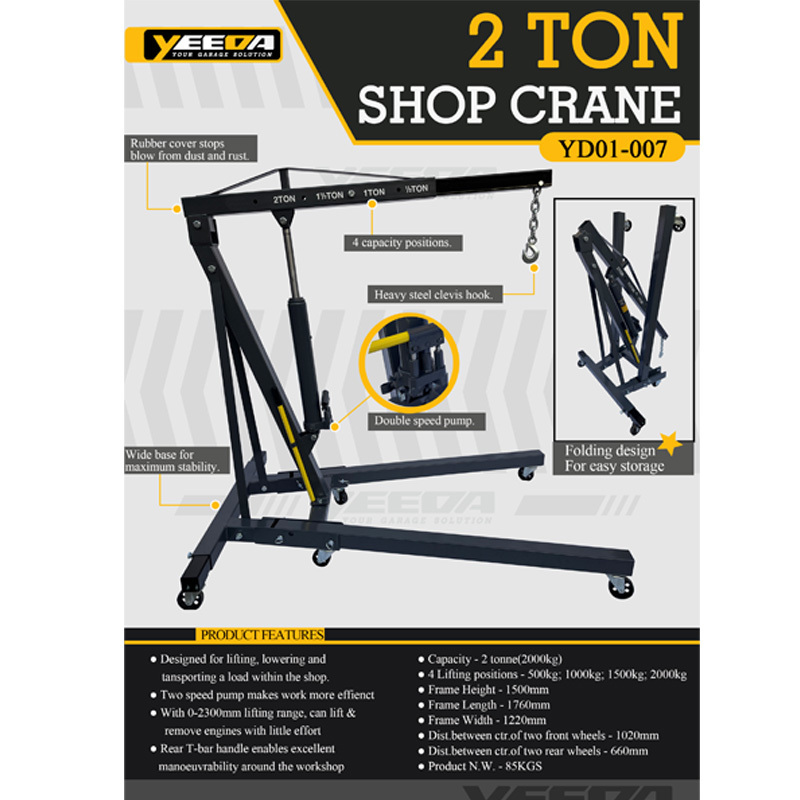

Foldable 2 Ton Shop Crane Double Speed Pump

This foldable 2 ton shop crane is designed for lifting, lowering, and transporting loads within shop environments. Model YD01-007 is built for garage and workshop applications where engine handling, equipment positioning, and controlled load movement are required. The frame features a wide base for enhanced stability, and the folding design allows for convenient storage when not in use.

The crane offers four capacity positions at 500kg, 1000kg, 1500kg, and 2000kg, corresponding to the marked boom positions shown as 1/2TON, 1TON, 1-1/2TON, and 2TON. With a lifting range of 0-2300mm, it supports shop tasks involving engine raising and removal with reduced effort. A double speed pump ensures efficient lifting operations, while the rear T-bar handle provides superior maneuverability around the workshop.

Additional features include a heavy steel clevis hook for secure load attachment, rubber cover stops to protect against dust and rust, and castor wheels arranged on a wide base frame. Frame dimensions are 1500mm height, 1760mm length, and 1220mm width. The distance between centers of the two front wheels is 1020mm, and between the two rear wheels is 660mm. Product net weight is 85kg.

Product Specifications
Item Specification
Model YD01-007
Capacity 2000kg / 1500kg / 1000kg / 500kg
Lifting Positions 4
Lifting Range 0-2300mm
Frame Height 1500mm
Frame Length 1760mm
Frame Width 1220mm
Front Wheel Centre Distance 1020mm
Rear Wheel Centre Distance 660mm
Net Weight 85kg
Hook Heavy Steel Clevis Hook
Pump Double Speed Pump
Base Wide Base for Stability
Handle Rear T-Bar Handle
Storage Folding Design
Protection Detail Rubber Cover Stops
Key Features
  • Foldable design for easy storage after shop use
  • 2 ton capacity with 4 capacity positions
  • Double speed pump for efficient lifting control
  • Wide base for maximum stability
  • Rear T-bar handle for workshop maneuverability
  • Heavy steel clevis hook for load connection
  • Rubber cover stops to help protect from dust and rust
  • 0-2300mm lifting range for engine lifting tasks
Application

This 2 ton shop crane is suitable for garage and workshop applications such as lifting, lowering, and transporting engines or similar shop loads. The folding structure and wheelbase layout support use in areas where space and movement control matter.

Product Questions and Answers
What is the capacity of YD01-007?
It has 4 capacity positions: 500kg, 1000kg, 1500kg, and 2000kg.
Does this shop crane fold?
Yes, it has a folding design for easy storage.
What pump is fitted?
It uses a double speed pump.
What is the lifting range?
The lifting range is 0-2300mm.
What are the frame dimensions?
Frame height 1500mm, frame length 1760mm, frame width 1220mm.
What is the product net weight?
Net weight is 85kg.
Where is this crane used?
It is used in shops and garages for lifting, lowering, and transporting loads such as engines.
