500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle
500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle
500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle
500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle
Specifications
Base Dimensions :
690 mm × 780 mm, wide-base design
Model Number :
YD05-001C
Material :
Heavy-duty steel
Height Range :
820mm (min) to 1768mm (max)
Package :
113*22*280mm
Supply Ability :
500PCS/MONTH
Stroke :
815mm
Lifting Height :
Min: 8.67" (22 cm) Max: 32.28" (82 cm)
Delivery Time :
30-45DAYS
Lifting Platform :
Size: 340 mm × 240 mm
Context Of Use :
Workshop, Garage shop
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Base Dimension :
31" × 31" (787 mm × 787 mm)
Main Material :
Heavy duty solid alloy steel
Payment Terms :
T/T
Delivery Date :
30-40days
Assemblyrequired :
Yes, partial assembly needed
Model No :
YD05-01C
Brand Name :
YEEDA
Test Video :
Available
Certification :
CE
Wheels :
4 swivel casters with brakes
Place of Origin :
Zhejiang，China
Description
500KG Multi-Position Transmission Jack YD05-001C Adjustable Saddle Hydraulic
500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle

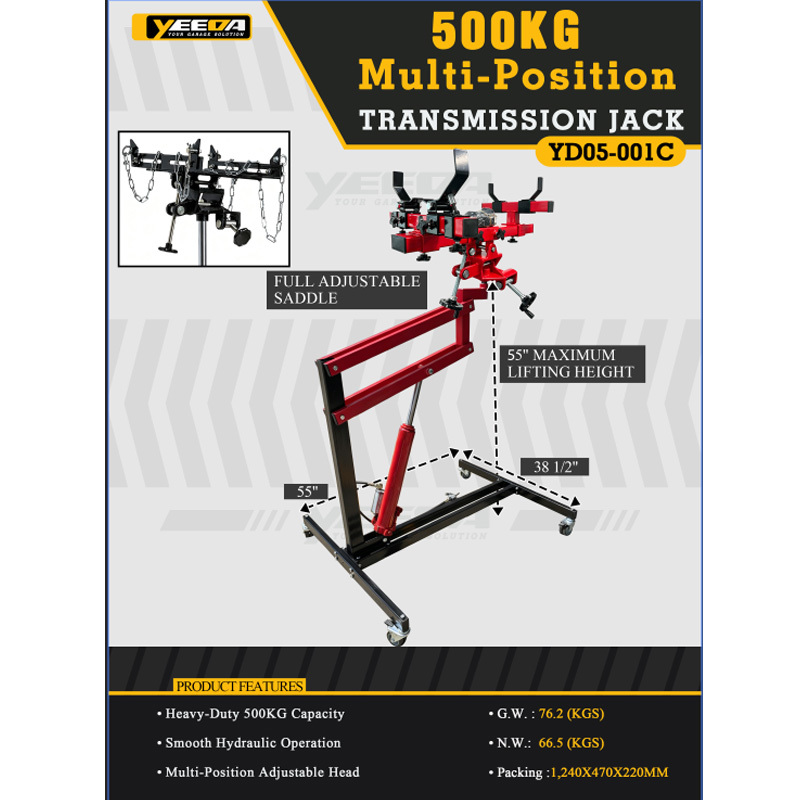

This 500KG multi-position transmission jack is built for garage and workshop transmission service, providing controlled lifting and positioning during repair, removal, or installation tasks. Model YD05-001C features smooth hydraulic operation and a heavy-duty 500KG capacity. The head is multi-position adjustable, and the unit includes a full adjustable saddle with chains for secure load support.
The frame has a wheeled base for movement around the service area. Dimensional references shown are 55 inches maximum lifting height, 55 inches base length, and 38 1/2 inches base width. Product weight and packing details are G.W. 76.2KGS, N.W. 66.5KGS, packing size 1240 x 470 x 220mm.
Product Parameters
Item Specification
Model YD05-001C
Capacity 500KG
Operation Smooth Hydraulic Operation
Saddle Full Adjustable Saddle
Head Multi-Position Adjustable Head
Max Lifting Height 55"
Base Length 55"
Base Width 38 1/2"
G.W. 76.2KGS
N.W. 66.5KGS
Packing Size 1240 x 470 x 220mm
Application Garage Transmission Lifting and Service
Key Features
  • 500KG heavy-duty capacity
  • Multi-position adjustable head
  • Full adjustable saddle with chains
  • Smooth hydraulic operation
  • Wheeled base for workshop manoeuvrability
  • 55" maximum lifting height
Application
This multi-position transmission jack is suitable for garage and workshop use where transmissions need to be lifted, held, aligned, or lowered during service. The adjustable saddle and head support varied positioning needs.
Product Questions and Answers
What is the capacity of YD05-001C?
It has a heavy-duty 500KG capacity.
Does it have an adjustable saddle?
Yes, it has a full adjustable saddle.
What is the head design?
It has a multi-position adjustable head.
What is the maximum lifting height?
Maximum lifting height is 55 inches.
What are the base dimensions?
Base length is 55 inches, width is 38 1/2 inches.
What are the weight and packing details?
G.W. 76.2KGS, N.W. 66.5KGS, packing size 1240 x 470 x 220mm.
Where is this transmission jack used?
It is used in garages and workshops for transmission lifting, positioning, and service work.
