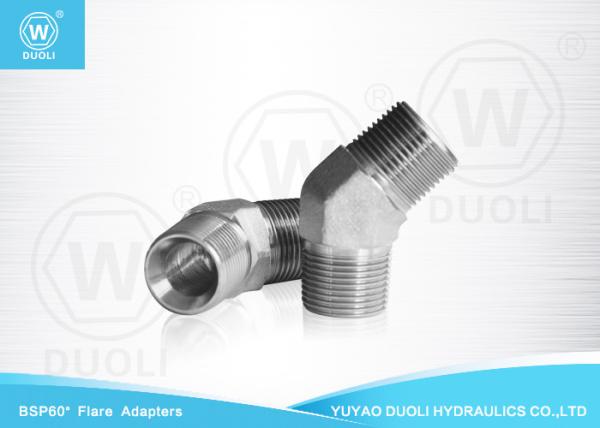

45 Degree Elbow Hydraulic Flare Fittings BSPT To BSPT Male Thread Carbon Steel
45 Degree Elbow Hydraulic Flare Fittings BSPT To BSPT Male Thread Carbon Steel
Specifications
Brand Name :
Duoli
Model Number :
1T4
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
500 pieces
Payment Terms :
T/T
Supply Ability :
2000 pieces/month
Delivery Time :
within 30 days or as per customers' requirement.
Packaging Details :
standard exporting package or as per customers' requests.
Material :
Carbon steel
Color :
White
Technics :
CNC machine
Type :
Elbow
Description

45° Elbow BSPT Male Hydraulic Flared Adaptor by carbon steel

Name

45 degree bspt to bspt male thread

hydraulic adapters
Brand Name Duoli
Material Carbon Steel
Thread type BSPT/BSPT MALE
Technical CNC Machines
Size From 1/8" to 1.1/2"
Surface Treatment White Zinc-Plated
MOQ 500 pieces
Product Attributes High pressure, high temperature
Trading Method EXW, FOB, CIF
Payment T/T

Product Description

45 Degree Elbow Hydraulic Flare Fittings BSPT To BSPT Male Thread Carbon Steel

Thread WINNER PART NO.
PART NO. 1 2
A6AA-02-02 R1/8"×28 R1/8"×28 1T4-02SP
A6AA-04-04 R1/4"×19 R1/4"×19 1T4-04SP
A6AA-06-06 R3/8"×19 R3/8"×19 1T4-06SP
A6AA-08-08 R1/2"×14 R1/2"×14 1T4-08SP
A6AA-12-12 R3/4"×14 R3/4"×14 1T4-12SP
A6AA-16-16 R1"×11 R1"×11 1T4-16SP
A6AA-20-20 R1.1/4"×11 R1.1/4"×11 1T4-20SP
A6AA-24-24 R1.1/2"×11 R1.1/2"×11 1T4-24SP

External thread

When the diameter is the largest and the largest diameter, the two thread elements must be concentric,

however, if the size is not round, the size is small, in the non round point, the diameter and diameter will

produce deviation

In the middle of the smallest, the largest diameter, the two elements of the total runout can not be greater

than the middle diameter tolerance;

The diameter of the largest, the largest diameter of the hour, the two elements of the eccentricity of the

full jump is not greater than the large diameter tolerance;

The diameter of the smallest, the largest diameter of the hour, the two elements of the total runout can

not be greater than the diameter of the tolerance tolerance

Internal thread

The smallest diameter, small diameter (minor diameter) the shortest, the two should be concentric, if the

path is not round or too large, the two elements of the total runout can not be greater than the size of the

path tolerance;

The maximum diameter of the path, the shortest path, the two elements of the eccentricity of the total

runout should not be greater than the median diameter tolerance

When the diameter is the smallest, and the path is the largest, the full runout of the two elements can not

be greater than the path.
