Specifications
Brand Name :
DME&JDE
Model Number :
DAOF51245
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
China
MOQ :
100 Pieces (MOQ)
Price :
US$ 0.8-10.0
Payment Terms :
T/T
Supply Ability :
100 Pieces (MOQ)30days
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hydraulic Hose Adaptors
DME&JDE Code :
DAOF51245
Standard :
ORFS
Structure :
Straight
Connection Type :
Male× Male
Thread Types :
UNF × UNF
Description

DAOF51245 Straight Adaptor ORFS Male - ORFS Male

Product Information of DAOF51245

DAOF51245 is a straight hydraulic adapter designed for reliable connection in hydraulic systems. It conforms to ORFS standard with UNF threads on both ends, featuring an O‑ring face seal structure that ensures excellent sealing performance, effectively preventing leakage under high pressure and vibration conditions.

Application of DAOF51245


This adapter provides a stable and direct connection between two ORFS male terminals, with easy installation and long service life. It is widely used in hydraulic hose assemblies, industrial machinery, construction equipment and other hydraulic systems that require safe and durable pipe connections.

Hydraulic Hose Adaptors | Drawing of TP-DABPM1081-BPF

ORFS Male Hydraulic Hose Adaptors DAOF51245 Straight Adaptor UNF × UNF

Hydraulic Hose Adaptors | Technical Data of TP-DABPM1081-BPF

-

Part Number

F1 (Thread)

F2 (Thread)

C1

C2

D1

D2

L

S

Cross Number

-

-

UNF

UNF

mm

mm

mm

mm

mm

mm

-

-04

DAOF51245-0404

9/16"-18

9/16"-18

9.80

9.80

4.37

4.37

27.40

5/8"

FS2403-0404

-06

DAOF51245-0604

11/16"-16

9/16"-18

11.20

9.80

6.71

4.37

29.70

3/4"

FS2403-0604

-06

DAOF51245-0606

11/16"-16

11/16"-16

11.20

11.20

6.50

6.50

31.00

3/4"

FS2403-0606

-08

DAOF51245-0806

13/16"-16

11/16"-16

12.80

11.20

6.71

6.71

33.80

7/8"

FS2403-0806

-08

DAOF51245-0808

13/16"-16

13/16"-16

13.00

13.00

9.60

9.60

35.50

7/8"

FS2403-0808

-10

DAOF51245-1008

13/16"-16

1"-14

15.49

12.80

12.29

9.60

39.90

1-1/16"

FS2403-1008

-10

DAOF51245-1010

1"-14

1"-14

15.50

15.50

12.50

12.50

42.50

1-1/16"

FS2403-1010

-12

DAOF51245-1206

1-3/16''-12

11/16"-16

17.02

11.20

15.47

6.71

41.40

1-1/4"

FS2403-1206

-12

DAOF51245-1208

1-3/16''-12

13/16"-16

17.02

12.80

15.47

9.60

43.00

1-1/4"

FS2403-1208

-12

DAOF51245-1210

1-3/16''-12

1"-14

17.02

15.49

15.50

12.50

45.70

1-1/4"

FS2403-1210

-12

DAOF51245-1212

1-3/16''-12

1-3/16''-12

17.02

17.02

15.47

15.47

47.20

1-1/4"

FS2403-1212

-16

DAOF51245-1612

1-7/16''-12

1-3/16''-12

17.50

17.02

20.60

15.47

48.80

1-1/2"

FS2403-1612

-16

DAOF51245-1616

1-7/16"-12

1-7/16"-12

17.50

17.50

20.60

20.60

49.30

1-1/2"

FS2403-1616

-20

DAOF51245-2016

1-11/16"-12

1-7/16"-12

17.50

17.50

26.00

20.60

51.30

1-3/4"

FS2403-2016

-20

DAOF51245-2020

1-11/16"-12

1-11/16"-12

17.50

17.50

26.00

26.00

51.30

1-3/4"

FS2403-2020

-24

DAOF51245-2424

2"-12

2"-12

17.50

17.50

32.00

32.00

53.00

2-1/8"

FS2403-2424

-32

DAOF51245-3224

2-1/2"-12

2"-12

22.25

17.50

45.00

32.00

61.00

2-5/8"

FS2403-3224

-32

DAOF51245-3232

2-1/2"-12

2-1/2"-12

22.25

22.25

45.00

45.00

66.00

2-5/8"

FS2403-3232

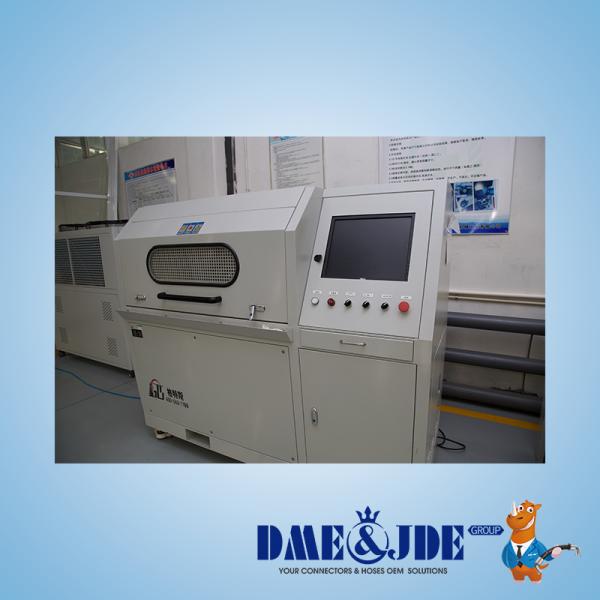

Quality Control
