Specifications
Brand Name :
DME&JDE
Model Number :
DP9MFL
Certification :
MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA
Place of Origin :
Dalian City, LiaoningProvince, China
MOQ :
100 Pieces (MOQ)
Price :
US$ 0.8-2.7
Payment Terms :
T/T
Supply Ability :
100 Pieces (MOQ)30days
Delivery Time :
30days
Packaging Details :
wooden
Product Name :
Hydraulic Hose Fitting
DME&JDE Code :
DP9MFL
Product Type :
Hydraulic Fitting
Structure :
90° Elbow
Connection Type :
Female
Hose Fitting Type :
Insert
Thread Types :
Metric 24° Cone Light Type
Size :
1/4" -1 1/2"
Description

DP9MFL Hose Fitting Insert 90° Elbow Metric Female 24° Cone Light Type

Hydraulic Hose Fitting Adavantage

High-Pressure Seal: Precision-engineered Metric 24° cone face seal ensures leak-free performance and durability in extreme hydraulic systems.

Space-Saving Design: 90-degree elbow structure allows flexible hose routing in compact or complex machinery spaces.

Secure Insert Connection: Designed as an Insert-type fitting, it provides a strong, pull-resistant lock with hydraulic hoses.

Lightweight & Durable: Light type construction reduces weight while maintaining structural integrity, ideal for mobile equipment.

Wide Size Range: Available in sizes from 1/4" to 1 1/2" to fit various hose assemblies.

Hydraulic Hose Fitting Applications


Suitable for construction machinery (excavators, loaders), industrial hydraulics, agricultural equipment, and mobile hydraulic systems requiring reliable high-pressure connections.

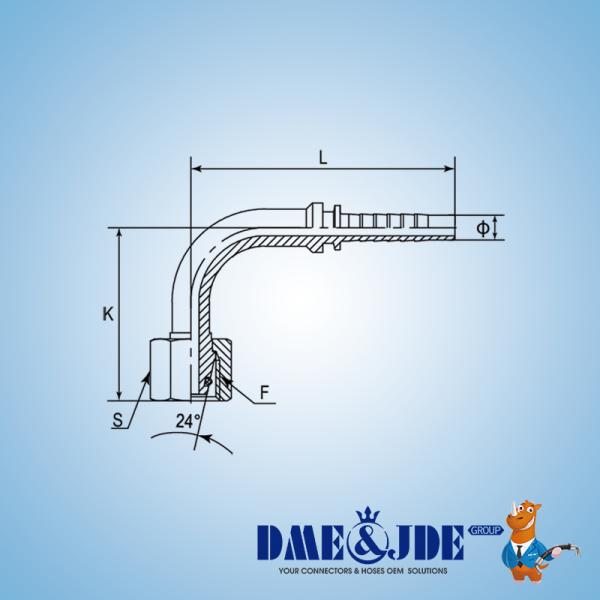

Hydraulic Hose Fitting Technical Data of DP9MFL

Technical Data of DP9MFL

-

Part Number

F (Thread)

Cone 24°

Ø

K

L

S

-

-

Metric

-

mm

mm

mm

mm

-12

DP9MFL-1204

M12X1.5

06L

1/4"

30.30

58.40

14

-14

DP9MFL-1404

M14X1.5

08L

1/4"

28.00

52.00

17

-16

DP9MFL-1604

M16X1.5

10L

1/4"

30.00

52.00

19

-16

DP9MFL-1606

M16X1.5

10L

3/8"

37.50

62.80

19

-18

DP9MFL-1806

M18X1.5

12L

3/8"

37.00

66.80

22

-22

DP9MFL-2206

M22X1.5

15L

3/8"

39.00

61.80

27

-22

DP9MFL-2208

M22X1.5

15L

1/2"

41.00

71.30

27

-26

DP9MFL-2610

M26X1.5

18L

5/8"

52.00

79.80

32

-26

DP9MFL-2612

M26X1.5

18L

3/4"

58.00

97.00

32

-30

DP9MFL-3012

M30X2

22L

3/4"

65.00

99.00

36

-36

DP9MFL-3612

M36X2

28L

3/4"

68.00

100.00

41

-36

DP9MFL-3616

M36X2

28L

1"

68.00

113.50

41

-45

DP9MFL-4520

M45X2

35L

1-1/4"

85.00

135.00

50

-52

DP9MFL-5220

M52X2

42L

1-1/4"

89.00

153.00

60

-52

DP9MFL-5224

M52X2

42L

1-1/2"

99.00

180.00

60
