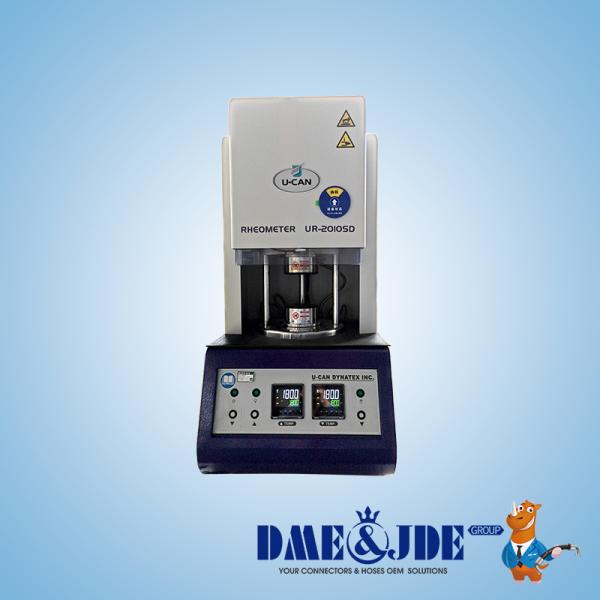

Ur-2010sd Closed No-rotor Rheometer Rubber Processing Analysis And Testing Equipment

Rheometer Rubber Product Introduction

The UR-2010SD Closed Rotorless Rheometer is a high-precision testing instrument developed for the rubber industry. It is used to accurately measure the vulcanization characteristics of rubber, elastomers and other materials, including scorch time, cure time, maximum/minimum torque, cure rate and other key process parameters. It is the core equipment for rubber product factories, tire manufacturers and material research laboratories to control production quality, optimize formulas and ensure product performance consistency.

Rheometer Rubber Product Advantages

Closed Rotorless Design: Avoid test errors caused by rotor wear, with high data repeatability, complying with international rubber testing standards
Intelligent Computer Control: Equipped with visual operation program, supporting one-click parameter setting, automatic data collection, report generation and printing
Precise Temperature Control System: Fast heating, strong temperature stability, high temperature control accuracy, ensuring the accuracy of test results
Safe Operation Design: Double-button start of the mold cavity to prevent misoperation; multiple safety protections to avoid operator burns
Stable and Durable: Modular structure design, low failure rate, simple daily maintenance, suitable for continuous high-intensity testing in factories

Rotorless Rheometer Rubber Operating Procedure

Power-on Preheating: Turn on the equipment power, the equipment automatically heats up and preheats, turn on the computer at the same time, and set the equipment status to running

Program Login and Parameter Setting: Double-click the rheometer icon on the desktop, enter the administrator password to log in to the system, check the equipment connection, fill in the test parameters in the rubber basic data column, and click Execute Test to enter the main operation screen

Sample Loading and Testing: After the temperature is stable, place the rubber material lined with release paper in the center of the mold cavity, press the double start buttons with both hands at the same time, the mold cavity closes, and the test starts automatically; after reaching the set time, the mold cavity automatically rises, and take out the sample with tweezers

Data Processing: Save or print the test data, and repeat the operation for the next sample test

Shutdown Process: After completing multiple sets of tests, exit the operation program and turn off the host power
