Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant
Specifications
Brand Name :
DME&JDE
Model Number :
ECO
Certification :
MSHA, BV, GOST, IATF 16949, ISO 9001, ISO 14001, ISO 45001, DAKKS, SGS, MA, DEKRA
Place of Origin :
China
MOQ :
2000m
Price :
0.8-2.7usd/meter
Payment Terms :
T/T
Supply Ability :
8000m/day
Delivery Time :
20days
Packaging Details :
carton
Product Name :
Plastic Spiral Wrap
Surface :
Cambered Surface
Material :
HDPE, PP, PVC
Color :
black, red, yellow or customsize
Model NO. :
spiral wrap
Features :
Fire Resistance / Flame Retardant
Length :
20m, 50m, 100m
Temperature :
-50 - 100℃
Application :
Hydraulic Hose, Air Hoses, Cable
Inner Diameter :
8mm to 200mm
Description

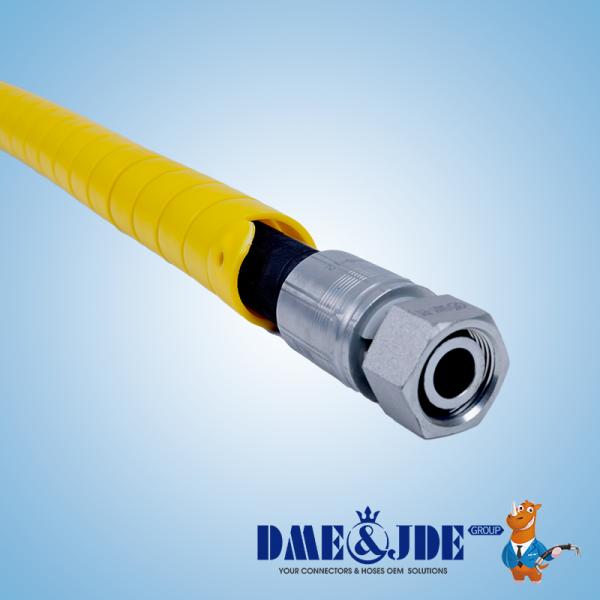

Cambered Surface Plastic Spiral Wrap Protector | Safe Protector

Plastic Spiral Wrap Product Name:

DME&JDE cambered surface plastic spiral warp protector, as its name implies, is a kind of spiral hose guard with a cambered surface and the edge thickness is thinner than that of the center. When the cambered surface and the flat surface plastic spiral warp protector have the same inner diameter, their center thickness is also the same. If you do not want your hose to add more weight, you may choose cambered surface plastic spiral warp protector.

Plastic Spiral Wrap Material & Features & benefits
• Polypropylene (PP).
• Exceptional anti-crushing performance. [AS 1145:Test passed]
• High abrasion resistance. [ISO 6954:Test passed]
• Long life & Good resistance to UV rays. [ISO 4892-2 :Test passed
• Fire Reistance / Flame retardant [ISO 1210 :Test passed
• Easy to fit.
Specification of Cambered Surface Plastic Spiral Warp Protector
Type (mm) I.D. (mm) O.D. (mm) W (mm) P (mm) Recommended Hose Range (mm) Length (m/roll)
D&J-HDPE-2-8 8.0 11.0 1.5 10.0 8/12 2/20/50/100/200
D&J-HDPE-2-10 10.0 12.8 1.4 11.0 10/14 2/20/50/100/200
D&J-HDPE-2-12 12.0 15.0 1.5 12.0 12/16 2/20/50/100/200
D&J-HDPE-2-14 14.0 17.0 1.5 13.0 14-18 2/20/50/100/200
D&J-HDPE-2-16 16.0 19.6 1.8 15.0 16-20 2/20/50/100/200
D&J-HDPE-2-18 18.0 21.6 1.8 16.0 18-22 2/20/50/100
D&J-HDPE-2-20 20.0 24.0 2.0 18.0 20-24 2/20/50/100
D&J-HDPE-2-21 21.0 25.0 2.0 18.0 21-25 2/20/50/100
D&J-HDPE-2-22 22.0 26.0 2.0 18.0 22-25 2/20/50/100
D&J-HDPE-2-23 23.0 27.0 2.0 19.2 23-28 2/20/50/100/150
D&J-HDPE-2-24 24.0 28.0 2.0 21.0 24-28 2/20/50/100/150
D&J-HDPE-2-25 25.0 29.8 2.4 21.5 25-30 2/20/50/100/150
D&J-HDPE-2-28 28.0 33.2 2.6 23.0 28-32 2/20/50/100/150
D&J-HDPE-2-30 30.0 34.8 2.4 22.5 30-35 2/20/50/100
D&J-HDPE-2-32 32.0 37.6 2.8 23.0 32-38 2/20/50/100
D&J-HDPE-2-35 35.0 40.6 2.8 24.0 35-40 2/20/50/100
D&J-HDPE-2-38 38.0 44.0 3.0 25.0 38-43 2/20/50/100
D&J-HDPE-2-40 40.0 47.0 3.5 27.0 40-45 2/20/50
D&J-HDPE-2-42 42.0 49.0 3.5 25.0 42-48 2/20/50
D&J-HDPE-2-45 45.0 53.0 4.0 28.0 45-50 2/20/50
D&J-HDPE-2-48 48.0 56.0 4.0 28.0 48-52 2/20/50
D&J-HDPE-2-50 50.0 59.0 4.5 29.0 50-55 2/20/50
D&J-HDPE-2-52 52.0 61.0 4.5 29.0 52-58 2/20/50
D&J-HDPE-2-55 55.0 64.0 4.5 30.0 55-60 2/20/50
D&J-HDPE-2-60 60.0 69.0 4.5 30.0 60-65 2/20/50
D&J-HDPE-2-63 63.0 72.0 4.5 30.0 63-68 2/20/50
D&J-HDPE-2-65 65.0 74.0 4.5 30.0 65-70 2/20/50
D&J-HDPE-2-67 67.0 76.0 4.5 30.0 67-72 2/10/20
D&J-HDPE-2-70 70.0 79.0 4.5 34.0 70-75 2/10/20
D&J-HDPE-2-74 74.0 84.0 5.0 34.0 74-80 2/10
D&J-HDPE-2-75 75.0 85.0 5.0 42.0 75-78 2/10
D&J-HDPE-2-80 80.0 91.0 5.5 45.0 80-85 2/10
D&J-HDPE-2-88 88.0 99.0 5.5 45.0 88-95 2/10
D&J-HDPE-2-90 90.0 101.0 5.5 45.0 90-97 2/10
D&J-HDPE-2-100 100.0 112.0 6.0 50.0 100-110 2/10
D&J-HDPE-2-150 150.0 162.0 6.0 38.0 150-180 2
D&J-HDPE-2-200 200.0 210.0 5.0 50.0 200-300 2

Quality Control

Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant

Certificate

Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant

Related Product

Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant

Material Support

Cambered Surface Plastic Spiral Wrap Protector Safe Protector Flame Retardant

FAQ

1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.

2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.

3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.

4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.

5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.

6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.

7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
