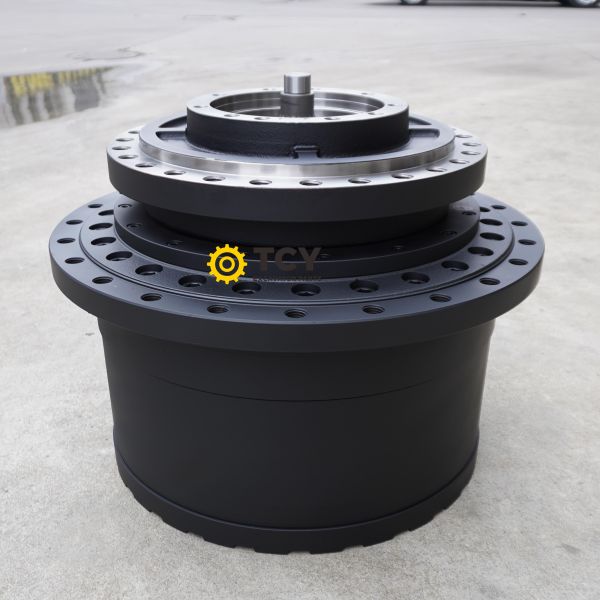

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX
Specifications
Brand Name :
TCY
Model Number :
GM85
MOQ :
1
Price :
1000-3000
Payment Terms :
T/T,Alipay,Wechat ...etc.,
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Part number :
LS53D00007F1
Part name :
MOTOR REDUCT ASSY
Apply for :
SK460-8 SK485-8 SK480-8
Wooden box size :
63*63*76
Weight :
480kg
Condition :
new
MOQ :
1
Application :
Excavator Final drive
Description

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

Product description

Model: SK460-8 SK485-8 SK480-8

Part name:Travel Motor with gearbox

Part NO:LS53D00007F1

MOQ:1PCS

Packing:Wooden case

Place of Origin:Made in China

Aftersale service provided:Online support

Apply To:Excavator Final Device

Delivery Time: 1-3 days Or negotiate

Note: Other models can be consulted online

Product

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

Pos. Part No Qty Parts name
- 130426-00010 [1] -
- 130426-00010A [1] -
- K1038203 [1] SWING REDUCTION GEAR ASS'Y
1 K1038206 [1] CASING
10 K1038205 [1] CARRIER NO.2
11 2114-1901A [4] WASHER;THRUST NO.2
12 104-00050 [4] GEAR;PLANET NO.2
13 110-00219 [4] BUSH NO.2
14 K1038208 [4] PIN NO.2
15 S5741200 [4] PIN;SPRING
16 S0121061 [1] BOLT
17 114-00548 [1] WASHER;THRUST NO.3
18 104-00048 [1] GEAR;SUN NO.2
19 2705-1030 [4] PIN;KNOCK
2 K1038207 [1] SHAFT;DRIVE
20 100502-00001 [1] -
20 K1038204 [1] CARRIER NO.1
21 114-00527 [4] WASHER;THRUST NO.1
21 114-00527 [3] WASHER;THRUST NO.1
22 130424-00001 [4] -
22 104-00049A [3] GEAR;PLANET NO.1
23 120501-00009 [4] -
23 123-00435A [3] PIN ASS'Y NO.1
24 120107-00002 [16] -
24 S2217471 [16] BOLT;SOCKET
25 130425-00001 [1] -
25 104-00047A [1] GEAR;SUN NO.1
26 S6500450 [1] RING;SNAP
27 2181-1116D2 [2] PLUG
28 2181-1116D4 [1] PLUG
29 2140-1406 [1] PIPE;LEVEL GAUGE
3 2412-1040 [1] PLATE
30 2119-1065 [1] GAUGE;LEVEL
31 120811-00001 [1] -
31 S5231090 [1] WASHER;DOUBLE TAP
32 120-00144 [8] BOLT
33 120816-00001 [1] -
4 2109-9033 [1] BEARING;ROLLER
5 K1038685 [1] PLATE;COVER
51 K9008337 [1] CARRIER NO1 ASS'Y
51 100502-00022 [1] -
52 K9008338 [1] CARRIER NO2 ASS'Y
6 S6500380 [3] RING;SNAP
6 S6500380 [4] RING;SNAP
7 2180-1254 [1] SEAL;OIL
8 109-00174 [1] BEARING;ROLLER
9 K1038210 [1] GEAR;RING
9 130422-00010 [1] -
9 130422-00010A [1] -

Exhibition

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

Shipping

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

LS53D00007F1 MOTOR REDUCT ASSY FOR SK460-8 SK485-8 SK480-8 EXCAVATOR TRAVEL REDUCTION GEARBOX

FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
