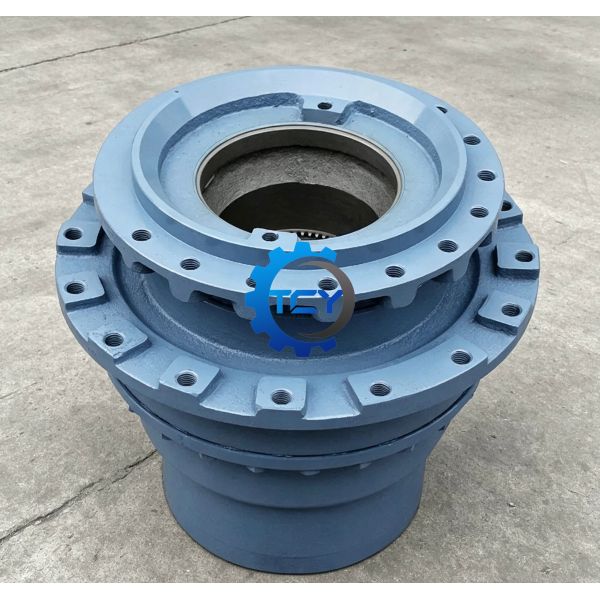

9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
9066008 Travel Gearbox FOR EX200-1
Specifications
Brand Name :
TCY
Model Number :
EX200-1
Place of Origin :
made in china
MOQ :
1
Price :
500-3000
Payment Terms :
T/T,Alipay,Wechat ...etc.,
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Part number :
9066007 9066008
Part name :
TRAVEL REDUCTION GEAR ASSY
Apply for :
EX200-1
Wooden box size :
55*55*60
Weight :
250kg
Condition :
new
MOQ :
1
Application :
Excavator Final drive
Description

9066008 Travel Gearbox FOR EX200-1

Model: EX200-1

Part name:Travel gearbox

Part NO:9066007 9066008

MOQ:1PCS

Packing:Wooden case

Place of Origin:Made in China

Aftersale service provided:Online support

Apply To:Excavator Final Device

Delivery Time: 1-3 days Or negotiate

Note: Other models can be consulted online

9066008 Travel Gearbox FOR EX200-1

9066008 Travel Gearbox FOR EX200-1

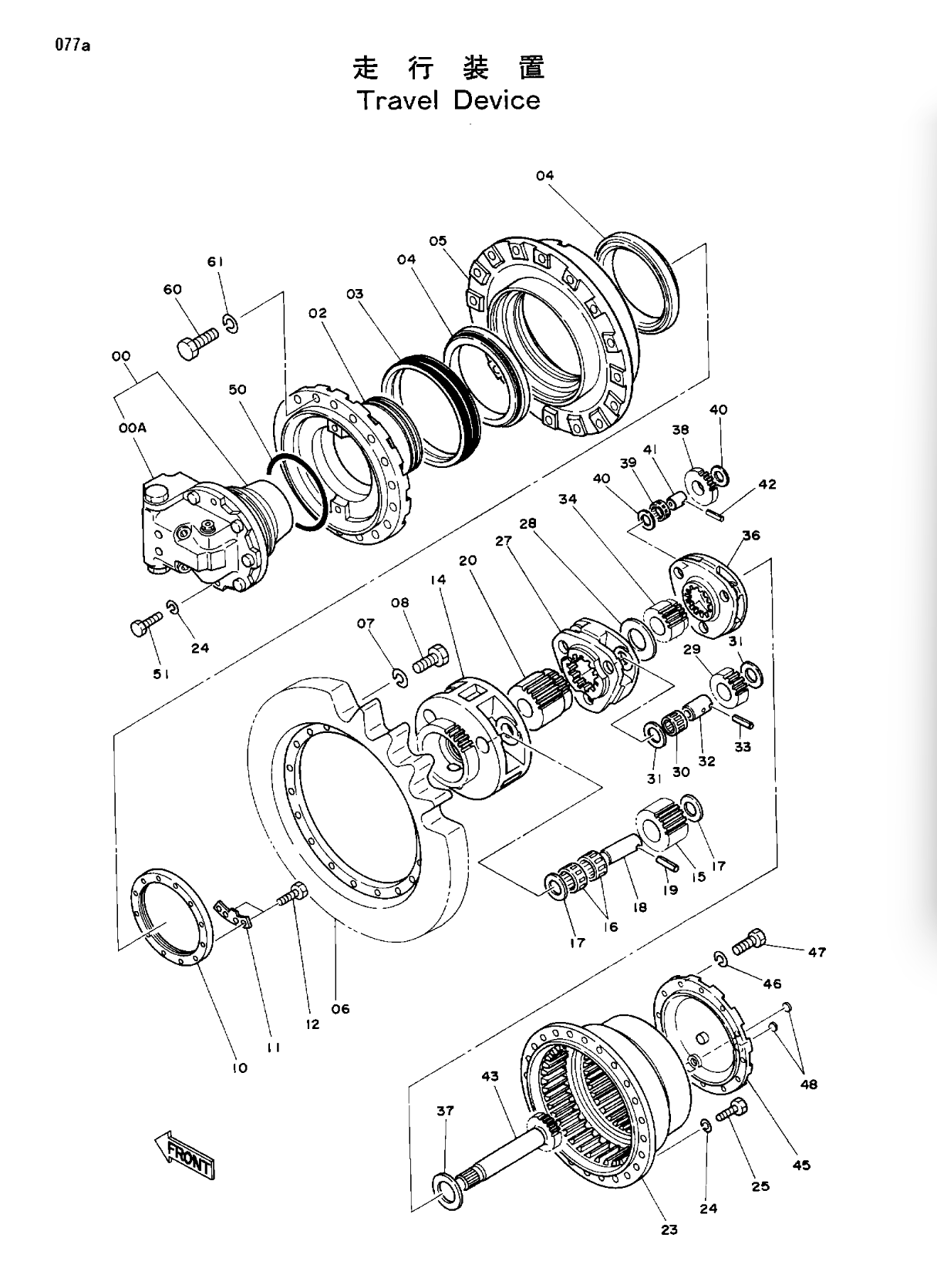

Pos. Part No Qty Parts name
0 9065944 [1] MOTOR;OIL
00-51. 9066008 [2] TRAVEL DEVICE ASS'Y
00A. 9065943 [1] VALVE;BRAKE
2 1009855 [1] HOUSING
3 4514259 [1] SEAL;GROUP
4 4115169 [2] BRG.;ROL
5 1010010 [1] DRUM
6 1010204 [1] SPROCKET
7 A590920 [16] WASHER;SPRING
8 J932055 [16] BOLT
10 3032083 [1] NUT
11 4178862 [1] PLATE;LOCK
12 J901020 [2] BOLT
14 1009857 [1] CARRIER
15 3034323 [3] GEAR;PLANETARY
16 4183818 [6] BRG.;NEEDLE
17 4135227 [6] PLATE;THRUST
18 4139975 [3] PIN
19 4139998 [3] PIN;SPRING
20 3034324 [1] GEAR;SUN
23 1010509 [1] GEAR;RING
24 A590916 [26] WASHER;SPRING
25 J931645 [24] BOLT
27 2022210 [1] CARRIER
28 4183819 [1] SPACER
29 3034325 [3] GEAR;PLANETARY
30 4126657 [3] BRG.;NEEDLE
31 4192982 [6] PLATE;THRUST
32 4144558 [3] PIN
33 4169567 [3] PIN;SPRING
34 3034326 [1] GEAR;SUN
36 2020865 [1] CARRIER
37 4172391 [1] SPACER
38 3031946 [3] GEAR;PLANETARY
39 4172392 [3] BRG.;NEEDLE
40 4196488 [6] PLATE;THRUST
41 4172398 [3] PIN
42 4169566 [3] PIN;SPRING
43 2020862 [1] SHAFT;PROP.
45 2022683 [1] COVER
46 A590912 [12] WASHER;SPRING
47 M221228 [12] BOLT
48 94-2013 [2] PLUG
50 4174183 [1] O-RING
51 J931685 [2] BOLT
60 J932080 [28] BOLT
61 A590920 [28] WASHER;SPRING

9066008 Travel Gearbox FOR EX200-1

Exhibition

9066008 Travel Gearbox FOR EX200-1

Packing

9066008 Travel Gearbox FOR EX200-1

9066008 Travel Gearbox FOR EX200-1

FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
