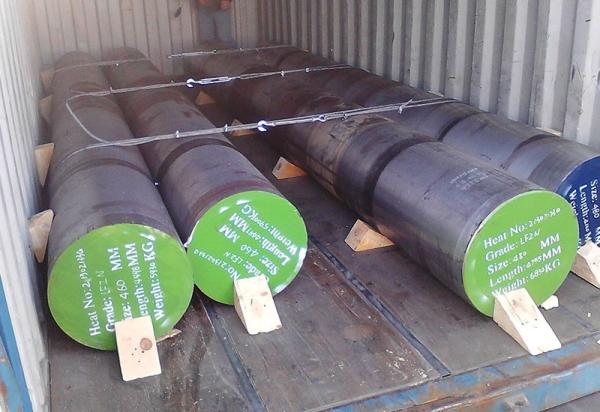

ISO 432HB 60MnSiCr4 DIN 17350 800mm Tool Steel Bar
ISO 432HB 60MnSiCr4 DIN 17350 800mm Tool Steel Bar
Specifications
Brand Name :
UST
Model Number :
DIN 60MNSICR4/ DIN 17350 (1980)
Certification :
ISO
Place of Origin :
CHINA
MOQ :
MOQ3-5 TONS
Payment Terms :
L/C, T/T
Supply Ability :
800 ton/month
Delivery Time :
4-6 weeks
Packaging Details :
Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.
Keyword :
TOOL STEELS FROM CHINA SUPPLIER
Sale :
Hot sale
Size :
10mm-800mm
Shapes :
Round, flat, block
Description

GERMANY DIN 60MNSICR4/ DIN 17350 (1980) TOOL STEELS FROM CHINA SUPPLIER

The high quality Germany DIN 60MnSiCr4 material is one of the more steel grades we supply, DIN DIN 17350 (1980),Tool Steels; Technical Conditions of Delivery. 60MnSiCr4 is our main production grade, which has been approved by customers in many countries since its initial production, including our 60MnSiCr4 round bars, flat bar, forgings, fasteners, tubes, wires, strips, sheets & Plates, as well as a variety of profiles, professional high precision auto-lathe processing manufacturer of clinching fasteners, axes, standoffs, screws, studs, nuts, bolt, OEM parts and special shaped turning partsthe state of delivery includes quenched and tempered, annealed, machined semi-finished products, we also have strict management of the packaging, to avoid material damage from transportation. We are the best supplier of 60MnSiCr4 materials, and we are willing to develop together with customers from all over the world.

Also includes 60MnSiCr4 steel material norm, chemical composition, mechanical properties, datasheet, 60MnSiCr4 equivalent, heat treatment and temperature process of 60MnSiCr4, The peak hardness can be achieved, Contains all of the specification, welding properties, let us in 60MnSiCr4 this steel grade have a more comprehensive understanding.

Chemical composition (wt.%) of 60MnSiCr4

Elements Min.(≥) Max.(≤)
C 0.58 0.65
Si 0.80 1.00
Mn 0.80 1.20
P - 0.030
S - 0.030
Cr 0.20 0.40
Mo - -
V - -

Mechanical Properties of 60MnSiCr4

Rp0.2 (MPa) Rm (MPa) Impact
KV (J)		 Elongation
A (%)		 A Z (%) Delivery Hardness HB
439 (≥) 636 (≥) 24 31 22 Solution & Aging, Ann, Ausaging, Q+T 432
