6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
HX-GTY 6×8
Certification :
CE/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
USD 1500-2000 /UNIT
Payment Terms :
T/T
Supply Ability :
5000 UNITS PER YEAR
Delivery Time :
7-15 working days
Packaging Details :
Naked packaging
Product Name :
Hydraulic dock leveler
Lip Board Thickness :
15mm Anti-slip grooved plate
Operation Method :
Hydraulic
Country of Origin :
Made in China
Material :
Steel
Adjustment Range :
Up to 400 mm,Down to 300 mm
Application :
Loading and unloading goods between trucks and warehouse
Load :
Up to 20 T
Working lift :
More Than 20000times
Power supply :
380V/50HZ
Description

6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods

Product Key Attributes

Parameter/FeatureSpecification Details
Carrying Capacity6-20tons
Warranty12Months
MaterialSteel
CertificationCE/ISO
Adjustment RangeUp to 400 mm,Down to 300 mm


What is the Hydraulic Dock Leveler?
Hydraulic height adjustment plate is a platform or pad driven by a hydraulic system and used for precise height adjustment. It is widely used in industries, logistics, automobiles, stage equipment and other fields. Its core principle is to use hydraulic cylinders or hydraulic pumps to provide power to achieve a stable and efficient lifting function.
What are the Benefits of the Hydraulic Dock Leveler?
Safe and reliable
The hydraulic system comes with a self-locking function, which can keep the position unchanged even if the power is cut off or oil leakage.Equipped with explosion-proof valve and overload protection to prevent accidental falls.

Adapt to harsh environments
The hydraulic system is resistant to high temperature, dust and vibration, and is suitable for complex working conditions such as factories, mines, outdoors and other conditions.

Low maintenance requirements
Compared with pneumatic systems (needed to air compressors) or electric systems (easy to wear), hydraulic systems are simple to maintain, and only regular inspection of oil circuits and seals are required.

Energy-saving and efficient
Energy is consumed only when lifting and lowering, and no power consumption is required when stationary (the electric system needs to be continuously powered and maintained at the position).
Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
ModelEquipment specifications (mm)Load Capacity (t)Pit size (mm)Adjustment range (mm)
HX-GTY6×61830(W)×1830(L)×495(H)6-20T1870(W)×1830(L)×500(H)+400/-300
HX-GTY6.5×61980(W)×1830(L)×495(H)6-20T2020(W)×1830(L)×500(H)+400/-300
HX-GTY7×62130(W)×1830(L)×495(H)6-20T2170(W)×1830(L)×500(H)+400/-300
HX-GTY6×81830(W)×2280(L)×495(H)6-20T1870(W)×2280(L)×500(H)+400/-300
HX-GTY6.5×81980(W)×2280(L)×495(H)6-20T2020(W)×2280(L)×500(H)+400/-300
HX-GTY7×82130(W)×2280(L)×495(H)6-20T2170(W)×2280(L)×500(H)+400/-300
HX-GTY6×101830(W)×2850(L)×495(H)6-20T1870(W)×2850(L)×500(H)+400/-300
HX-GTY6.5×101980(W)×2850(L)×495(H)6-20T2020(W)×2850(L)×500(H)+400/-300

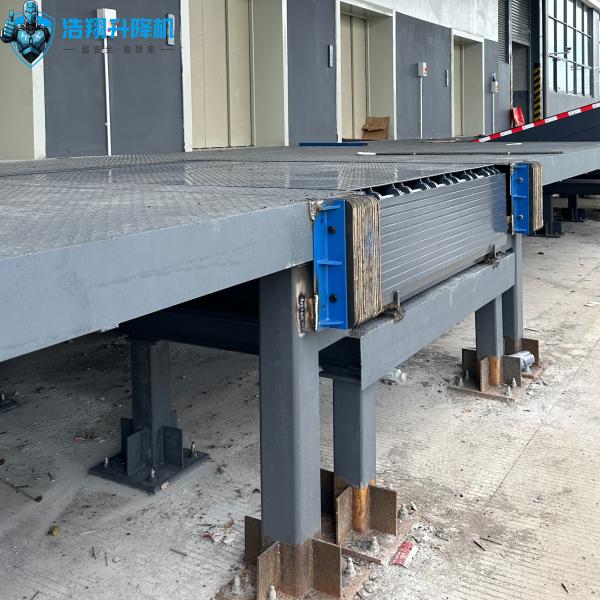

What does the Hydraulic Dock Leveler look like?
6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
6-20tons Steel Structure Hydraulic Dock Leveler Loading And Unloading Goods
What is the name of our company and where we are?
Haoxiang: Pioneering Hydraulic Lifting Solutions Since 2005
Strategically located in Zhongshan's manufacturing hub, our 21,500㎡ state-of-the-art facility produces industry-leading hydraulic equipment. As a government-recognized high-tech enterprise, we combine 30 million RMB capital strength with German-engineered precision.
Differentiators:
Product Portfolio: Full range of hydraulic lifts, dock levelers, and goods lifts
Technology: AI-powered predictive maintenance systems for equipment
Safety: Compliance with EN 1570 and ASME B30.1 standards
Capacity: 15,000 units/year production capacity with 89% automation rate
Service: 24/7 national support with 45 mobile service units
