Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo
Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo
Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo
Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
HX-GTY 6×8
Certification :
CE/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
USD 1500-2000 /UNIT
Payment Terms :
T/T
Supply Ability :
5000 UNITS PER YEAR
Delivery Time :
7-15 working days
Packaging Details :
Naked packaging
Product Name :
Hydraulic dock leveler
Country of Origin :
China
Power supply :
220v/380v
Working lift :
More Than 20000times
Operation Method :
Hydraulic
Lip Board Thickness :
15mm Anti-slip grooved plate
Color :
Blue,Customizable
Articulated :
Open / Close
Device Size :
W1980 × L1830× H495mm
Description

Factory Supply Automatic Steel Plate Loading and Unloading Hydraulic Dock Leveler for Cargo

Product key attributes

Parameter/Feature Specification Details
Product Name Hydraulic Dock Leveler
Core Components Motor, Oil Pump
Device Size W1980 × L1830× H495mm
Adjustment Range Up to 400 mm,Down to 300 mm
Application Loading and unloading goods between trucks and warehouse
Power Source Electric
Certification CE/ISO

What is the Hydraulic Dock Leveler?

Maximize logistics efficiency with this intelligent dock leveler featuring:

Adaptive hydraulic system for precise control (single/dual cylinder modes)
±300mm self-leveling adjustment for varying vehicle heights
Patented C-channel understructure with 39% enhanced rigidity
Maintenance-friendly design with spike supports and 3-button control
Industrial-grade power system with emergency stop protection
Full-height safety guards meeting OSHA requirements
2-piece rubber buffers for smooth docking transitions

What are the Benefits of the Hydraulic Dock Leveler?

Robust Construction: 15mm lip board and fixed scissor lift design handle 6-20T loads
Flexible Adjustment: ±700mm height range (+400/-300mm) accommodates various vehicles
Powerful Hydraulics: Electric motor/oil pump system operates at 220v/380v
Certified Safety: CE/ISO compliance with 1-year warranty
Customizable Design: Choose green finish or match your corporate colors
Industrial-Grade: Over 20,000 working cycles for demanding environments

Products model and parameter series of the Hydraulic Dock Leveler.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Equipment specifications (mm) Load Capacity (t) Pit size (mm) Adjustment range (mm)
HX-GTY6×6 1830(W)×1830(L)×495(H) 6-20T 1870(W)×1830(L)×500(H) +400/-300
HX-GTY6.5×6 1980(W)×1830(L)×495(H) 6-20T 2020(W)×1830(L)×500(H) +400/-300
HX-GTY7×6 2130(W)×1830(L)×495(H) 6-20T 2170(W)×1830(L)×500(H) +400/-300
HX-GTY6×8 1830(W)×2280(L)×495(H) 6-20T 1870(W)×2280(L)×500(H) +400/-300
HX-GTY6.5×8 1980(W)×2280(L)×495(H) 6-20T 2020(W)×2280(L)×500(H) +400/-300
HX-GTY7×8 2130(W)×2280(L)×495(H) 6-20T 2170(W)×2280(L)×500(H) +400/-300
HX-GTY6×10 1830(W)×2850(L)×495(H) 6-20T 1870(W)×2850(L)×500(H) +400/-300
HX-GTY6.5×10 1980(W)×2850(L)×495(H) 6-20T 2020(W)×2850(L)×500(H) +400/-300

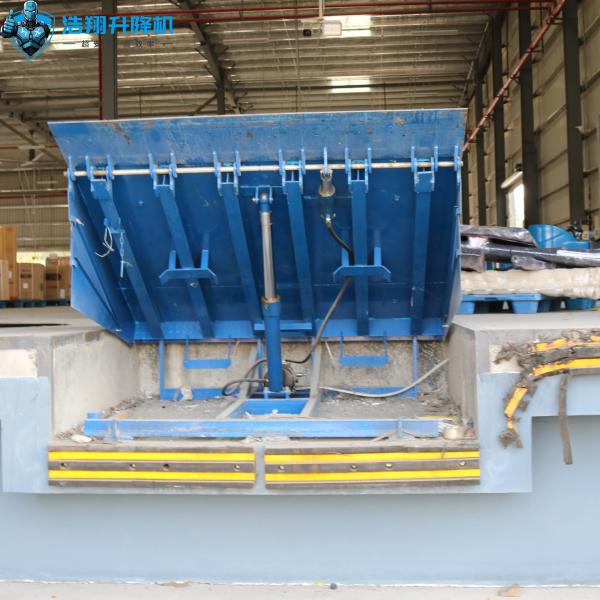

What does the Hydraulic Dock Leveler look like?

Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo

Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo

Automatic Loading Bay Dock Levellers Lifts Steel Plate Loading And Unloading For Cargo

What is the name of our company and where we are?

Guangdong Haoxiang Machinery Manufacturing Co., Ltd. is located in Xiaolan Town, Zhongshan City. We are a high-tech enterprise focusing on hydraulic logistics equipment,a manufacturer with a special equipment license, a registered capital of 30 million, an annual output value of over 100 million, a large production workshop, and a plant area of 21,500 square meters. We take "creating safe and convenient lifting products for users" as our original intention, and mainly engage in hydraulic lifting platforms, etc., positioning "super safe and efficient lifts".


The product design is novel and the operation is stable, and they are used in many fields such as logistics. With advanced equipment and fine management, We are a benchmark in the industry such as warehousing management. We have served more than 40,000 companies and 45 installation teams,which provide 2-hour door-to-door service in the Pearl River Delta and 24-hour door-to-door service nationwide, so that you can use our products without any worries.
