2T Upright Fixed Scissor Lift Platform Steel Frame For Warehouse And Assembly Lines
2T Upright Fixed Scissor Lift Platform Steel Frame For Warehouse And Assembly Lines
Specifications
Brand Name :
HAOXIANG BRAND
Model Number :
SJG2-1.8
Certification :
CS/ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
USD 1500-2500/UNIT
Payment Terms :
T/T
Supply Ability :
2000 units per year
Delivery Time :
7-15 working days
Packaging Details :
Naked packaging
Travel Height :
1.8m
Max Load Capacity :
2000kg
Platform Height :
6.5m
Load Capacity :
2000kg
Overall Dimensions :
2000*2000*mm
Platform :
Anti-skid
Product Name :
Fixed Scissor Lifting Platform
Country of Origin :
China
Control Mode :
Hydraulic
Description

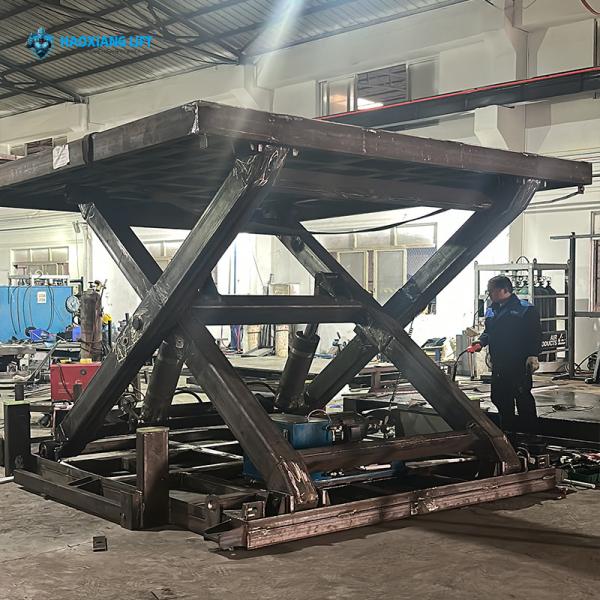

Fixed Scissor Lift Platform with 2T Load Capacity, 1.8m Lifting Height, Steel Frame, for Warehouse and Assembly Lines

The Fixed Scissor Lift Platform is a rugged and versatile solution for lifting heavy goods to fixed heights within factories, warehouses, and production lines. Built with durable Q235 steel and a robust scissor structure, this platform provides stable lifting for loads up to 3000kg. Common lifting heights range from 0.8m to 2m, and platform dimensions can be tailored to fit specific workspace requirements. This product enhances workflow efficiency by minimizing the need for manual handling and streamlining cargo transfer.

Technical Parameter
Specifications, sizes and colors can be customized according to customer requirements
Model Rated load (kg) Lifting stroke (mm) Maximum height (mm) Lower height (mm) Table size (mm) Lifting time Motor power (kw)
SJG1-1.7 1000 1700 2150 450 2500×2000 20 3
SJG10-1.7 10000 1700 2500 800 4000×2000 30 11
SJG3-4 3000 3000 3650 650 1500×6000 40 5.5
SJG1-4 1000 4000 4600 600 3100×5000 60 4
SJG2-5 2000 5000 5900 900 7000×3000 60 5.5
SJG3-6 3000 6000 7000 1000 6000×5000 70 7.5
SJG5-1.7 5000 1700 2350 650 6000×2000 40 7.5
