Open Type HB30G Hydraulic Breaker with 5193J Impact Energy and 150 mm Chisel for 25-35 Tons Excavator
Open Type HB30G Hydraulic Breaker with 5193J Impact Energy and 150 mm Chisel for 25-35 Tons Excavator
Specifications
Brand Name :
SEWOOMIC
Model Number :
HB30G / GCB300
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100units/month
Delivery Time :
20-25 days
Packaging Details :
Wooden Box
Impact Rate :
300-450
Working Flow :
175-220 L/min
Operating Pressure :
160-180 Bar
Applicable Industries :
Construction/demolition Machinery
Warranty :
1 Year
Suitable Excavator :
25-35 Ton
Operating Weight :
2519kg
Impact Energy :
5193J
Hose Diameter :
1Inch
Noise Level :
120 DB
Tool Diameter :
150 mm
Description

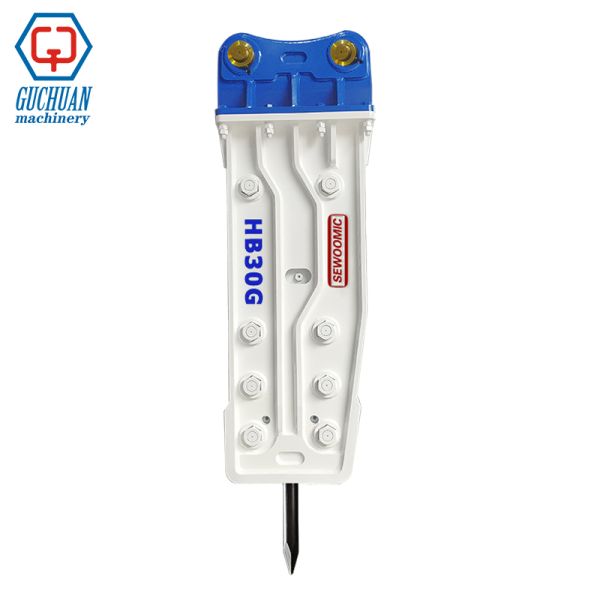

Guchuan Open Type HB30G Hydraulic Breaker with 150 mm Chisel for 25-35 Tons Excavator

Maximize efficiency with the Guchuan HB30G hydraulic breaker. Delivering 5193 J impact energy for 25-35 ton excavators. Expertly engineered for heavy-duty demolition, quarrying, and rock breaking.

Open Type HB30G Hydraulic Breaker with 5193J Impact Energy and 150 mm Chisel for 25-35 Tons Excavator
Technical Specifications
Model No. Chisel Diameter (mm) Excavator Weight (ton) Body Weight (kg) Working Flow Rate (L/min) Working Pressure (Bar) Impact Rate (bpm)
HB30G/GCB300 150 25-30 2305 160-190 160-180 350-700
Application Scenarios
  • Primary Rock Breaking: Efficiently fracturing large boulders and bedrock in quarries
  • Heavy-Duty Demolition: Breaking down thick concrete foundations, bridge piers, and reinforced structures
  • Trench Rock Excavation: Clearing obstructive rock layers for pipeline and utility installation
  • Mining & Tunneling: Secondary reduction of oversized materials and shaping tunnel profiles
Core Technology Features
Advanced Open-Type Design

Our open-type structure prevents nitrogen and oil chamber contamination, ensuring enhanced heat dissipation, simplified maintenance, and proven durability for high-intensity continuous operation.

Auto-Frequency & Pure Hydraulic Impact Technology

Features self-developed automatic frequency control that adjusts impact rate (350-600 BPM) based on material hardness. Pure hydraulic system provides consistent, controllable power with lower operating pressure demands.

Carrier-Optimized Performance

Precision-matched flow (160-190 L/min) and pressure (160-180 Bar) for 25-35 ton excavators, ensuring maximum power without overloading hydraulic systems.

Key Advantages
  • Superior Impact Energy: 5193 Joules for top-tier breaking force
  • Exceptional Reliability: High-strength, heat-treated steel construction for long service life
  • Higher Cost-Efficiency: Lower maintenance requirements and reduced downtime
  • User & Environment Friendly: Controlled noise levels and minimized vibration
  • Global Standard Compatibility: Easy mounting on all major 25-35 ton excavator brands
