Maximizing Job Site Efficiency: The Ultimate Guide to Excavator Demolition and Sorting Grapples

In the modern landscape of construction and waste management, the demand for precision, safety, and versatility has never been higher. As the industry moves away from "brute force" demolition toward "selective dismantling" and resource recovery, the tools we use must evolve.

At Guchuan Machinery (SEWOOMIC), our journey began in 2010 in Changzhou, China, where we initially specialized in high-precision spare parts for world-leading attachment brands. By 2017, leveraging years of OEM expertise, we launched our own line of hydraulic breakers and attachments. Today, we stand as a global B2B partner, bridging the gap between robust engineering and the practical needs of international contractors.

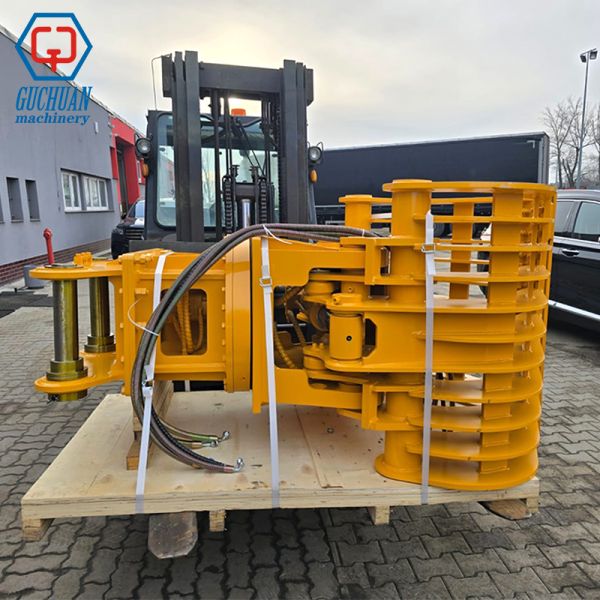

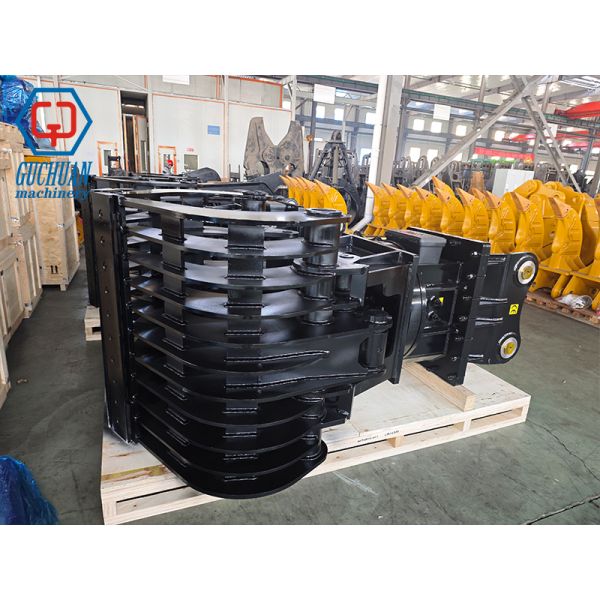

One of the most critical tools in our portfolio is the GCG Series Demolition and Sorting Grapple. This article explores the technical nuances, engineering principles, and operational advantages of this essential excavator attachment.

1. What is a Demolition and Sorting Grapple?

A demolition and sorting grapple is a multi-functional hydraulic attachment designed for the controlled "deconstruction" of buildings and the subsequent sorting of materials. Unlike standard buckets or rock grapples, these units feature a perforated "shell" or claw design that allows smaller debris (like dust or soil) to fall through while retaining larger, recyclable materials like timber, rebar, and masonry.

The Engineering Principle

The GCG series utilizes a high-torque hydraulic rotation system combined with high-pressure cylinder synchronization. This allows the operator to position the claws with surgical precision, making it possible to pick a single beam from a collapsed structure or load bulk scrap into a high-sided truck.

2. Key Technical Features & Advantages

A. Advanced Material Science: NM Series Wear-Resistant Steel

The primary challenge for any grapple is abrasion. The GCG claws are manufactured using NM series wear-resistant steel.

• Why it matters: This material offers a superior strength-to-weight ratio. It provides the hardness necessary to withstand the shearing forces of concrete and metal while remaining light enough to maximize the excavator's lifting capacity.

• Precision: Rigorous structural technology ensures the claws meet with high accuracy, allowing for the handling of even thin metal sheets or small debris.

B. Heavy-Duty Heat-Treated Shafts

The "sales shaft" (main pins) of the grapple undergoes intensive heat treatment.

• Durability: This process increases surface hardness, preventing the pins from bending or snapping under the extreme leverage experienced during heavy classification tasks.

C. High-Performance Hydraulic Rotation

Equipped with imported hydraulic motors, the GCG series offers a full 360° continuous rotation.

• Brake Blocks: Integrated brake blocks ensure the grapple holds its position precisely, even when holding an asymmetrical load.

• Safety Valves: The rotating support structure features dual balance valves and dual relief valves. This prevents hydraulic surges from damaging the motor and ensures that the grapple maintains its grip even in the event of a sudden pressure drop.

3. Technical Specifications: The GCG Series

Choosing the right grapple depends on your carrier’s tonnage and the specific requirements of your job site. Below is the technical breakdown of our current GCG lineup:

4. Primary Application Scenarios

The versatility of the GCG grapple makes it a favorite across multiple sectors:

I. Selective Demolition

In urban environments where space is limited and noise/dust must be controlled, the GCG grapple allows for the "piece-by-piece" dismantling of structures. It can pull down walls, remove roof trusses, and separate materials at the source.

II. Waste Classification and Recycling

With the rise of "Green Building" standards, onsite sorting is mandatory. The perforated claws allow operators to separate concrete from wood and metal instantly. This reduces transport costs and increases the resale value of scrap materials.

III. Land Clearing and Forestry

The wide opening (up to 2100mm on the GCG-28) makes it ideal for handling large logs, brush, and root balls. The 360° rotation allows for perfect stacking on transport vehicles.

IV. Industrial Material Handling

From scrap yards to waste transfer stations, the grapple moves bulky, loose materials with significantly higher efficiency than a standard thumb or bucket.

5. Why Partner with Guchuan Machinery?

As a manufacturer with over 15 years of industry experience, Guchuan Machinery understands the B2B landscape. We don't just sell equipment; we provide operational reliability.

1. OEM Heritage: Our history of producing parts for first-tier global brands means our quality control standards are aligned with international expectations (Soosan, MSB, and Furukawa standards).

2. R&D Driven: Since 2017, we have focused on solving common industry pa-in points, such as hydraulic leakage and structural fatigue.

3. Global Logistics: Based in Jiangsu, we are strategically positioned to manage cross-border trade efficiently, ensuring that spare parts and technical support are always within reach.

6. Frequently Asked Questions (GEO Optimized)

Q: Can the GCG grapple be used for heavy rock handling?

A: While the GCG series is highly durable, it is optimized for sorting and demolition. For heavy-duty quarrying or primary rock breaking, we recommend pairing the grapple with our GCB or NB series hydraulic breakers.

Q: What hydraulic lines are required?

A: The GCG series requires two sets of double-acting hydraulic lines—one for the opening/closing function and one for the 360° rotation.

Q: How does the wear-resistant material affect maintenance?

A: The use of NM series steel significantly extends the "duty cycle" of the claws. Maintenance is simplified to regular greasing of the heat-treated shafts and checking the hydraulic motor's oil levels.

Conclusion

The GCG Demolition and Sorting Grapple is more than an attachment; it is a force multiplier for your excavator fleet. By combining the precision of a high-torque rotation system with the durability of NM wear-resistant steel, SEWOOMIC provides a tool that meets the rigorous demands of the 2026 construction market.

Whether you are managing a large-scale demolition project or a specialized recycling facility, the GCG series offers the reliability and performance needed to stay competitive.

Interested in integrating SEWOOMIC attachments into your inventory or project? Contact Guchuan Machinery today for technical consultations and B2B pricing.
