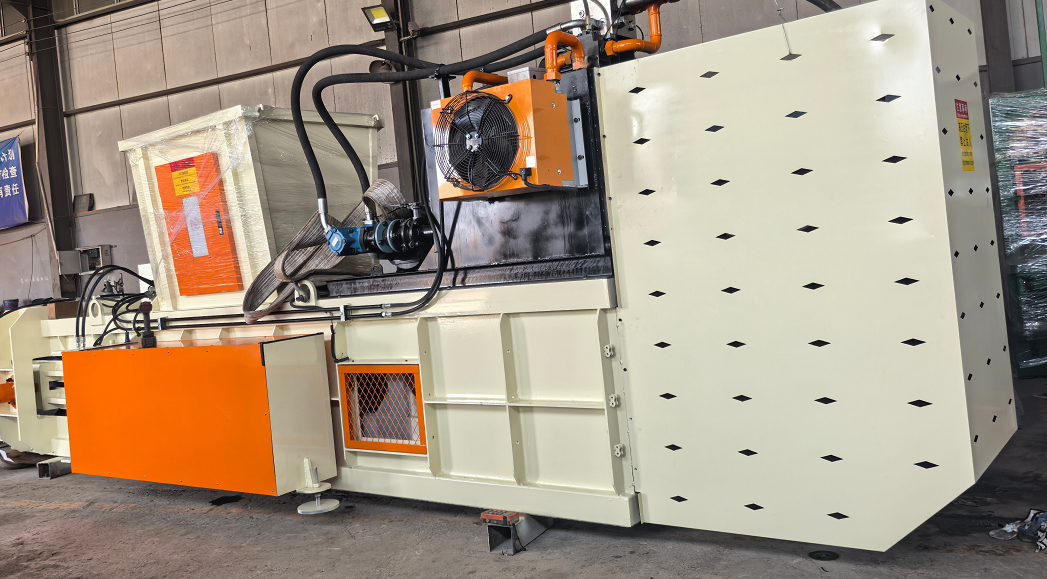

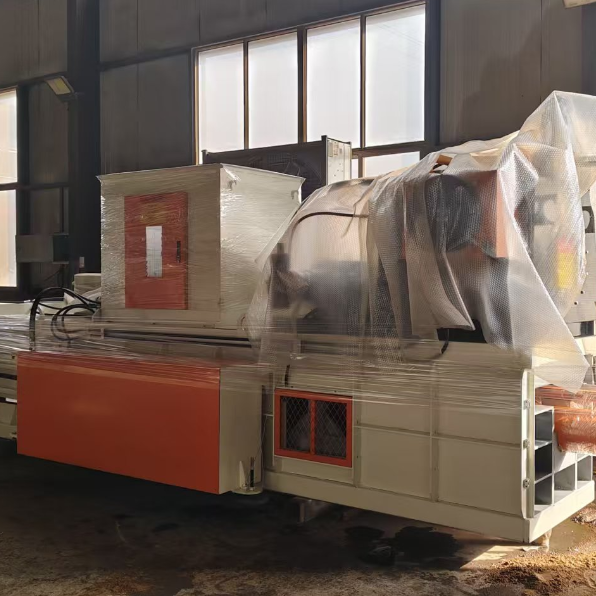

Electric Hydraulic Waste Baler Machine With 20-250 Tons Compression Force
Electric Hydraulic Waste Baler Machine With 20-250 Tons Compression Force
Specifications
Model Number :
HUAWEI 30T
Chamber size :
customizable
Supply Ability :
30 set monthly
Delivery Time :
30 working days
Price :
negotiate
Packaging Details :
wooden
Bale weight :
400kg-700kg,600~800 kg,30-50 KG,1100kg
Payment Terms :
T/T
Driven type :
Hydraulic,Electric
Brand Name :
HUAWEI
Compression force :
20-250 tons
Place of Origin :
CHINA
Power :
5.5-75 kw
MOQ :
2
Control mode :
manual/semi-auto/auto
Description

Hydraulic Baler Machine with 20-250 Tons Compression Force and Customizable Chamber Size for High Efficiency Waste Paper Baling

Product Introduction

Space-saving vertical paper baler with top-down compression design. Compact footprint and affordable price make it the most popular choice for small businesses and locations with limited floor space.

Applicable Materials

Waste paper, cardboard boxes, newspaper, office paper, plastic wrap

Applicable Materials

Waste paper, plastic, metal scrap, textile, fiber, straw, cardboard

Main Parameters

Compression force: 20–250 tons; Chamber size: customizable; Power: 5.5–75 kw; Control mode: manual/semi-auto/auto

Key Features
  • Modular design, easy to adapt for different materials
  • High quality hydraulic system, stable pressure output
  • Heavy-duty steel frame, durable for long-term use
  • Safety features including emergency stop and door interlock
  • Customizable bale dimensions and tying methods

  • main oil cylinder pressure

    220-270

    Pressure

    120T

    Hydraulic system operating pressure

    22MPA

    Feed Opening size

    1100*1700

    Bale Size

    W1100*H900*( L can be adjustable )

    Bale Density

    ≥400KG/mз

    Baler line

    Wire tie 2.6/3mm 4Line

    Power system

    High and low pressure combination of hydraulic system

    Motor power

    27.5kw

    Oil Pump model

    VQ35/25

    Displacement 150ml

    Pressure 31.5Mpa

    string Material

    5Wsicv

    Design system pressure

    20Mpa

    power source specification

    3PH380V

    Throughput

    5-8 Tons/hour.5-8

    Control system

    PLC special probe automatic control system manual button control operating system

    Hydraulic oil type

    46#Anti-wear hydraulic oil

    cooling system

    water-cooling

Electric Hydraulic Waste Baler Machine With 20-250 Tons Compression Force
