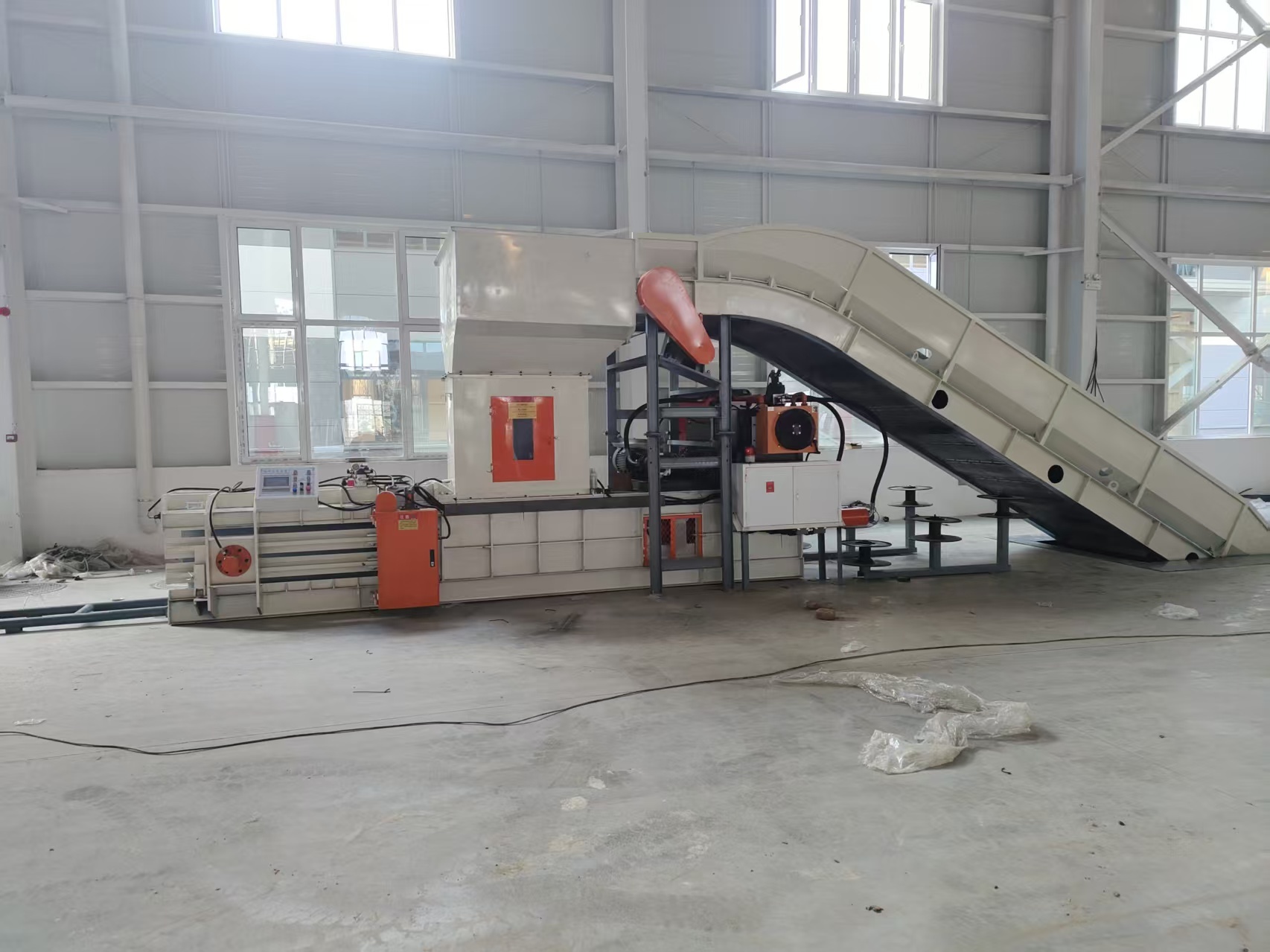

Large Capacity Horizontal Cardboard Baler With 5-8 Tons/Hour PLC Control
Large Capacity Horizontal Cardboard Baler With 5-8 Tons/Hour PLC Control
Specifications
Model Number :
HW160T
workpiece size :
w1100*h1250*length advajustable
Delivery Time :
20working days
Supply Ability :
20sets per month
Price :
negotiation
Packaging Details :
wooden box
Payment Terms :
T/T
Brand Name :
hua wei
work speed :
5-8tons per hour
Place of Origin :
CHINA
MOQ :
1
Description
Large Capacity Horizontal Recycling Baler with 5-8 Tons/hour Throughput and PLC Control
Product Overview

The Large Capacity Horizontal Recycling Baler is designed for packing loose materials including waste paper edges, cartons, straw, and agricultural residues in large paper recycling facilities.

Key Features
  • Hydraulic System: Low-noise hydraulic circuit combining imported and domestic high-quality components for stable performance and cost efficiency
  • Electrical Control: PLC-controlled system with simple circuitry, low failure rate, and easy troubleshooting
  • Smart Operation: Free length setting with accurate bale counting and recording
  • Easy Installation: Simple foundation construction without reinforcement requirements
Main Components
  • Main Motor: Hengshui
  • Hydraulic Valve & Fittings: Beijing Huade
  • Oil Seal: Taiwan Hansheng
  • PLC: Delta
  • Touch Screen: MCGS
  • Low-voltage Apparatus: Schneider
  • Breaker: Chint
  • Cooler: Zhejiang
  • Oil Pump: Jiangsu
  • Pipeline: Qingdao Xiangliu
  • Bearing: Haerbin
Technical Specifications
Parameter Name Specification
Main Oil Cylinder Pressure 220-270
Pressure 120T
Hydraulic System Operating Pressure 22 MPA
Feed Opening Size 1100×1700 mm
Bale Size W1100×H900×(L adjustable)
Bale Density ≥400 KG/m³
Baler Line Wire tie 2.6/3mm 4-Line
Power System High and low pressure combination hydraulic system
Motor Power 27.5 kW
Oil Pump Model VQ35/25
Displacement/Pressure 150 ml / 31.5 Mpa
String Material 5Wsicv
Design System Pressure 20 Mpa
Power Source Specification 3PH 380V
Throughput 5-8 Tons/hour
Control System PLC special probe automatic control system with manual button control
Hydraulic Oil Type 46# Anti-wear Hydraulic Oil
Cooling System Water-cooling
Machine Weight 12 Tons
