intermediate frequency heating Elbow Hot Forming Machine
intermediate frequency heating Elbow Hot Forming Machine
Specifications
Bendinganglerange :
0° to 180°
Price :
discussible
Supply Ability :
500set
Heating Method :
KGPS system
Bending Radius :
1-3D
Working Speed :
10-24mm/s
Hydraulic System :
Hydraulic Pump
Elbow Size :
1-48 inch
Brand Name :
junxi
Certification :
ios 9001
Radius :
1D,1.5D
Operation Mode :
Semi-automatic
Frequency :
50Hz/60Hz
Productname :
Elbow Forming Machine
Heating Power :
100-1000KW
Delivery Time :
25-30 days
MOQ :
1set
Coolingsystem :
Water Cooling
Angle :
22.5°、45°、90°、135°
Payment Terms :
L/C,T/T
Packaging Details :
wooden box
Powersupply :
380V/50Hz, 3 Phase
Elbow Radius :
1D 1.5D
Description

intermediate frequency heating Elbow Hot Forming Machine

intermediate frequency heating Elbow Hot Forming Machine

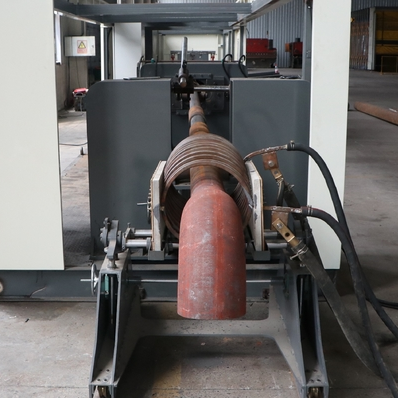

Elbow Hot Forming Machine

Elbow Hot Forming Machine mainly produces elbow pipe fittings of 1D and 1.5D.Elbow pusher mainly produces carbon steel and stainless steel elbow.The production mode of elbow pushing machine is mandrel and through the ball.The main characteristics of elbow pushing machine are simple operation, low cost and high efficiency.Elbow pusher can produce elbow diameter of 21mm-630mm, wall thickness of 3-30mm these models we produce elbow pusher can be done.Elbow push machine mainly includes: rack, table, side table, hydraulic press, electrical box and human control board and mandrel also known as horn.The structure of the elbow pusher is the integral frame structure.The overall design of elbow pusher is relatively compact and reasonable.The above is a brief introduction of elbow pusher for customers.

Mode NO: GIL114

Size range:OD17-114 Thickness:max8mm

Details of the machine:MAX Elbow size:OD114MM*8.56MM

Ram Cylinder

Piston Ram Cylinder Valid Travel Max Thrust Qty
Φ125mm Φ90mm Φ152 2500mm 51.5T 2

Pump:

2grade pumper of integrated connection

1.40SCY—14-1B 1set CB—50 1set

2.Motors:

Y—7.5kw 1set Y—5.5kw 1set

3.Operation Platform 1set

medium-frequency Heating System:Mode No.:KGPS—60KW

Weight of the machine:2.5tons

Dimension: L*W*H: 5800mm*700mm*900mm
