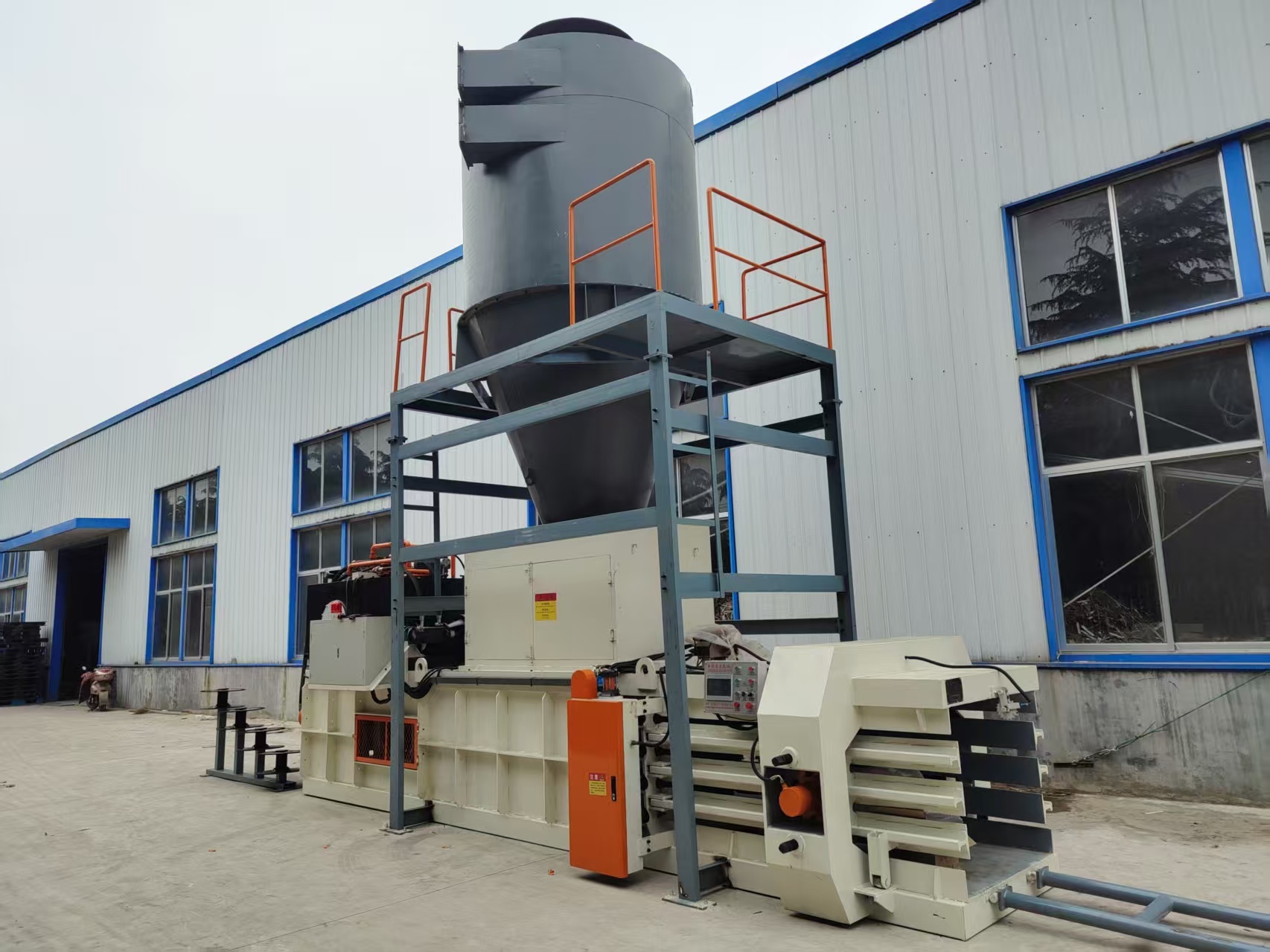

Hydraulic Waste Automatic Horizontal Baler 120T Recycling Paper Bales Baler
Hydraulic Waste Automatic Horizontal Baler 120T Recycling Paper Bales Baler
Specifications
Model Number :
HW120T
Bale Size :
W1100*H900*( L can be adjustable )
Supply Ability :
20 set monthly
Price :
negotiation
Payment Terms :
T/T
Place of Origin :
CHINA
MOQ :
1
Brand Name :
Hua wei
Pressure :
120T
Description
Horizontal Hydraulic Waste Paper Baler

The above parameters are for reference only. Due to product upgrade or improvement, the configuration may change without prior notice.

Hydraulic oil circuit & power system:

Adopt international leading hydraulic oil circuit & power system, high efficiency, energy saving and stability

Special gantry products tight packaging mechanism:

Features: Using the principle of mechanics, 3 sets of tight encapsulation cylinders make the compressed material tighter to a greater

extent, and the package shape is more regular and the density is greater.

Touch screen control:

Microcomputer PLC control, simple, clear, clear at a glance, and has computer-assisted error correction function.

Cutting knife:

It is the first to introduce the design of double-blade cutter in China, which greatly improves the efficiency of cutting paper and prolonging

the service life of the blade.

main oil cylinder pressure 220-270
Pressure 120T
Hydraulic system operating pressure 22MPA
Feed Opening size 1100*1700
Bale Size W1100*H900*( L can be adjustable )
Bale Density ≥400KG/mз
Baler line Wire tie 2.6/3mm 4Line
Power system High and low pressure combination of hydraulic system
Motor power 27.5kw
Oil Pump model VQ35/25
Displacement 150ml Pressure 31.5Mpa
string Material 5Wsicv
Design system pressure 20Mpa
power source specification 3PH380V
Throughput 5-8 Tons/hour.5-8
Control system PLC special probe automatic control system manual button control operating system
Hydraulic oil type 46#Anti-wear hydraulic oil
cooling system water-cooling
Machine Weight 12T
Machine Overall Dimension L*W*H 8500mm*4100mm*2600mm
Hold tight control Hydraulic automatic hold according to the system pressing requirements (PLC automatic control) pressing density
