Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Specifications
Brand Name :
Danfoss
Model Number :
OMR315 151-0617
Certification :
cc
Place of Origin :
Germany
MOQ :
1pc
Price :
RMB/100-10000/PC
Payment Terms :
T/T
Supply Ability :
10PCS/days
Delivery Time :
3 work days
Packaging Details :
wooden case/carton
Fuel :
Hydraulic Oil
Shipping Date :
Within 3 Days After Payment
Operating Temperature :
-20°C to 80°C
Local Service Location :
None
Standard :
International Standard
Warranty :
1 Year, one year
After Warranty Service :
Online support
Mounting Type :
Flange
Description

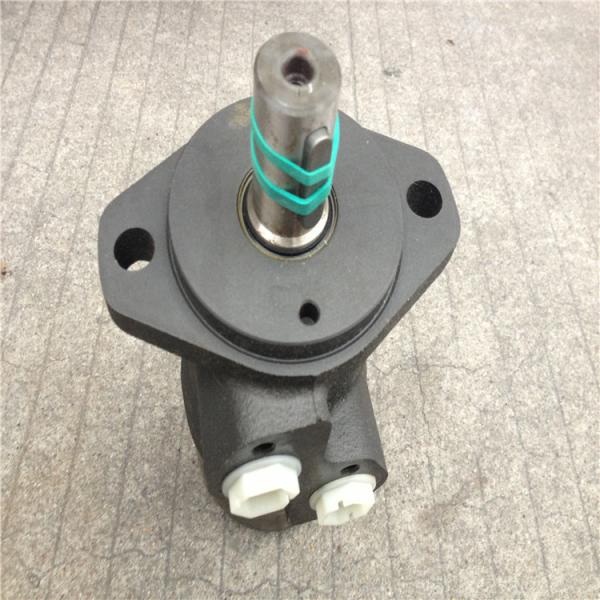

Danfoss OMR315 151-0617
The Danfoss OMR315 151-0617 is a hydraulic orbital motor designed for medium to heavy-duty applications. Below are its key specifications and features:

Technical Specifications

  • Displacement: 315 cm³/rev
  • Maximum Continuous Speed: 195 rpm
  • Maximum Continuous Torque: 300 Nm
  • Maximum Continuous Power: 5.0 kW
  • Shaft Type: Cylindrical, 32 mm diameter
  • Flange Type: A2
  • Port Style: Side port
  • Port Size: G 1/2
  • Drain Port: Standard
  • Material: Cast iron
  • Color: Black (RAL 9005)
  • Weight: 6.9 kg (15.2 lbs)

Features

  • Robust Design: Built for durability and reliability in demanding environments.
  • Compact Size: Suitable for applications with space constraints.
  • High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
  • Advanced Sealing System: High back pressure tolerance, which helps improve the life and reliability of the motor.
  • Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

The OMR315 151-0617 is widely used in various industrial and mobile hydraulic applications, including:
  • Agricultural Machinery: For applications requiring high torque and reliability.
  • Construction Equipment: Suitable for heavy-duty construction machinery.
  • Material Handling: Ideal for forklifts and other lifting equipment.
  • Forestry Equipment: Used in forestry machinery for heavy-duty operations.
  • Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
This motor is known for its reliability and performance, making it a popular choice for demanding industrial applications.
Attribute Value
Process Connection M20X1.5, G1/4, 1/4NPT
Pressure Low Pressure
Pressure sensing element Diaphragm
Media compatibility Air, gas, water, oil
Type Mechanical
Condition 100% NEW
Comprehensive Accuracy ±0.5%FS
Package Box
Danfoss OMR315 151-0617 The Ultimate Choice For Your Medium To Heavy-Duty Hydraulic Motor Applications
Frequently Asked Questions
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convenience, we accept small orders.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms?
A3: By T/T, LC AT SIGHT, 100% full payment.
Q4: How long is your production lead time?
A4: It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
