CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
CML65.1-3P-500-NA-NNNN-NW Compact Servo Motor for Space-Constrained and High-Torque Applications
Specifications
Brand Name :
Rexroth
Model Number :
CML65.1-3P-500-NA-NNNN-NW
Certification :
cc
Place of Origin :
Germany
MOQ :
1
Price :
RMB/100-10000/PC
Payment Terms :
T/T
Supply Ability :
10PCS/days
Delivery Time :
3 work days
Packaging Details :
wooden case/carton
Material :
Cast Iron
Local Service Location :
None
Shipping Date :
Within 3 Days After Payment
Payment :
TT
Standard Or Nonstandard :
standard
Description
Rexroth CML65.1-3P-500-NA-NNNN-NW
Attribute Value
Material Cast Iron
Local Service Location None
Shipping Date Within 3 Days After Payment
Payment TT
Standard Or Nonstandard Standard

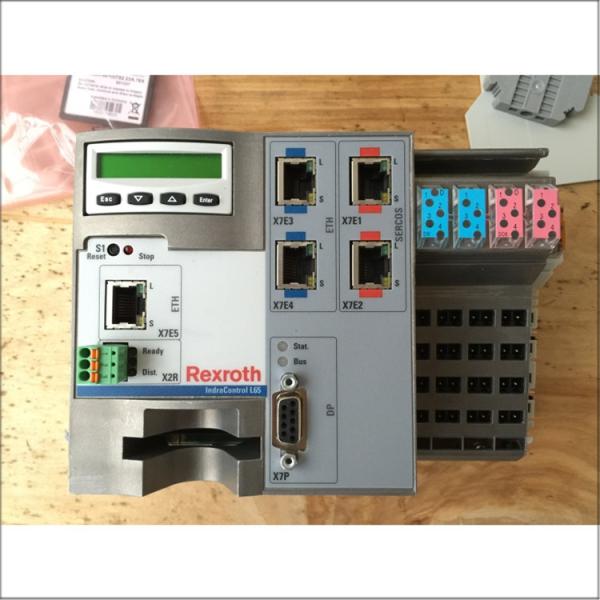

The CML65.1-3P-500-NA-NNNN-NW is a motion control drive from Bosch Rexroth, part of their IndraControl L65 series. Below are its key specifications and features:

Technical Specifications

  • Model: CML65.1-3P-500-NA-NNNN-NW
  • Type: Motion Control Drive
  • Processor: 1.0 GHz Intel Celeron
  • Memory:
    • RAM: 512 MB
    • Flash Memory: 1 GB
    • Remanent Memory: 256 kB
    • Buffered Memory: 8 MB
  • Display: LCD 1-line
  • Operating Keys: 4
  • Interfaces:
    • Ethernet: 1 x Ethernet TCP/IP (Standard)
    • Serial: 2 x Ethernet TCP/IP (Option)
    • Sercos III: 1 x Sercos III (Option)
    • PROFINET: 1 x PROFINET IO-Controller/-Device (Option)
    • EtherNet/IP: 1 x ETHERNET/IP scanner/adapter (Option)
    • PROFIBUS: 1 x PROFIBUS-Master/-Slave (Standard)
  • Power Supply:
    • Voltage: 24 V DC
    • Operating Range: 19 V DC to 30 V DC
    • Residual Ripple: ±5%
    • Logic Supply: 7.5 V (transformed from external 24 V DC), Max. 2 A
    • Segment Supply: 24 V DC, Max. 3 A
    • Analog Supply: 24 V DC, Max. 0.5 A
    • Main Supply: 24 V DC, Max. 8 A
  • Power Consumption: 20 W
  • Protection:
    • Overall Protection Category: IP20
    • Vibration Resistance: 1 g
    • Shock Resistance: 15 g
  • Environmental Conditions:
    • Operating Temperature: +5°C to +55°C
    • Operating Humidity: 5% to 95% (EN 61131-2)
  • Weight: 1.5 kg
  • Certification: CE/UL/CSA

Features

  • Scalable Hardware Platform: Suitable for a wide range of applications.
  • Standardized Communication Interfaces: Ensures compatibility with various systems.
  • Optional Extensions: Through function and technology modules.
  • Modular I/O Units: For flexible system design.
  • High-Grade Visualization Components: For advanced monitoring and control.
  • Integrated Diagnostics: Including powerfail, watchdog, and temperature monitoring.

Applications

The CML65.1-3P-500-NA-NNNN-NW is widely used in various industrial applications, including:
  • Factory Automation: For precise control and automation tasks.
  • Machine Tools: For high-precision motion control.
  • Packaging Machines: For efficient and reliable operation.
  • Printing Machines: For high-speed and high-precision control.
