Specifications
Brand Name :
Rexroth
Model Number :
VT-MACAS-500-10 V0I
Certification :
cc
Place of Origin :
Germany
MOQ :
1
Price :
RMB/100-10000/PC
Payment Terms :
T/T
Supply Ability :
10PCS/days
Delivery Time :
3 work days
Packaging Details :
wooden case/carton
Material :
Cast Iron
Local Service Location :
None
Shipping Date :
Within 3 Days After Payment
Payment :
TT
Standard Or Nonstandard :
standard
Description

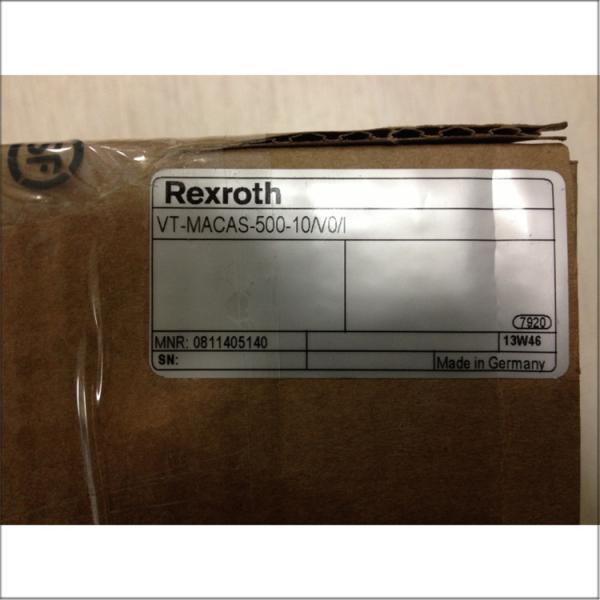

Rexroth VT-MACAS-500-10 V0I
Attribute Value
Material Cast Iron
Local Service Location None
Shipping Date Within 3 Days After Payment
Payment TT
Standard Or Nonstandard Standard

Product Overview

The VT-MACAS-500-10 V0I is an analog positioning module from Bosch Rexroth, designed for controlling valves with installed electronics for position and velocity control. It is part of the 1X series and is suitable for applications requiring precise control of hydraulic systems.

Technical Specifications

  • Material Number: 0811405140
  • Series: 1X
  • Design: Module for snapping onto carrier rails
  • Supply Voltage: 24 V (battery voltage 21...40 V, rectified alternating voltage Ueff = 21...28 V)
  • Current Consumption: Max. 200 mA
  • Signal Input:
    • Voltage: ±10 V (differential amplifier, R = 100 kΩ)
    • Current: 4...20 mA (Rsh = 200 Ω)
  • Actual Value Signal:
    • Voltage: ±10 V (differential amplifier, R = 100 kΩ)
    • Current: 4...20 mA (Rsh = 200 Ω)
  • Valve Signal: ±10 V (max. 10 mA) or 4...20 mA (middle 12 mA)
  • Compensation Step: Can be switched off; effective in a range of ±4%
  • Enable Signal: 8.5...40 V
  • Error Message: No error: 24 Vnom (UB) max. 50 mA; Error: < 2 V
  • IN POS Message: IN POS: 24 Vnom (UB) max. 50 mA; Not IN POS: < 2 V
  • Ramp Ranges: I: 0.1...1 s; II: 1...10 s
  • Area Adjustment: AK: AR, Min. 1:1; Max. 1:4
  • Actual Value Adjustment: Zero point: –5...10%; Gain: 50...110%
  • Controller Type: Position: PT1; Velocity: PI
  • Zero Point Valve: ±5%
  • Dimensions: 86 mm x 110 mm x 95.5 mm
  • Weight: 0.38 kg
  • Operating Temperature: 0...+70°C
  • Storage Temperature: –20...+70°C

Features

  • Suitable for controlling valves with installed electronics for position and velocity control.
  • Design: Module for snapping onto carrier rails.
  • Enable input.
  • Cable break detection for actual value cable.
  • Interfaces short-circuit-proof.
  • Test points on front plate.
  • Compensation step that can be switched off.
  • Position: PT1 control.
  • Velocity control possible in connection with tachometer (speed indicator): PI control.
  • Area adjustment cylinder.

Applications

  • Hydraulic Systems: For precise control of hydraulic valves.
  • Servo Systems: For accurate control in automation and robotic applications.
  • Press Brake Machines: Specifically mentioned for use in Gook-Do press brake machines.

Supplier Information

The VT-MACAS-500-10 V0I is available from various suppliers, including:
  • Wake Industrial: Provides detailed product information.
  • Shanghai Laipu Hydraulic Equipment Co., Ltd.: Offers the product with detailed specifications.
  • eBay: Available for purchase with detailed information.
  • Shanghai Rexroth (Shanghai) Co., Ltd.: Provides comprehensive details and support.
For more detailed specifications or specific information, please contact the suppliers directly.
