Description:

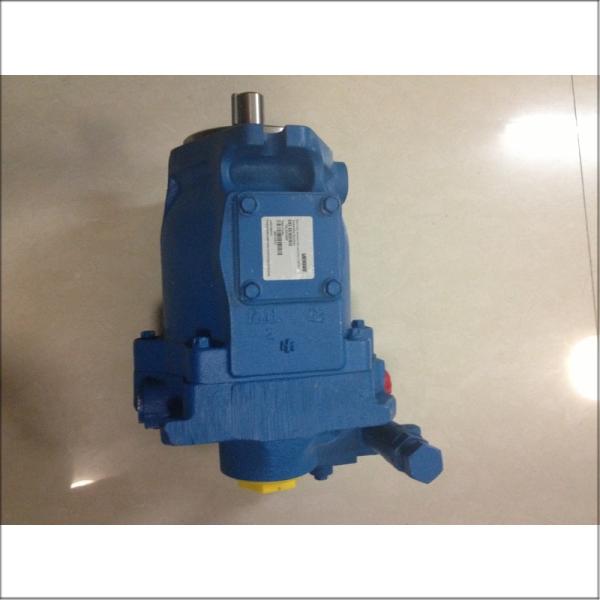

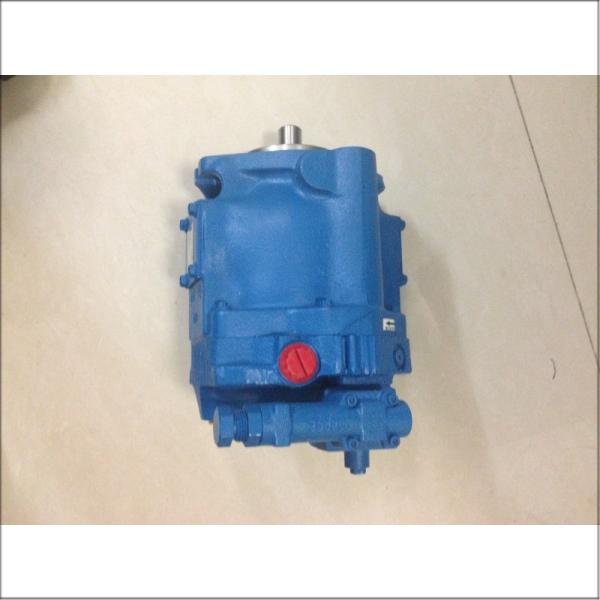

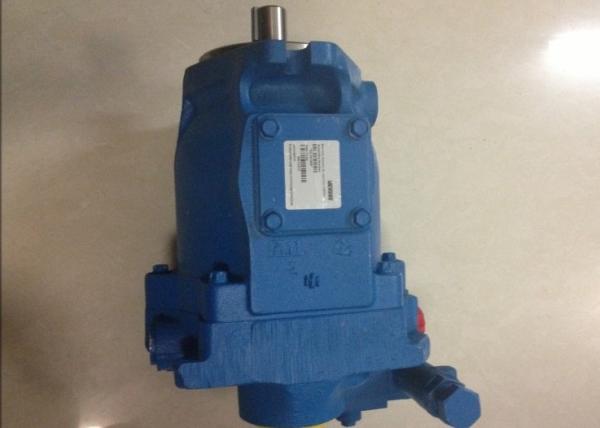

Vickers Hydraulic Pump PVQ40AR01AB10G2100000200100CD0A is a hydraulic axial piston pump manufactured by Eaton Vickers. The pump is part of the PVQ series, a straight shaft variable displacement pump.The PVQ series piston pumps are available in nine sizes and offer maximum operating flexibility by controlling the variable displacement through pressure and flow compensators.The PVQ40 model has a maximum geometric displacement of 41.0 cm³/rev, a rated speed of 1800 r/min, and a maximum pressure of up to 210 bar.The direction of rotation of its input shaft is right hand The direction of rotation of the input shaft is right-handed (clockwise).

Areas of application:

Engineering machinery: such as excavators, loaders, etc., used to provide power to drive hydraulic cylinders and hydraulic motors, to achieve the mechanical digging, shoveling and loading and other functions.
Industrial equipment: in metal processing, plastic molding, paper and other industries, to provide a stable power source for the hydraulic system to ensure the normal operation of the equipment.
Marine industry: used in the ship's rudder, anchor and other hydraulic equipment, to protect the ship's navigation safety and operational flexibility.
Agricultural machinery: such as combine harvesters, tractors, etc., to provide power for the hydraulic system to realize the mechanical walking, harvesting and other functions.

Advantages:

Low Noise Operation: PVQ series piston pumps utilize a patented timing configuration that reduces noise and pressure pulsations so that the pump's operating noise is close to or lower than the noise of the electric motor driving the pump. This allows the noise in systems utilizing PVQ piston pumps to also be reduced to meet today's demanding industrial conditions.
Multiple Control Methods: The PVQ40AR01AB10G2100000200100CD0A offers a variety of control methods, including pressure compensator control, electrical dual-range pressure compensator control, and more. These control methods can be selected according to different working requirements, which improves the working flexibility and adaptability of the pump.
Applicable to a wide range of hydraulic fluids: In addition to typical petroleum-based hydraulic fluids and synthetic hydraulic fluids, PVQ piston pumps are also adaptable to water-containing hydraulic fluids and phosphoric acid hydraulic fluids. This allows the pump to perform well in a variety of operating environments and conditions.
Through-axis drive program: PVQ series piston pumps have through-axis drive program, which is suitable for multi-pump applications and installation needs. Through-shaft drive type pumps can be equipped with various types of fixed and variable pumps of different specifications, forming a compact and flexible assembly. Such assemblies are less costly to set up because of the reduced size of the unit and the need for only one mounting on the prime mover.
Durability and longevity: The durability and longevity of PVQ piston pumps are comparable to industrial products on the market today. This is due to its high quality manufacturing processes and materials, as well as strict quality control standards.
