Description:

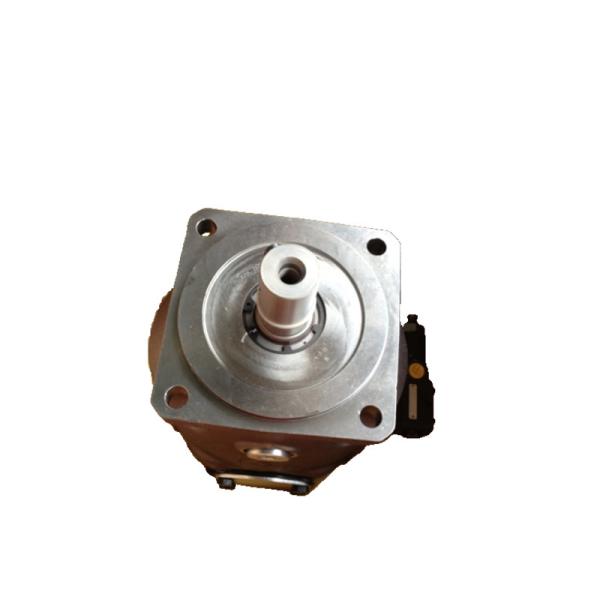

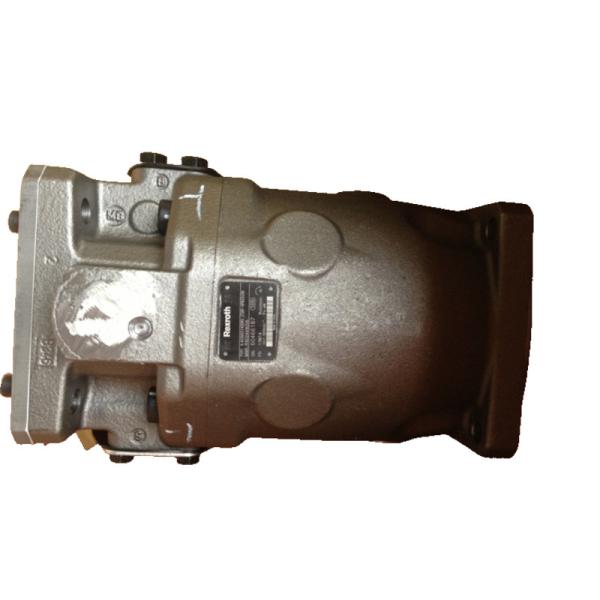

Rexroth Hydraulic Pump A10VSO140DRS/32R-VPB22U99 is an axial piston variable displacement pump manufactured by Bosch Rexroth. It belongs to the A10VSO series and is designed for open circuit hydraulic systems. Adopting swash plate structure, the flow rate is proportional to the driving speed and displacement, and stepless variable can be realized by adjusting the swash plate inclination. ISO standard mounting flanges and SAE metric flange connections. Equipped with two case drain holes to ensure good lubrication and heat dissipation. Excellent suction performance, allowing continuous operation up to 280 bar and peak pressures up to 350 bar, with a pressure transducer on the pump outlet for real-time monitoring of the system pressure. Rated pressure: 280 bar, peak pressure: 350 bar Maximum flow rate: approx. 252 L/min Speed range: up to 1800 rpm Weight: approx. 73 kg.

Areas of application:

Hydraulic presses: used for metal molding, stamping and other processes, providing stable high-pressure hydraulic power.
Injection molding machine: for plastic molding process of mold opening and closing and material injection to provide power.
Metal processing machine tools: such as CNC lathes, milling machines, etc., for tool feeding and spindle drive.
Excavators: provide power for hydraulic cylinders and hydraulic motors to drive the excavator's digging, slewing and walking movements.
Loader: used as the power source of the hydraulic system to drive the bucket lifting and turning.
Crane: Provide high pressure hydraulic power for the telescoping, rotating and lifting mechanism of the boom.
Ship hydraulic system: used for ship's rudder, anchor and other equipment.
Wind power generation equipment: used in the hydraulic braking system of wind turbine.

Advantages:

High power/weight ratio: Compact design provides high power output in a small size and weight.
Low energy consumption: through stepless variable adjustment, the flow and pressure can be precisely controlled according to the actual demand, reducing energy waste.
Long life: the use of high-quality materials and advanced manufacturing processes ensures the durability and reliability of the pump.
Low noise: low noise level during operation, reducing the impact on the working environment.
High resistance to cavitation: high resistance to suction pressure loss and casing pressure peaks, reducing damage to the pump from cavitation.
A variety of control forms: Provide two-point control, pressure control, remote operation pressure control, pressure and flow control and other control methods.
Fast response: short control response time, able to quickly adapt to changes in system pressure and flow rate.
Through-axis structure: Adopting universal through-axis drive, it can be combined with other hydraulic components for multi-loop system.
Flexible installation: A variety of mounting flanges and connection options are available for easy integration into different hydraulic systems.
