Description:

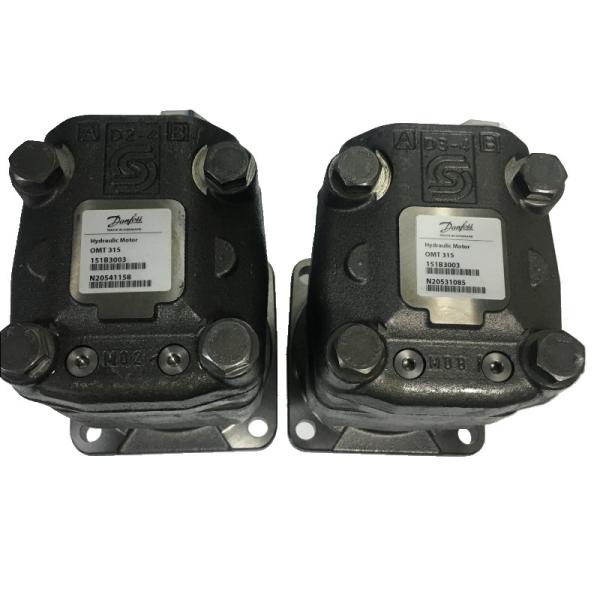

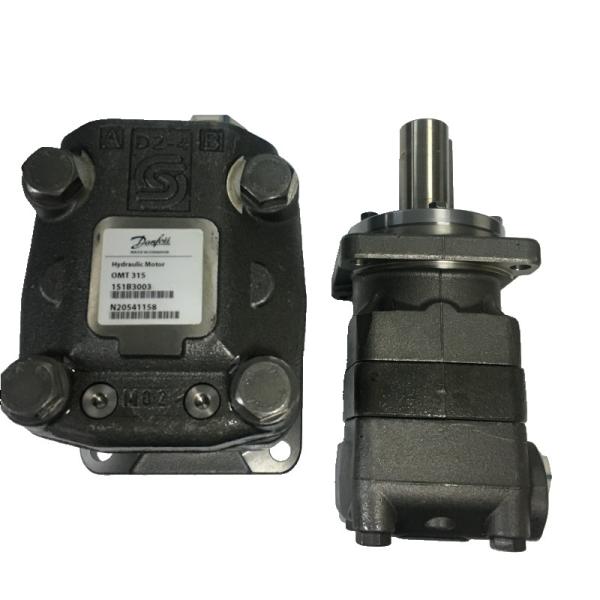

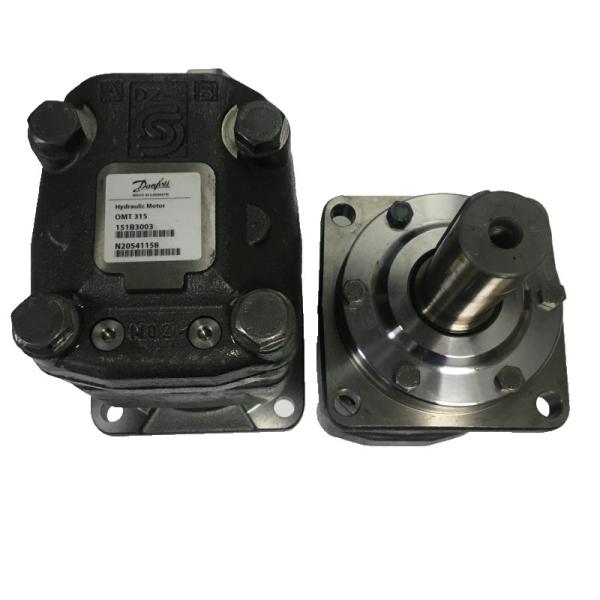

The Danfoss OMT315151B3003 is a cycloidal hydraulic motor manufactured by Danfoss, a Danish company, and belongs to the OMT series. This series of motors features a face-type distribution structure and uses a column-type rotor-stator assembly, offering high operating pressure, high efficiency, and smooth operation at low speeds. The OMT315151B3003 has a displacement of 315 cc/r and can achieve a maximum operating pressure of 350 bar, enabling it to deliver significant power output, making it suitable for high-load applications. Despite its compact design and lightweight construction (only 25 kg), it can withstand heavy operational loads, offering excellent cost-effectiveness.

Application Areas:

Construction Machinery: The Danfoss OMT315151B3003 is widely used in construction machinery such as excavators, loaders, and bulldozers. It provides robust power support for these machines, ensuring stable operation in complex terrain and harsh environments. Its high starting torque and stable speed regulation capability enable excavators to perform precise and powerful digging actions, while loaders achieve smoother loading and unloading processes.
Agricultural and Forestry Machinery: In the agricultural and forestry sectors, this motor can be used in tractors, harvesters, forestry harvesting equipment, and more. Its compact design and high power output enable agricultural and forestry machinery to operate efficiently in fields or forests while minimizing the equipment's footprint.
Material Handling Machinery: The OMT315151B3003 is also suitable for material handling equipment such as forklifts and cranes. It provides stable power output, ensuring smooth and reliable material handling. Its high efficiency and long service life further reduce equipment maintenance costs.
Specialized Machinery: Additionally, this motor can be used in specialized machinery such as mining equipment and sanitation equipment. In mining operations, it provides power for equipment like crushers and screens, meeting the demands of high loads and prolonged operation.

Advantages:

High efficiency and high power output: The OMT315151B3003 has a displacement of 315 cc/r and a maximum operating pressure of 350 bar, enabling it to deliver more power per unit time, making it suitable for high-load conditions. Its face-type distribution structure and column-type stator-rotor design further enhance energy conversion efficiency.
Stable operating performance: The motor operates smoothly across the entire speed range, featuring high starting torque and stable speed regulation capabilities. Even at low speeds, it maintains smooth operation, avoiding speed fluctuations and torque pulsations.
Durable and robust: The OMT315151B3003 is constructed from high-strength alloy materials, offering excellent fatigue resistance and wear resistance. Its shaft seal design can withstand high return oil pressure, ensuring sealing performance in harsh environments. Additionally, the motor's distribution mechanism features automatic wear compensation, further extending its service life.
Compact design: Despite its high output power, the OMT315151B3003 has a small volume and weight, weighing only 25 kg. This compact design allows it to adapt to various space-constrained applications while reducing the overall weight of the equipment.
Low maintenance costs: The motor employs a non-disassembly sealing technology, reducing the need for frequent repairs caused by sealing issues. Its robust and durable design also minimizes the likelihood of failures, further lowering maintenance costs.
Wide applicability: The OMT315151B3003 is compatible with various hydraulic media and open-loop/closed-loop hydraulic systems. Its short and ultra-short designs enable it to accommodate different installation requirements.

FAQ:

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
