Small water Francis Hydro Turbine 50kw-20MW 400V-6300V Horizontal Generator
Small water Francis Hydro Turbine 50kw-20MW 400V-6300V Horizontal Generator
Specifications
MOQ :
1
Price :
200000
Brand Name :
WaWuShan
Model Number :
SFW-200KW (2000KW)
Certification :
ISO
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
1 Set//3 Months
Delivery Time :
3 Months
Packaging Details :
Container
Model NO. :
HLA-202511
Output Type :
AC Three Phase
Bearing Support :
Umbrella Type
Bearing Number :
1
Efficiency :
90%-95%
Voltage :
400V-6300V
Frequency :
20Hz, 60Hz
Turbine Type :
Francis, Turgo, Kaplan, Pelton
Power Design :
50kw-20MW
Water Head :
20-300m
Lifespan :
30 Years
Speed :
Medium Speed
Type :
Horizontal Hydro Generator
Blade Angle :
30°
Production Capacity :
200 Sets Per Year
Material :
copper
Description
500kw Mini Micro Small Hydro Generator Crossflow Pelton Kaplan Turgo Water Turbines
Turgo Turbine

The inclined-jet turbine is primarily designed for power stations with high head and low flow conditions. Water flows from the reservoir through the diversion pipe and exits the nozzle at high velocity onto the runner blades, causing rotation. After passing through the runner, water discharges into the tailwater tank and downstream channel.

Small water Francis Hydro Turbine 50kw-20MW 400V-6300V Horizontal Generator

This turbine is suitable for small hydropower stations with water heads between 20-200m, converting hydraulic energy into electrical energy. Available in both vertical and horizontal shaft configurations with various bearing structures and speed regulation options (automatic, manual, or electric).

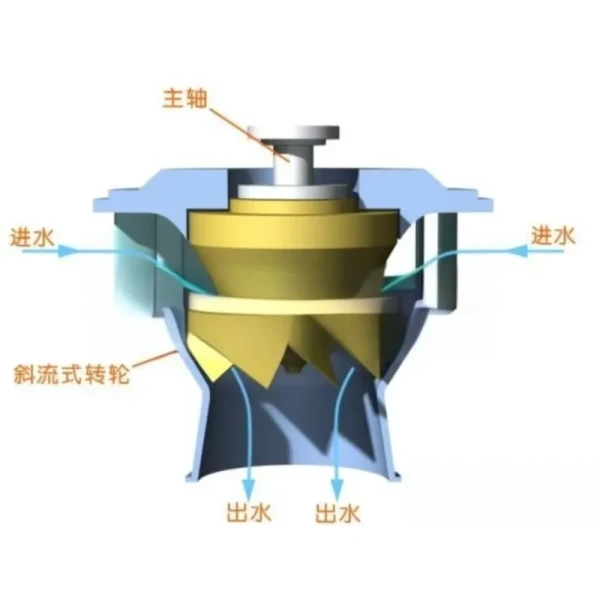

The runner blade axis is inclined, creating an angled water flow path. The welded volute structure features 12 seat ring struts at a 35° angle. The guide mechanism includes 24 blades with a 45° inclination angle, using water-lubricated wooden bearings and rubber seals to prevent leakage.

The stainless steel runner chamber houses ten 45° angled blades, with blade adjustment capability up to 30°. The inclined design improves efficiency while reducing the unit's footprint.

Advantages of Turgo Turbine
  • High efficiency: Effectively converts water kinetic energy to mechanical then electrical energy, delivering long-term economic returns
  • Low cost: Simplified equipment design reduces construction, manufacturing and maintenance expenses
  • Adaptability: Flexible installation options accommodate diverse geographical conditions and power requirements
Company Profile
Small water Francis Hydro Turbine 50kw-20MW 400V-6300V Horizontal Generator
Production Capabilities Details
Production Lines 6
Production Machines 40
Quality Control Full raw material traceability and production line monitoring
QA/QC Inspectors 4
Trade Background Details
Main Markets Domestic (88%), Southeast Asia (9%), South Asia (2%)
Client Types Retailers, Engineers, Manufacturers
R&D Capabilities Details
Customization Options Sample processing, graphic processing, on-demand customization
R&D Engineers 6 (5 graduate, 1 junior college)
New Products (Last Year) 15
