J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application
J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application
J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application
J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application
Specifications
Brand Name :
Jiayan
Model Number :
451,452 and 40371
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
3000 pcs per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Cold Roll Sheet
Weight :
Max.1130g
Holding Capacity :
Max.450kgs
Mounting Hole diameter :
5.6-10.3mm
Description

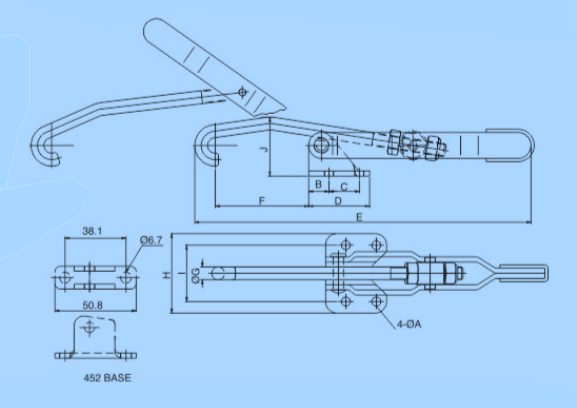

Popular Latch Type Toggle Clamp 451,452 and 40371 Max.Holding Capacity 450kgs Wide Application J hook Latch Clamp

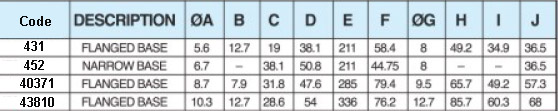

Product Specification and features:

Material :Cold Roll Sheet

Weight :Max.451:270g; 452:255g;40371:624g; 43810:1130g

Holding Capacity :451:170kg; 452:170kg;40371:340kg; 43810:450kg

Mounting Hole diameter :5.6-10.3mm

Note:

1.Stainless steel version is available for above all size toggle clamps

2.Ideal for use on doors, machinery, automobiles, jig assemblies and other medium to heavy-duty job applications
3.Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance
4.Features hook shaped clamp rod for clamping any custom latch point
5.Complete with adjustable j hook
6.Mechanism allows maximum clearance

J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application

J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application
