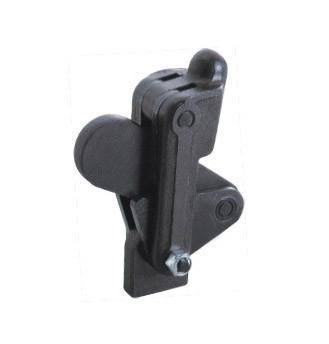

Weldable Heavy Duty Hold Down Clamps 70710 Harden Pin Eco - Friendly
Weldable Heavy Duty Hold Down Clamps 70710 Harden Pin Eco - Friendly
Weldable Heavy Duty Hold Down Clamps 70710 Harden Pin Eco - Friendly
Weldable Heavy Duty Hold Down Clamps 70710 Harden Pin Eco - Friendly
Specifications
Brand Name :
Jiayan
Model Number :
70710
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
2000 pcs per week
Delivery Time :
8 days
Packaging Details :
Poly bag and carton box
Material :
Forged Steel
Weight :
710g
Holding Capacity :
700kgs
Bar Opens :
205 degree
Handle Opens :
130 degree
Warranty :
1 year
Description

Clamping Force 700kgs Heavy Duty Toggle Clamp 70710 Weldable Clamp Harden Pin for Long Life Span

Product Specification and features:

Material:Forged Steel

Weight :710g

Holding Capacity:700kgs

Bar Opens:205 degree

Handle Opens:130 degree

Attention: The clamping arm and handle need to be welded onto the clamp according to customer's requirment.

Application: construction machinery,engineering machinery,vehicle manufacture , aircraft manufacture

Machinery manufacture.
