30519 30619 Push Pull Toggle Clamp / Heavy Duty Pull Action Toggle Clamp
30519 30619 Push Pull Toggle Clamp / Heavy Duty Pull Action Toggle Clamp
Specifications
Brand Name :
Jiayan
Model Number :
30519 and 30619
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
500 pcs per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
High Strength Steel
Weight :
1136g and 2273g
Holding Force :
1136 and 2273kgs
Plunger Stroke :
59.4 and 77.8 mm
Supplied Handle and Base :
yes
Warranty :
1 year
Description

Max Clamping Force 2273 kgs Heavy Duty Push Pull Toggle Clamp 30519 and 30619 Machinery Manufacture Clamps

Product Specification and features:

Material :High Strength Steel

Weight :1700g and 3600g

Holding Capacity :1136 and 2273 kgs

Plunger Stroke:55.9 and 577.8 mm

Supplied Handle and base : Yes

Product features:


1.High strength steel construction and precisely broached body for square plunger, allow these clamps to be used as pin locating gauges.
2.Hardened steel pins and bushing fitted at pivot points.

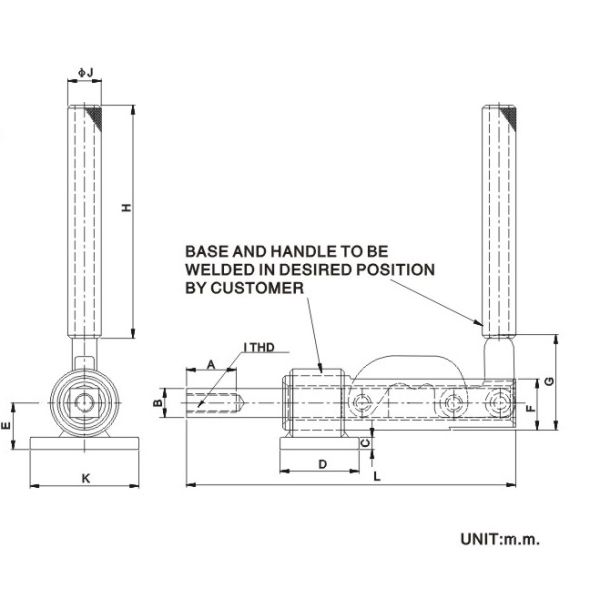

3.Supplied with separate handle and base. Users can weld them at desired position.
4.Clamps can be mounted by drilling holes on the base or be welded at a proper position

Application: Machinery manufacture and plane manufacture fixture.
