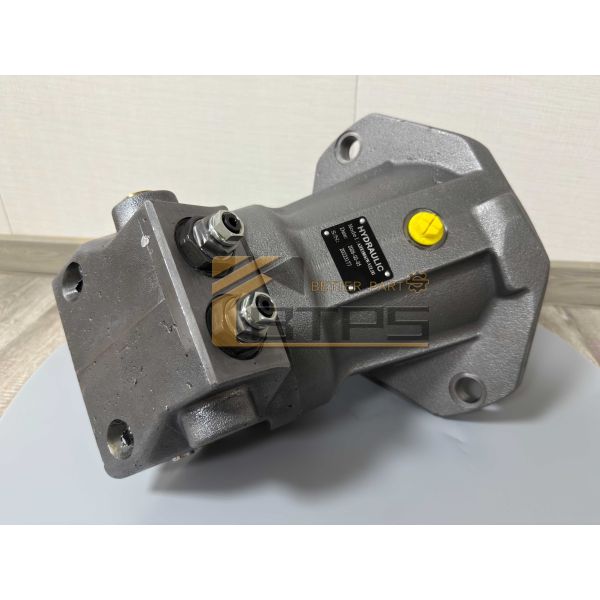

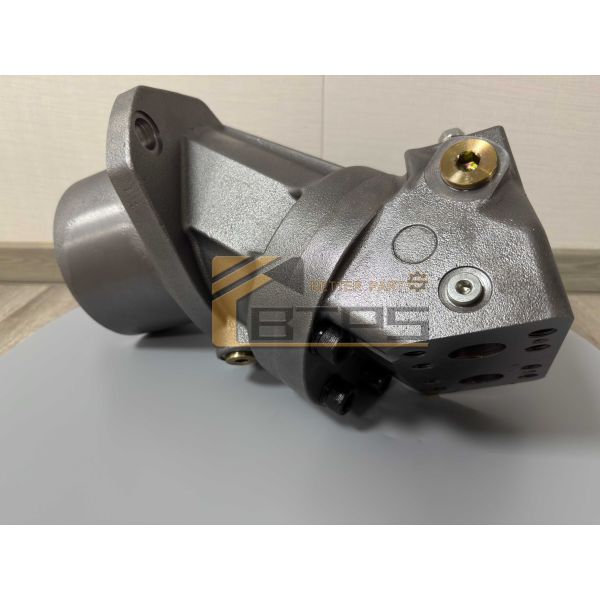

A2FE Series High Pressure Hydraulic Piston Motor for Excavators with Cast Iron Construction
A2FE Series High Pressure Hydraulic Piston Motor for Excavators with Cast Iron Construction
Specifications
Brand Name :
BTPS
Model Number :
A2FE28, A2FE32, A2FE45, A2FE56, A2FE63, A2FE80, A2FE90, A2FE107, A2FE125, A2FE160, A2FE180,A2FE250, A2FE355
Certification :
CE ISO 9001
Place of Origin :
China
MOQ :
1
Price :
NIGOTIATION
Payment Terms :
T/T,T/T
Supply Ability :
1000/month
Delivery Time :
5 work days
Packaging Details :
standard
Warranty :
1 Year
Appliion :
Crawler Excavator,Bulldozer,Crawler Undercarriage,For excavator,Excavator Undercarriage Parts
Color :
Black,customized color
After-sales service provided :
Online support,Video technical support
Usage :
Oil
Application :
Excavator
Fuel :
hydraulic oil
Power :
Hydraulic
Pressure :
High Pressure
Structure :
Hydraulic piston pump
Standard or nonstandard :
Standard
Theory :
Rotary Pump,plunger pump
Material :
Cast Iron
Type :
Hydraulic Motors,Hydraulic Power Units
Description
A2FE Series High-Pressure Hydraulic Piston Motor for Excavators
Product Features
  • Fixed plug-in motor with axial tapered piston rotary group of bent-axis design
  • Far-reaching integration in mechanical gearbox due to recessed mounting flange located in the center of the case (extremely space-saving construction)
  • Output speed dependent on pump flow and motor displacement
  • Output torque increases with pressure differential between high-pressure and low-pressure sides
  • Compact dimensions with high total efficiency
  • Complete unit, ready-assembled and tested
  • Easy installation - simply plugs into mechanical gearbox
  • No configuration specifications required during installation
A2FE Series High Pressure Hydraulic Piston Motor for Excavators with Cast Iron Construction A2FE Series High Pressure Hydraulic Piston Motor for Excavators with Cast Iron Construction
Technical Specifications
Size A2FE28 A2FE32 A2FE45 A2FE56 A2FE63 A2FE80
Displacement (cm³)28.13245.656.16380.4
Speed max (rpm)630063005600500050004500
Input flow (L/min)177202255281315362
Torque @350 bar (Nm)157178254313351-
Mass approx. (kg)10.510.515181923
Size A2FE90 A2FE107 A2FE125 A2FE160 A2FE180 A2FE250 A2FE355
Displacement (cm³)90106.7125160.4180250355
Speed max (rpm)4500400040003600360027002240
Input flow (L/min)405427500577648675795
Torque @350 bar (Nm)501594696893100313931978
Mass approx. (kg)253436474882110
A2FE Series High Pressure Hydraulic Piston Motor for Excavators with Cast Iron Construction
Service & Support
  • One year warranty from delivery
  • Free components for replacement within warranty period
  • Professional solution provider
  • Free technical support at any time
  • Customer training available
  • On-site installation and commissioning available
Excavator Spare Parts Supply
Cylinder Block
Valve Plate
Piston Shoe
Set Plate
Ball Guide
Thrust Plate
Drive Shaft
Swash Plate
Retainer
Saddle Bearing
Regulator
Bearing Seat
Seal Kit
Servo Piston
L Pin
Hydraulic Pump Assembly & Spare Parts
KAWASAKI: K3SP36C, K7SP36C, K3V45, K3V63, K3V112, K3V140, K3V180, K3V280, K4V45, K3VL28, K3VL45, K3VL63, K3VL80, K3VL112, K3VL140, K3VL200, K7V63, K7V100, K7VG180, K7VG265, K5V80, K5V140, K5V160, K5V180, K5V200, K3VG63, LZV180, LZV260, LZV500
REXROTH: A4VSO40, A4VSO45, A4VSO50, A4VSO56, A4VSO71, A4VSO125, A4VSO180, A4VSO250, A4VSO355, A4VSO500, A4VSO750, A4VSO1000, A4VG28, A4VG40, A4VG56, A4VG71, A4VG90, A4VG125, A4VG180, A4VG250, A4V40, A4V56, A4V71, A4V90, A4V125, A4V250, A4V0130
EATON: 33/39/46/54/64/76, 70122/72400/78461/78462, PVXS060, PVXS090, PVX130, PVX180, PVX250, PVE12, PVE19, PVE21, TA19, MFE19, PVM018, PVM020, PVM045, PVM050, PVM057, PVM063, PVM074, PVM081, PVM098, PVM106, PVM131, PVM141, PVB5, PVB6, PVB10
KOMATSU: SBS80, SBS120, SBS140, SPK10, SPV10, VRD63, and models for 345, 320, 325, E200B, MS180, E207D, E70B, 12G, 14G, 16G, 120G, 140G, 215, 225, 235, 245, 320B, 330B, 345, 355D
HITACHI: HPV75, HPV95, HPV132, HPV140, HPV165 and models for PC60-7, PC220-6, PC200-7, PC300-6, PC300-7, PC360-7, PC400-7, PC600-7, PC40-8, PC60-8, PC70-8, PC75UU, PC78US-6, PC2000-8, PC3000-8
LIEBHERR: LPVD35, LPVD45, LPVD64, LPVD75, LPVD90, LPVD100, LPVD125, LPVD140, LPVD165, LPVD225, LPVD250, FMV075, FMV100, LMF45, LMF64, LMF75, LMF90, LMF100, LMF125, LMF140, LMV45, LMV64, LMV75, LMV90
KYB: PSVD2-13E, PSVD2-16E, PSVD2-17E, PSVD2-19E, PSVD2-21E, PSVD2-26E, PSVD2-27E, PSVD2-57E, PSV2-55T, PSV2-62T, PSV2-63T, PSVH-45CS, PSVS37, PSVS90, PSV-10, PSV-16, PSV-37C, PSV2-10, PSV2-16, PSVL-36, PSVL-42, PSVL-54
TOSHIBA: PVB80, PVB90, PVC80, PVC90, TADANO100, PAVA8282, PAVA6565, LUCUS400, LUCUS500, HD450V-2, SG015, SG02, SG025, SG04, SG08, SG12, SG15, SG17, SG20, SG25, MFB80, MFB100, MFB150, MFB160, MFB170, MFB180, MFB190, MFB200
Available Part Numbers
R910967545 | AA2FE250/60W-VZM010
R902404657 | AA2FE250/60W-VZM010D-SO103
R902476624 | AA2FE250/60W-VZM010F
R902477485 | AA2FE250/60W-VZM010F-SO81
R902511134 | AA2FE250/60W-VZM010F-SO81
R902497716 | AA2FE250/60W-VZM020
R910983204 | AA2FE250/60W-VZM027
R910937616 | AA2FE355/60W-VZM-SO25
R902478286 | AA2FE355/60W-VZM010
R902500380 | AA2FE355/60W-VZM017
Rexroth Hydraulic Piston Pump Series Available
A4VSO: 40, 71, 125, 180, 250, 355
A2FE: 28, 32, 45, 56, 63, 80, 90, 107, 125, 160, 180, 250, 355
A2FO: 10, 12, 16, 23, 32, 45, 56, 63, 80, 107, 125, 160, 180, 200, 250, 355
A2FM: 12, 23, 28, 32, 45, 56, 80, 107, 125, 160, 180, 200, 225, 250
A2F: 12, 25, 55, 63, 80, 107, 160, 200, 355
A6VM: 55, 80, 107, 160, 200, 250, 350
A7VO: 28, 55, 80, 107, 160, 200, 250
A6VE: 28, 55, 80, 107, 160
A8VO/A8V: 55, 80, 107, 140, 200
A4VG: 28, 40, 45, 50, 56, 71, 90, 125, 180, 250
A10V(S)O 31 Series: 18, 28, 45, 71, 100, 140
A10V(S)O 52/53 Series: 10, 18, 28, 45, 63, 85
A11VO: 40, 60, 75, 95, 130, 190, 260
A10VG: 18, 28, 45, 63
A7V: 28, 55, 80, 107, 160, 225, 250, 355
AP2D: 12, 18, 25, 32, 36, 42
