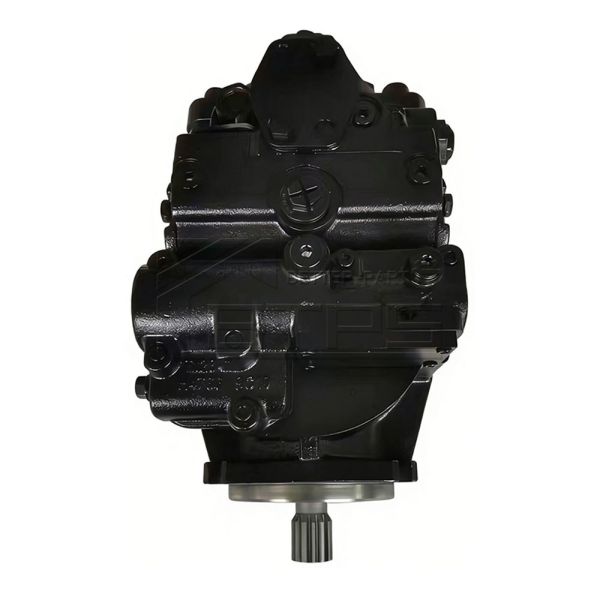

DANFOSS 90R075 closed circuit axial piston pump 75cc high pressure 450bar variable displacement main pump for construction machinery excavator loader concrete mixer 90R055 90R100 90R130
DANFOSS 90R075 closed circuit axial piston pump 75cc high pressure 450bar variable displacement main pump for construction machinery excavator loader concrete mixer 90R055 90R100 90R130
Specifications
Brand Name :
SAUER DANFOSS
Model Number :
DANFOSS 90R075
Place of Origin :
China
MOQ :
1
Price :
NIGOTIATION
Payment Terms :
T/T
Supply Ability :
2000pcs/year
Delivery Time :
7 days
Packaging Details :
wooden box
Standard or Nonstandard :
Standard
Pump Type :
PISTON PUMP
Weight :
49
Model :
SAUER DANFOSS 90R series
Condition :
New
Single package size :
50X40X40 cm
Material :
Imported material
Usage :
Oil,Water,Air Pump,valve,High pressure ceramic plunger pump
Power :
Hydraulic,Electric
Pressure :
High Pressure,Low Pressure,70MPa,700bar,Other
Structure :
Piston Pump,Multistage Pump,Diaphragm Pump
Theory :
Axial Flow Pump,Rotary Pump,Electromagnetic Pump,Hand pump,Mixed Flow Pump
Fuel :
Diesel,Electric,Gasoline,Hydraulic oil,Other
Application :
Metering,Other,excavator,Matched with double acting heavy duty hydraulic cylinder,oil
Color :
Yellow,or OEM,White,natural,as customer required
Warranty :
1 Year,12 Months,3 months or 1 year,One Year
Product name :
Hydraulic variable displacement axial piston pumps,Manual hand hydraulic piston pumps,Piston Pump Unit/Parts,Hydraulic Pump,Alumina ceramic filling pump
Feature :
High Efficiency,Long Life,Corrosion Resistant,high pressure
Name :
belt coupling vacuum pump,hydraulic piston pumps,Xj metering pump,Diaphragm Air Pump
Voltage :
Requirements,220V,220V/380V
Outlet :
3/8NPT
Oem :
yes,Requirements
Description


DANFOSS 90R075 closed circuit axial piston pump 75cc high pressure 450bar variable displacement main pump for construction machinery excavator loader concrete mixer 90R055 90R100 90R130


Standard Or Nonstandard Standard
Pump Type PISTON PUMP
Weight 60
Model SAUER DANFOSS 90R Series
Condition New
Brand Name SAUER DANFOSS
Single Package Size 50X40X40 Cm
Material Imported Material


DANFOSS 90R075 closed circuit axial piston pump 75cc high pressure 450bar variable displacement main pump for construction machinery excavator loader concrete mixer 90R055 90R100 90R130

  • High Pressure Heavy Duty Performance Rated working pressure up to 420bar and peak pressure reaching 450bar capable of long term stable operation under heavy load impact and harsh working conditions ideal for high torque and high power hydraulic drive scenarios
  • Compact High Power Density Design Integrated charge pump and optimized piston slipper structure reduce overall size and weight while maintaining high output power realizing space saving installation and high efficiency energy transmission
  • Stepless Variable & Precise Control Continuous swash plate angle adjustment enables 0 to 100% infinite variable displacement reversible flow direction fast response and accurate hydraulic flow pressure regulation
  • Excellent Durability & Low Failure Rate Wear resistant valve plate high strength piston assembly and premium bearing configuration reduce internal friction and leakage effectively resisting high temperature abrasion and fatigue damage for long service life
  • Multi Control & Expandable Structure Compatible with mechanical hydraulic servo and electronic PLUS+1 control systems reserved auxiliary mounting pads allow installation of additional auxiliary pumps for multi pump combined hydraulic systems
  • Low Noise & High Efficiency Operation Optimized internal flow channel design minimizes hydraulic impact and vibration ensuring smooth operation low noise and high volumetric efficiency during full speed and variable load operation


Item
Parameter
Product Model
Danfoss 90R075
Rated Displacement
75cc/rev
Rated Working Pressure
420bar
Maximum Peak Pressure
450bar
Charge Pressure
24bar Standard
Control Type
Mechanical Hydraulic Electric PLUS+1 Control Optional
Circuit Type
Closed Circuit Hydraulic System
Net Weight
49kg
Rotation Direction
Bidirectional Optional
