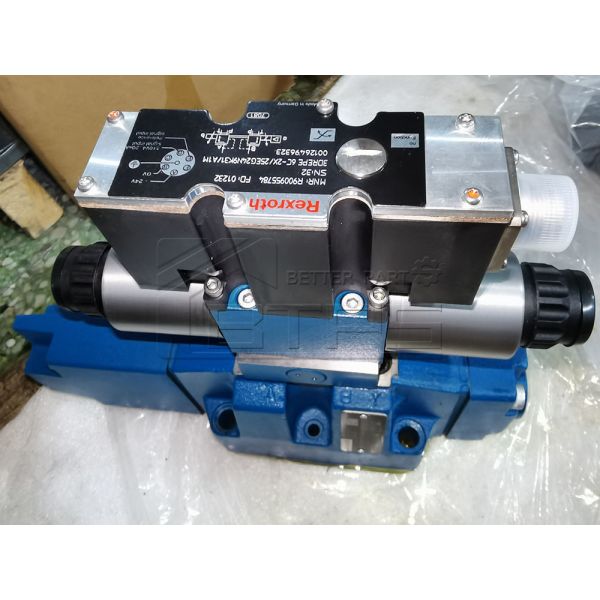

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve
Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve
Specifications
Payment Terms :
T/T
Type :
Valves,Hydraulic control Valve,Rexroth
Standard or nonstandard :
Standard
Price :
Negotiation
Appliion :
engneering,mining
Pressure :
High Pressure,Medium Pressure
Model Number :
4WRZ10 4WRZ16 4WRZ25 4WRZ32 4WRZ52 4WRZ
Temperature of media :
Medium Temperature,High Temperature
MOQ :
1
Delivery Time :
5 work days
Power :
Hydraulic,Hydraulic/Pneumatic
Supply Ability :
1000/week
Material :
Casting,Aluminum Alloy
Packaging Details :
Box/wooden box
Brand Name :
BTPS/Rexroth
Model :
4WRZ10 4WRZ16 4WRZ25 4WRZ32 4WRZ52 4WRZ
Certification :
CE ISO 9001
Place of Origin :
China
Description

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve

Product Overview

Two sub-types are available:
  • 4WRZ: Without integrated OBE electronics, matched with external proportional amplifier
  • 4WRZE: Built-in integrated drive electronics (OBE), simplified wiring, plug-and-play analog control
The valve precisely regulates both flow direction and volumetric flow proportional to electrical input signal, featuring low hysteresis, high repeat accuracy and stable dynamic response, widely applied in large-flow precision hydraulic equipment.
Item Specification
Series Version 7X
Sizes NG10, NG16, NG25, NG32, NG52
Max Working Pressure (P/A/B) 350 bar
Max Return Pressure (T Port) 3~150 bar (depends on pilot circuit mode)
Max Rated Flow NG10:85L/min; NG16:150L/min; NG25:325L/min; NG32:520L/min; NG52:2800L/min
Control Signal 0–10V analog voltage / 4–20mA current
Solenoid Voltage 24VDC standard, 12VDC optional
Hysteresis ≤6%
Repeatability ≤3%
Hydraulic Fluid Mineral oil HLP/HL, phosphate ester HFD-R
Fluid Temperature -20℃ ~ +70℃
Viscosity Range 20–380 mm²/s
Ambient Temp -20℃ ~ +60℃
Protection Class IP65 (mated electrical plug)
Installation Position Any angle, horizontal mounting recommended

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve

Application Industries

  • Injection molding machines, die casting machines
  • Hydraulic metal presses, bending & shearing equipment
  • Mining machinery, construction heavy equipment hydraulic systems
  • Metallurgical rolling mill, steel production line
  • Marine hydraulic power unit, offshore machinery
  • Automated production line large-flow servo hydraulic systems

  • R901226730 | 4WRZ10E1-25-7X/6EG24N9EK4/D3M
  • R900976118 | 4WRZ10E1-25-7X/6EG24N9ETK4/D3M
  • R900959729 | 4WRZ10E1-25-7X/6EG24N9ETK4/D3V
  • R900973002 | 4WRZ10W6-50-7X/6EG24N9K4/D3M
  • R900939922 | 4WRZE10W6-50-7X/6EG24N9K31/F1D3V
  • R900730929 | 4WRZE10W8-85-7X/6EG24N9ETK31/A1M
  • R900979517 | 4WRZE10W8-85-7X/6EG24N9ETK31/A1D3M
  • R900750556 | 4WRZE10W8-85-7X/6EG24N9EK31/F1D3M
  • R900724781 | 4WRZE10W8-85-7X/6EG24N9ETK31/F1D3M
