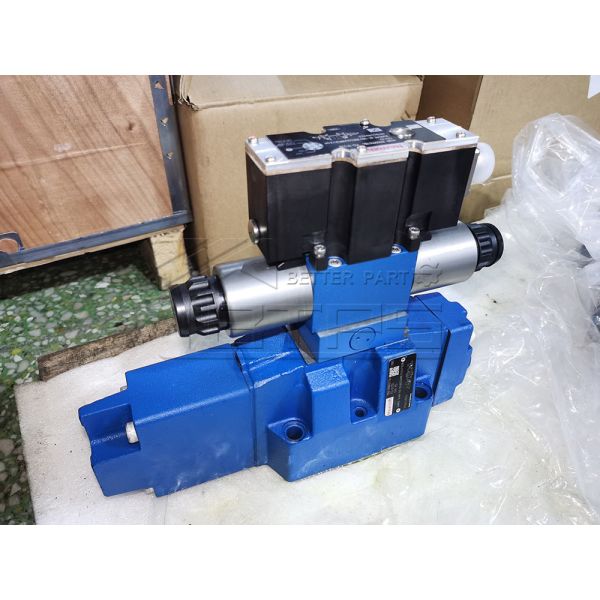

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Wide Application E
Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Wide Application E
Specifications
Payment Terms :
T/T
Type :
Valves,Hydraulic control Valve,Rexroth
Standard or nonstandard :
Standard
Price :
Negotiation
Appliion :
engneering,mining
Pressure :
High Pressure,Medium Pressure
Model Number :
4WRZ10 4WRZ16 4WRZ25 4WRZ32 4WRZ52 4WRZ
Temperature of media :
Medium Temperature,High Temperature
MOQ :
1
Delivery Time :
5 work days
Power :
Hydraulic,Hydraulic/Pneumatic
Supply Ability :
1000/week
Material :
Casting,Aluminum Alloy
Packaging Details :
Box/wooden box
Certification :
CE ISO 9001
Place of Origin :
China
Brand Name :
BTPS/Rexroth
Model :
4WRZ10 4WRZ16 4WRZ25 4WRZ32 4WRZ52 4WRZ
Description

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control Valve 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Valve

Product Overview

Two sub-types are available:
  • 4WRZ: Without integrated OBE electronics, matched with external proportional amplifier
  • 4WRZE: Built-in integrated drive electronics (OBE), simplified wiring, plug-and-play analog control
The valve precisely regulates both flow direction and volumetric flow proportional to electrical input signal, featuring low hysteresis, high repeat accuracy and stable dynamic response, widely applied in large-flow precision hydraulic equipment.
Item Specification
Series Version 7X
Sizes NG10, NG16, NG25, NG32, NG52
Max Working Pressure (P/A/B) 350 bar
Max Return Pressure (T Port) 3~150 bar (depends on pilot circuit mode)
Max Rated Flow NG10:85L/min; NG16:150L/min; NG25:325L/min; NG32:520L/min; NG52:2800L/min
Control Signal 0–10V analog voltage / 4–20mA current
Solenoid Voltage 24VDC standard, 12VDC optional
Hysteresis ≤6%
Repeatability ≤3%
Hydraulic Fluid Mineral oil HLP/HL, phosphate ester HFD-R
Fluid Temperature -20℃ ~ +70℃
Viscosity Range 20–380 mm²/s
Ambient Temp -20℃ ~ +60℃
Protection Class IP65 (mated electrical plug)
Installation Position Any angle, horizontal mounting recommended

Hot Sale 4WRZ32W8-520-7X/6EG24N9ETK4/M Proportional Directional Control 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Hydraulic Wide Application E
Take 4WRZ16W9-150-7X/6EG24N9ETK4/D3M as example
  1. 4WRZ: Series code (4WRZE = with integrated OBE electronics)
  2. 16: Nominal size NG16
  3. W9: Spool flow symbol
  4. 150: Nominal flow L/min
  5. 7X: Component series version
  6. 6E: 7-pin 6+PE electrical connector
  7. G24: 24VDC solenoid
  8. N9: Standard coil, NBR seal
  9. ET: Internal pilot supply + internal pilot return
  10. K4: Connector form
  11. D3: Without pressure reducing valve
  12. M: NBR standard seal; V=FKM fluorine seal

  • R900969308 | 4WRZ10W8-85-7X/6EG24N9TK4/D3V
  • R900978349 | 4WRZ10W8-85-7X/6EG24N9TK4/M
  • R900970768 | 4WRZ10W8-85-7X/6EG24N9TK4/V
  • R901082741 | 4WRZ10W8-85-7X/6EG24NJEK31/D3M
  • R901334438 | 4WRZ10W8-85-7X/6EG24NJK31/M
  • R900973008 | 4WRZ10W9-85-7X/6EG24N9K4/D3M
  • R900973010 | 4WRZ10W9-85-7X/6EG24N9ETK4/D3M
  • R900969310 | 4WRZ10W9-85-7X/6EG24N9ETK4/D3V
