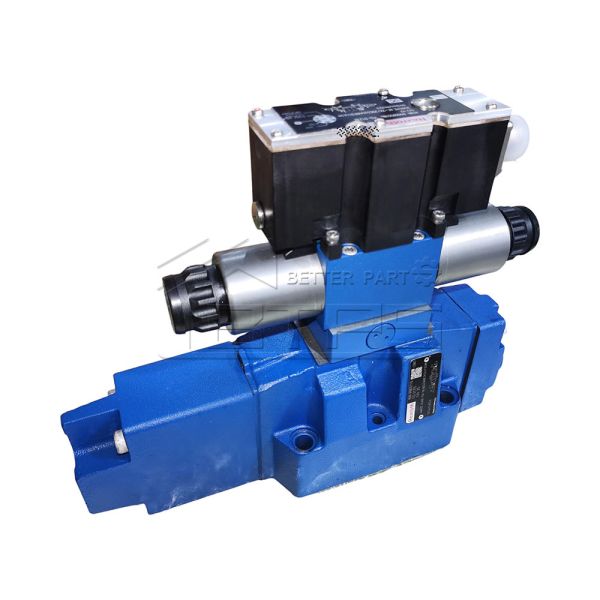

Hydraulic Proportional Valves 4WRZ16E150-7X/6EG24N9ETK4/M Proportional Directional 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Wide Application
Hydraulic Proportional Valves 4WRZ16E150-7X/6EG24N9ETK4/M Proportional Directional 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Wide Application
Specifications
Payment Terms :
T/T
Type :
Valves,Hydraulic control Valve,Rexroth
Standard or nonstandard :
Standard
Price :
Negotiation
Appliion :
engneering,mining
Pressure :
High Pressure,Medium Pressure
Model Number :
4WRZ10 4WRZ16 4WRZ25 4WRZ32 4WRZ52 4WRZ
Temperature of media :
Medium Temperature,High Temperature
MOQ :
1
Delivery Time :
5 work days
Power :
Hydraulic,Hydraulic/Pneumatic
Supply Ability :
1000/week
Material :
Casting,Aluminum Alloy
Packaging Details :
Box/wooden box
Certification :
CE ISO 9001
Place of Origin :
China
Brand Name :
BTPS/Rexroth
Model :
4WRZ10 4WRZ16 4WRZ25 4WRZ32 4WRZ52 4WRZ
Description

Hydraulic Proportional Valves 4WRZ16E150-7X/6EG24N9ETK4/M Proportional Directional 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Wide Application

Features
Pilot-operated, two-stage proportional directional valve with integrated electronics.
Spring-centered spool for stable neutral position.
Wet-pin proportional solenoid with threaded connection, coil replaceable.
Max operating pressure up to 350 bar, flow up to 1600 L/min.
Control signal: ±10 V or 4-20 mA. Compact design, plate mounting per ISO 4401.
4WRZE10 Series 4WRZE10E25-7X/6EG24N9EK31/A1D3V 4WRZE10W8-25-7X/6EG24N9K31/A1V 4WRZE10W8-50-7X/6EG24EK31/A1M 4WRZE10W8-85-7X/6EG24N9K31/A1M 4WRZE10W9-85-7X/6EG24N9ETK31/F1D3M 4WRZE10E85-7X/6EG24K31/A1M
4WRZE16 Series 4WRZE16E150-7X/6EG24K31/A1V 4WRZE16W8-100-7X/6EG24N9K31/A1M 4WRZE16W8-150-7X/6EG24N9ETK4/D3M 4WRZE16W8-200-7X/6EG24N9K4/D3V
4WRZE25 Series 4WRZE25E325-7X/6EG24K31/A1V 4WRZE25W8-220-7X/6EG24N9EK4/M 4WRZE25W8-325-7X/6EG24N9ETK4/D3M 4WRZE25W8-325-7X/6EG24N9K4/D3V
4WRZE32 Series 4WRZE32E520-7X/6EG24K31/A1V 4WRZE32W8-520-7X/6EG24N9K4/D3M 4WRZE32W8-520-7X/6EG24N9ETK4/D3V
Item Specification
Series Version 7X
Sizes NG10, NG16, NG25, NG32, NG52
Max Working Pressure (P/A/B) 350 bar
Max Return Pressure (T Port) 3~150 bar (depends on pilot circuit mode)
Max Rated Flow NG10:85L/min; NG16:150L/min; NG25:325L/min; NG32:520L/min; NG52:2800L/min
Control Signal 0–10V analog voltage / 4–20mA current
Solenoid Voltage 24VDC standard, 12VDC optional
Hysteresis ≤6%
Repeatability ≤3%
Hydraulic Fluid Mineral oil HLP/HL, phosphate ester HFD-R
Fluid Temperature -20℃ ~ +70℃
Viscosity Range 20–380 mm²/s
Ambient Temp -20℃ ~ +60℃
Protection Class IP65 (mated electrical plug)
Installation Position Any angle, horizontal mounting recommended

Hydraulic Proportional Valves 4WRZ16E150-7X/6EG24N9ETK4/M Proportional Directional 4WRZ10 4WRZ16 4WRZ25 4WRZ32 Wide Application
Take 4WRZ16W9-150-7X/6EG24N9ETK4/D3M as example
  1. 4WRZ: Series code (4WRZE = with integrated OBE electronics)
  2. 16: Nominal size NG16
  3. W9: Spool flow symbol
  4. 150: Nominal flow L/min
  5. 7X: Component series version
  6. 6E: 7-pin 6+PE electrical connector
  7. G24: 24VDC solenoid
  8. N9: Standard coil, NBR seal
  9. ET: Internal pilot supply + internal pilot return
  10. K4: Connector form
  11. D3: Without pressure reducing valve
  12. M: NBR standard seal; V=FKM fluorine seal

  • R900966566 | 4WRZ16E150-7X/6EG24N9ETK4/D3M
  • R901188943 | 4WRZE16E150-7X/6EG24N9EK31/A1D3M
  • R900975491 | 4WRZE16E150-7X/6EG24N9ETK31/A1D3M
  • R900727998 | 4WRZE16E150-7X/6EG24N9ETK31/F1D3M
  • R900944187 | 4WRZ16W6-150-7X/6EG24N9K4/D3M
  • R900944188 | 4WRZ16W6-150-7X/6EG24N9ETK4/D3M
  • R900944189 | 4WRZ16W6-150-7X/6EG24N9ETK4/D3V
  • R900944190 | 4WRZ16W6-150-7X/6EG24N9TK4/M
  • R900944191 | 4WRZ16W6-150-7X/6EG24N9TK4/V
  • R900973019 | 4WRZ16W9-150-7X/6EG24N9ETK4/D3M
  • R900969316 | 4WRZ16W9-150-7X/6EG24N9ETK4/D3V
