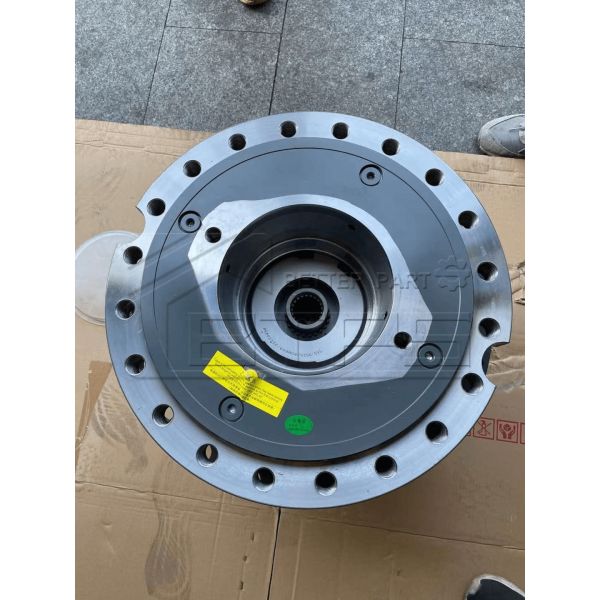

Crane Crawler Wheel Final Drive GFT/CTD/CTU Travel Reduction Planetary Reducer Gearbox Travel Reducer Gears
Crane Crawler Wheel Final Drive GFT/CTD/CTU Travel Reduction Planetary Reducer Gearbox Travel Reducer Gears
Specifications
Payment Terms :
T/T
Material :
Cast Iron
Part number :
GFT13T, GFT17T, GFT24T, GFT36T, GFT50T, GFT60T3, GFT80T, GFT110T, GFT160T
Price :
Negotiated price
Color :
Black or as you need
Model Number :
GFT13T, GFT17T, GFT24T, GFT36T, GFT50T, GFT60T3, GFT80T, GFT110T, GFT160T
Product description :
Travel Reducer
MOQ :
1PCS
Delivery Time :
5 work days
Brand Name :
BTPS
Supply Ability :
1000/month
Model :
GFT13T, GFT17T, GFT24T, GFT36T, GFT50T, GFT60T3, GFT80T, GFT110T, GFT160T
Packaging Details :
standard box
Certification :
CE ISO 9001
Place of Origin :
China
Appliion :
engneering,mining
Description

Product Overview

We supply full-range GFT Series Final Drive Travel Motors, Travel Reducers and matching spare parts, covering mainstream models widely applied in construction machinery, engineering equipment and mobile hydraulic systems. Our product lineup includes GFT9T2, GFT13T2, GFT17T2, GFT40T2, GFT110T3, GFT330T3, GFT80-T3-2348, as well as complete GFT travel reducer motor series: GFT13T, GFT17T, GFT24T, GFT36T, GFT50T, GFT60T3, GFT80T, GFT110T, GFT160T, GFT220T and GFT330T.
Through precise gear tooth profile optimization and high-precision manufacturing process, the reducer realizes efficient power transmission with low power loss. It maintains stable high torque output under heavy-load, impact-load and continuous operation conditions, meeting the high-strength working demands of various large and medium-sized engineering machinery.
Model
Stage
Rated Output Torque (N·m)
Transmission Ratio Range
Matching Motor Series
Core Feature
GFT9T2
2-stage
9000
25.5~48.2
A2FE/A6VE
Mini compact, light load
GFT13T2
2-stage
13000
30.2~55.6
A2FE/A6VE
Small tonnage equipment dedicated
GFT17T2
2-stage
17000
35.8~62.5
A2FE/A6VE
High cost performance
GFT24T3
3-stage
24000
90.1~137.2
A2FE/A6VE
Medium load, wide ratio
GFT26T2
2-stage
26000
42.9~62.0
A2FE/A6VE
Stable torque output
GFT36T3
3-stage
36000
67.0~161.0
A2FE/A6VE
Heavy load universal type
GFT40T2
2-stage
40000
45.3~68.7
A2FE/A6VE
High torque compact type
GFT60T3
3-stage
60000
75.2~185.5
A2FE/A6VE
Medium-large equipment
GFT80T3
3-stage
80000
88.6~210.3
A2FE/A6VE
Heavy-duty enhanced type
GFT110T3
3-stage
110000
95.4~235.8
A2FE/A6VE
Large tonnage machinery
GFT160T3
3-stage
160000
110.2~265.4
A2FE/A6VE
Ultra-high torque
GFT220T3
3-stage
220000
125.7~298.6
A2FE/A6VE
Super heavy load
GFT330T3
3-stage
330000
142.3~320.5
A2FE/A6VE
Ultra-large engineering equipment
Crane Crawler Wheel Final Drive GFT/CTD/CTU Travel Reduction Planetary Reducer Gearbox Travel Reducer Gears

GFT330T3+A6VE240/63W-VAB020A

GFT9T2+A6VE25/63W-VAL020A

GFT13T2+A6VE32/63W-VAL020A

GFT17T2+A6VE40/63W-VAL020A

GFT24T3+A6VE50/63W-VAL020A

GFT26T2+A6VE65/63W-VAL020A

GFT series final drive travel motors and reducers are widely used in excavators, bulldozers, road rollers, crawler cranes, drilling rigs, aerial work platforms and other crawler-type and mobile engineering machinery. They are ideal replacement parts for original Rexroth travel drive systems, widely recognized by global engineering machinery maintenance and supporting markets.
Equipped with optimized two-stage or three-stage planetary gear transmission structure, the whole machine features small overall dimensions and compact layout. It effectively saves installation space for equipment, perfectly fitting integrated and miniaturized engineering equipment design requirements, and solves the installation difficulties of traditional bulky reducers in limited spaces.

Supporting Services

We provide complete original matching spare parts for all GFT series models, including gears, bearings, brake discs, seal kits, shafts and shell accessories. All products undergo strict factory testing to ensure 100% compatibility, stable performance and reliable quality, supporting bulk wholesale and customized supply.
